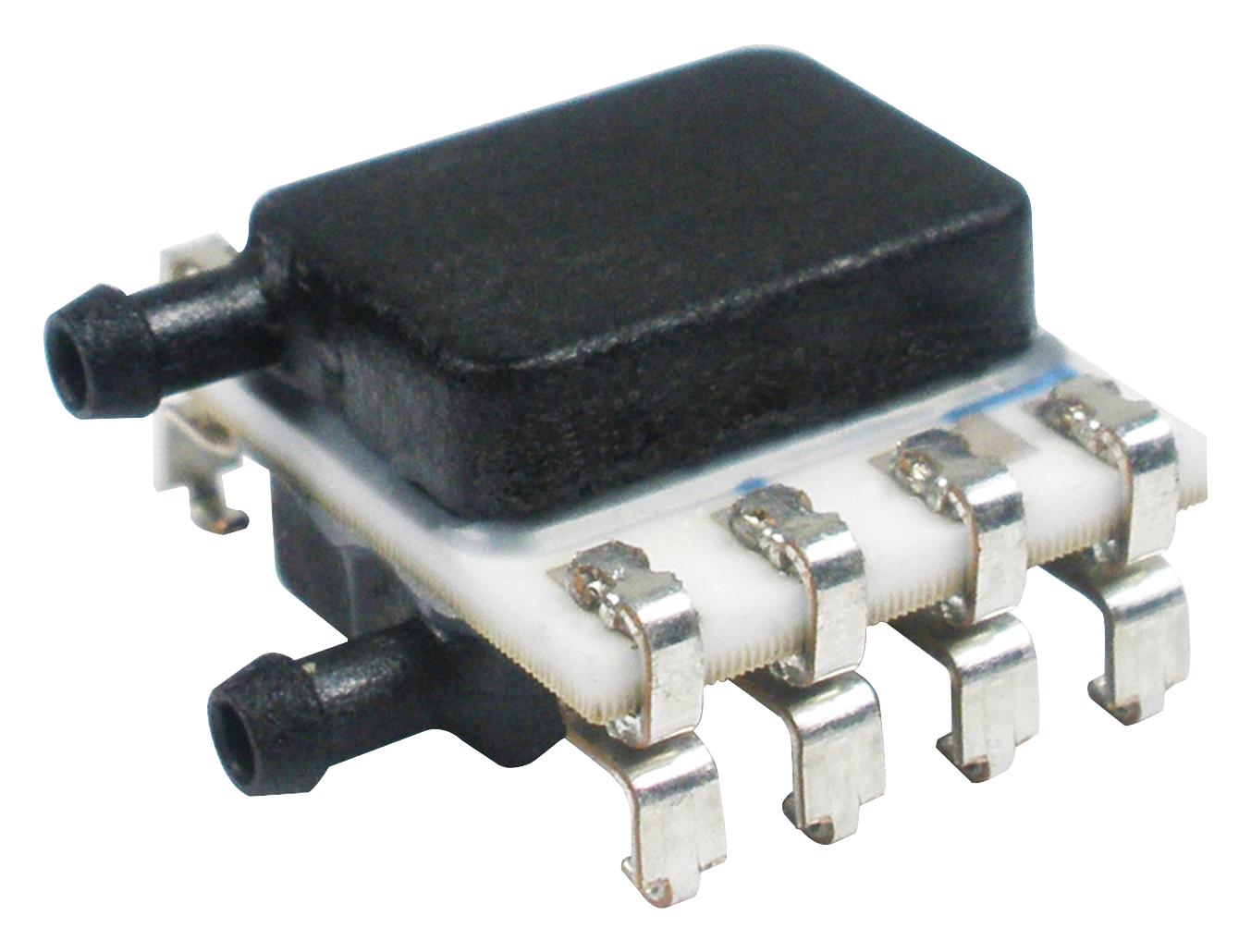

AMPHENOL ALL SENSORS ELVH005DHRRJCN2A4 Pressure Sensor
The ELVH series pressure sensor offers both analog and digital measurement capabilities. It features a differential pressure range of ±5 psi, housed in an HRRJ package. The sensor operates within a temperature range of 0°C to 50°C and is powered by a 3.3V DC supply. It provides an I2C output interface, with a transfer function spanning from 10% to 90% of the supply voltage. This version does not have a Parylene coating, making it suitable for applications requiring precise pressure measurement in controlled environments.
AMPHENOL ALL SENSORS ELVH005DHRRJCN2A4 Pressure Sensor Specifications:
- Pressure Range: ±5 psi (approximately 34.5 kPa)
- Output Interface: I2C
- Supply Voltage: 3.3V DC
- Temperature Range: 0°C to 50°C
- Housing: HRRJ package
- Transfer Function: 10% to 90% of Vsupply
- No Parylene coating
- Measured pressure and temperature values stored every 0.5 ms
- Power Consumption: approximately 45 mA at 3.3V
- Maximum Pressure: 150 psi
- Burst Pressure: 1050 kPa
- Proof Pressure: 410 kPa
- Accuracy: ±1.5% of full span
- Response Time: 0.46 ms
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -40°C to 125°C
- Humidity Limits: 0 to 95% RH
- Device rated for environments up to 245°C
Buy the All Sensors ELVH005D – Reliable Pressure Sensors for Industrial Applications
Experience reliable and precise pressure measurement by purchasing the All Sensors ELVH005D digital and analog sensor online today. Ideal for industrial controls, medical instrumentation, and environmental monitoring, this sensor provides excellent accuracy, fast response, and versatile output options. Its robust HRRJ housing ensures durability in various environments, while the easy-to-connect I2C interface simplifies system integration. With a differential range of ±5 psi and a power supply of 3.3V, this sensor is perfect for high-performance applications needing dependable pressure data.
Order your All Sensors ELVH005D digital differential pressure sensor today and enhance your industrial and medical projects with precise, dependable pressure measurement.
