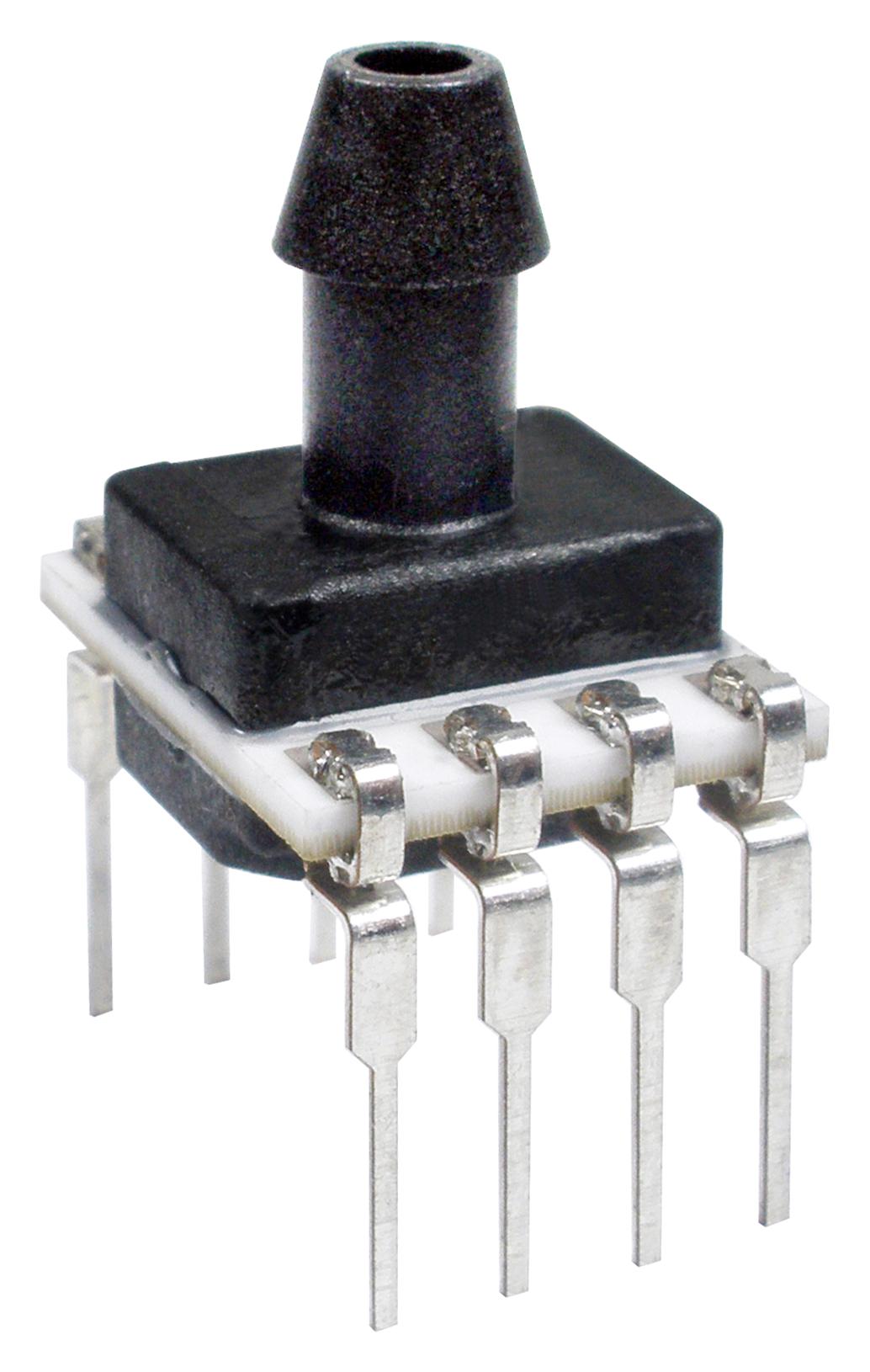

AMPHENOL ALL SENSORS ELVH015GHANDINAA5 Pressure Sensor
The ELVH series is an analogue and digital pressure sensor designed for gauge pressure measurements. It offers a pressure range from 0 to 15 psi and is packaged in a handheld (HAND) configuration. The sensor operates over a compensated temperature range of -20°C to 85°C. It provides an analogue output proportional to the pressure, with a transfer function between 10% to 90% of the supply voltage. The device requires a 5V DC power supply and does not feature Parylene coating for corrosion resistance.
AMPHENOL ALL SENSORS ELVH015GHANDINAA5 Pressure Sensor Specifications:
- Pressure Range: 0 to 15 psi
- Mode: Gage
- Accuracy: ±1.5% of FSS
- Full Scale Output: 10% to 90% of Vsupply
- Supply Voltage: 5V DC
- Temperature Range: -20°C to 85°C
- Output: Analog and digital options
- Package: Handheld (HAND)
- Transfer Function: 10% to 90% of supply voltage
- Burst Pressure: 250 psi
- Proof Pressure: 150 psi
- Material: Not specified, suitable for dry gases
- Ingress Protection: Not specified, no Parylene coating
Buy the All Sensors ELVH015GHAND – Reliable Pressure Sensor for Industrial Applications
Enhance your engineering projects with the reliable ELVH pressure sensor series. Featuring a 0 to 15 psi gauge range, analog and digital outputs, and operation from -20°C to 85°C, this device is perfectly suited for industrial and medical applications. Powered by 5V DC, it offers high accuracy and stability, with options for Parylene coating for harsh environments. Its compact handheld design ensures easy integration and precise measurement for various process controls and instrumentation needs.
Order your All Sensors ELVH015GHAND pressure sensor today and enhance your projects with dependable measurement performance in compact handheld packages.
