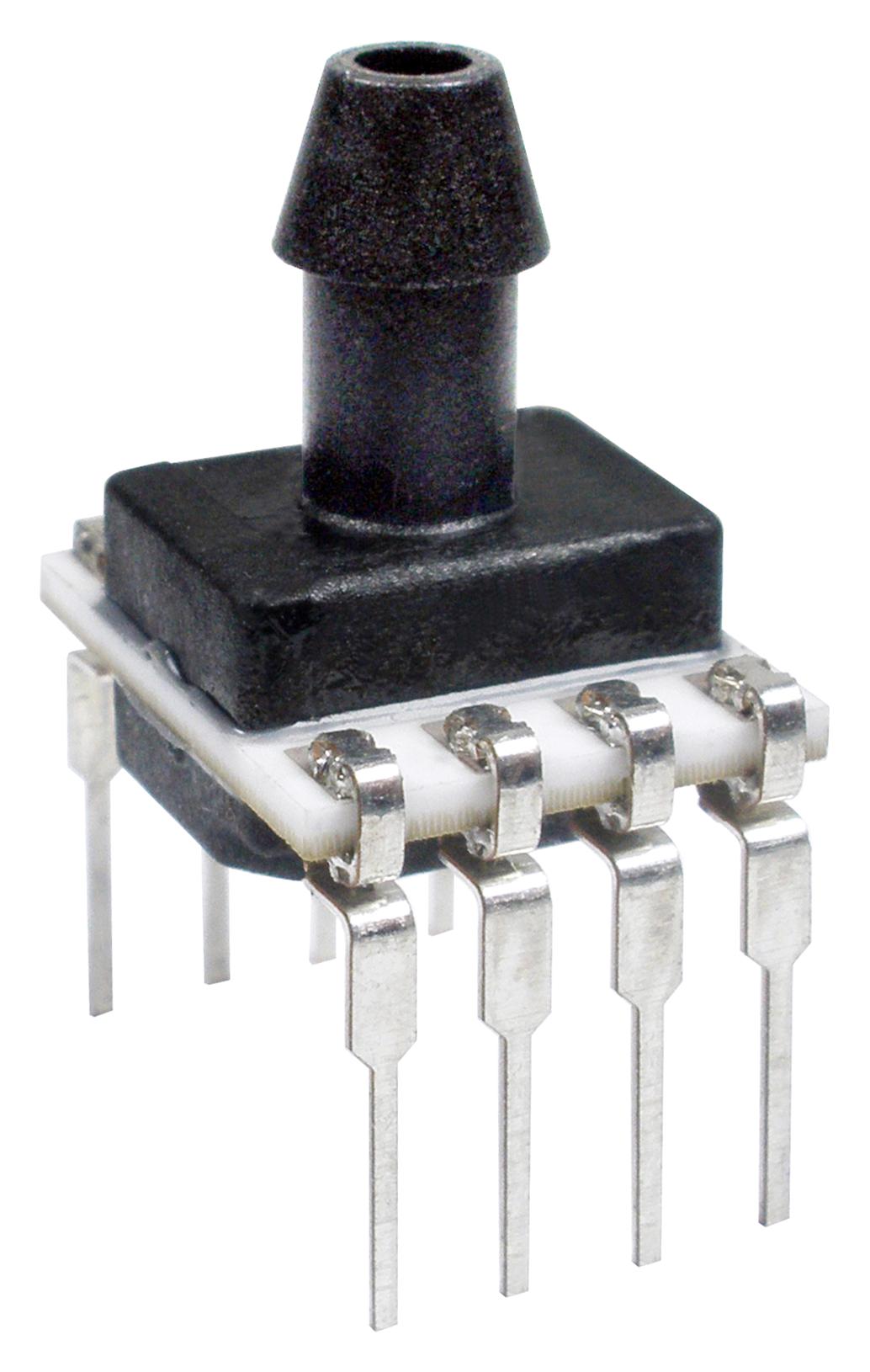

AMPHENOL ALL SENSORS ELVH060GHANDCNAA5 Pressure Sensor
The ELVH series is an analog and digital pressure sensor with a gauge pressure range from 0 to 60 psi. It features a HAND package design, operates within a compensated temperature range of 0°C to 50°C, and provides an analog output signal. The sensor's transfer function is between 10% to 90% of the supply voltage, which is 5 VDC. It does not have a Parylene coating for environmental protection.
AMPHENOL ALL SENSORS ELVH060GHANDCNAA5 Pressure Sensor Specifications:
- Pressure Range: 0 to 60 psi (0 to 414 kPa)
- Package: HAND (non-port, flat design)
- Operating Temperature Range: 0°C to 50°C
- Supply Voltage: 5 VDC
- Output: Analog, 10% to 90% of Vsupply transfer function
- Protection: No Parylene coating
- Burst Pressure: 250 psi
- Proof Pressure: 150 psi
- Response Time: 2 ms
- Current Consumption: 45 mA
- Accuracy: ±0.25%FS
- Total Error Band: 0.5% of reading
- Pressure Mode: Gage
- Inlet/Outlet Ports: None (flat, no ports)
Buy the Buy All Sensors ELVH Series Pressure Part Number ELVH060GHANDCNAA5 Online
Purchase the All Sensors ELVH Series Pressure Sensor online today to enhance your industrial and environmental measurements. With a gauge range up to 60 psi, this durable sensor features a non-port HAND package design, operates efficiently within 0°C to 50°C, and offers a linear analog output. Designed for precise and stable readings, it’s perfect for various control systems, HVAC, and environmental monitoring. Order now to ensure reliable performance and quick delivery for your project needs.
Get All Sensors ELVH060GHANDCNAA5 today—compact gauge pressure sensor with linear output, ideal for industrial control and environmental applications.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS ELVH060GHANDCNAA5?
You can click on the BUY or RFQ button to purchase ELVH060GHANDCNAA5 from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part ELVH060GHANDCNAA5?
You can download the ELVH060GHANDCNAA5 datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of ELVH060GHANDCNAA5?
AMPHENOL ALL SENSORS
