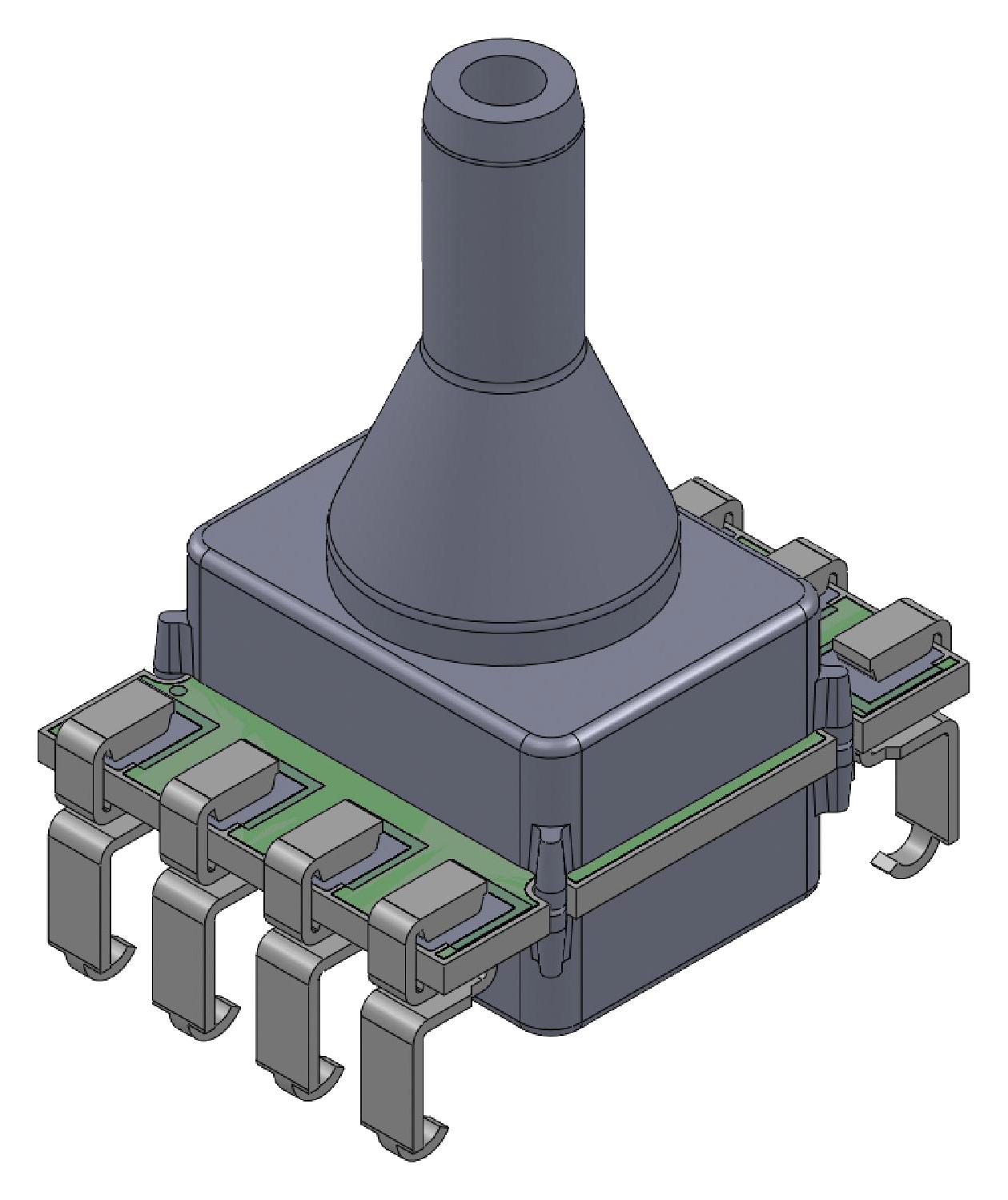

AMPHENOL ALL SENSORS ELVH100GHKNJCN2A4 Pressure Sensor

Name: ELVH100GHKNJCN2A4 - Electronic Component
Brand: AMPHENOL ALL SENSORS
SKU: ELVH100GHKNJCN2A4
Price: 9.04 USD
Availability: InStock
Rating: 5.0 (1 reviews)

The ELVH series is an analog and digital pressure sensor with a gauge pressure range from 0 to 100 psi. It comes in an HKNJ package and features an I2C output. The sensor operates within a compensated temperature range of 0°C to 50°C and requires a 3.3V DC supply voltage. It offers a transfer function between 10% and 90% of the supply voltage and does not have a Parylene coating.

All Sensors ELVH100GHKNJCN2A4 – Reliable Pressure Sensor for Industrial Applications

View ELVH100GHKNJCN2A4Datasheet [pdf]

AMPHENOL ALL SENSORS ELVH100GHKNJCN2A4 Pressure Sensor Specifications:

Pressure Range: 0 to 100 psi
Pressure Mode: Gage
Package: HKNJ (Tapered Side Port)
Output Interface: I2C
Supply Voltage: 3.3V DC
Temperature Range: 0°C to 50°C (compensated)
Transfer Function: 10% to 90% of Vsupply
Parylene Coating: Not available for this pressure range
Burst Pressure: 1724 kPa (250 psi)
Proof Pressure: 1034 kPa (150 psi)
Port Type: Tapered Side Port
Dimensions: Refer to manufacturer diagrams
Operating Humidity: 0-95% RH (non-condensing)
Media Compatibility: Dry gases, non-corrosive fluids

Buy the All Sensors ELVH100GHKNJCN2A4 – Reliable Pressure Sensor for Industrial Applications

Get the high-precision pressure sensor suitable for industrial, medical, and environmental monitoring applications. The ELVH series offers reliable gauge measurement with I2C digital output, operating efficiently within a 0-50°C temperature range. Featuring a robust HKNJ package and a 3.3V supply, this sensor is designed for accurate, long-term stability without parylene coating. Perfect for controlling and monitoring dry gases and non-corrosive fluids, order online now to enhance your measurement systems with this trusted component.

Order your All Sensors ELVH pressure sensor with gauge range 0-100 psi today and give your projects the dependable quality they deserve.
