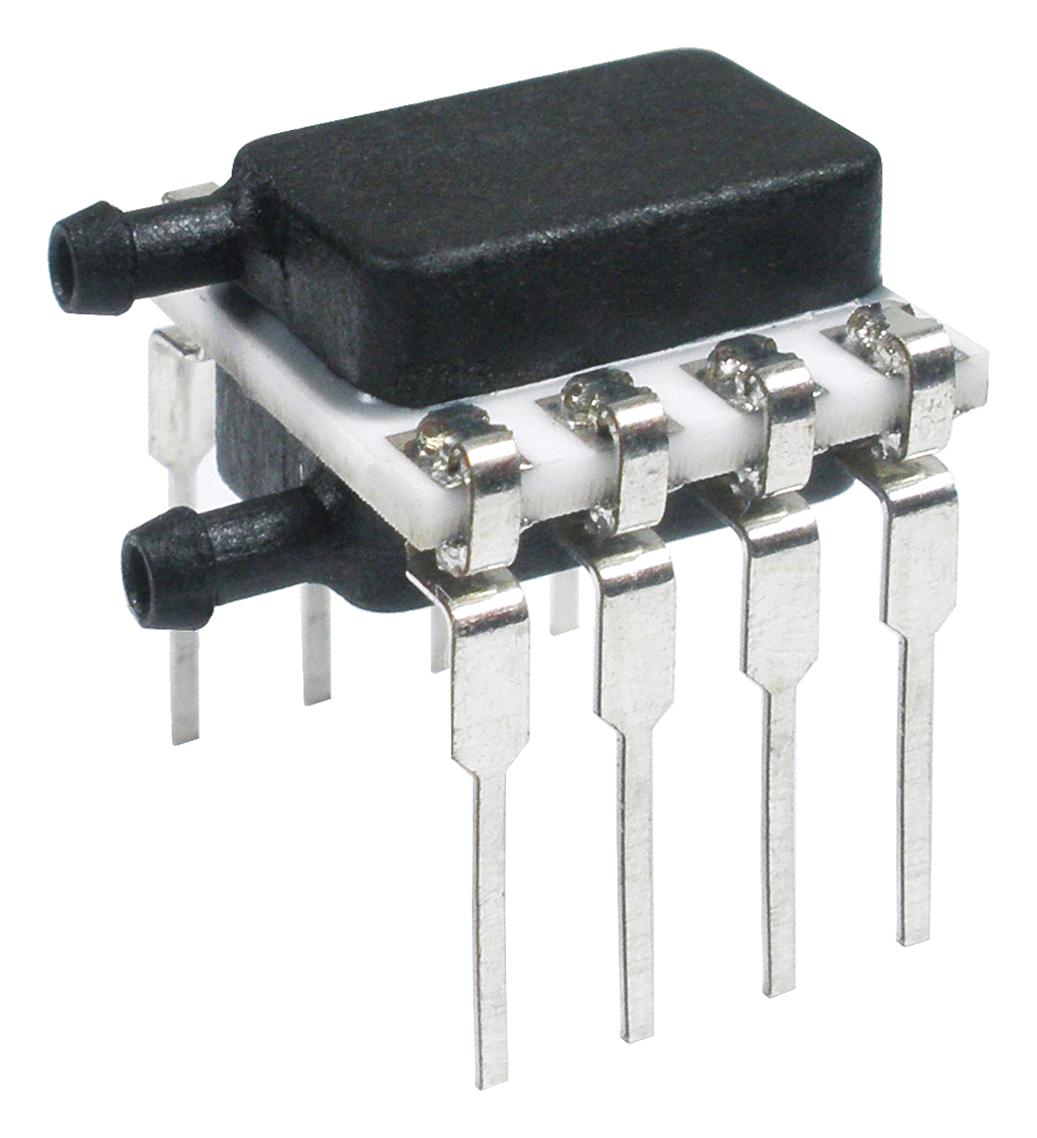

AMPHENOL ALL SENSORS ELVHM250DHRRDCPSA5 Pressure Sensor
The ELVH series is an analog and digital pressure sensor designed for differential pressure measurements. It features a measurement range of ±250 mbar and comes in an HRRD package. The sensor is Parylene-coated for added protection and operates across a temperature range of 0°C to 50°C. It provides SPI output and maintains a transfer function between 10% and 90% of the supply voltage. The device requires a 5 V DC power supply.
AMPHENOL ALL SENSORS ELVHM250DHRRDCPSA5 Pressure Sensor Specifications:
- Pressure Range: ±250 mbar
- Package: HRRD (DIP with dual same side barbed ports)
- Coating: Parylene (available on ranges of 10 inH2O and above)
- Temperature Range: 0°C to 50°C
- Supply Voltage: 5 V DC
- Output: SPI digital, 10 to 90% transfer function
- Operating Humidity: 0 to 95% RH non-condensing
- Burst Pressure: 1034 kPa
- Proof Pressure: 1034 kPa
- Maximum Device Temperature: 245°C
Buy the Buy All Sensors ELVHM250D Pressure Sensor Part Number ELVHM250DHRRDCPSA5 Online
Order the All Sensors ELVHM250D pressure sensor online today and benefit from high accuracy, robust Parylene coating, and versatile digital and analog outputs. This sensor is excellent for applications requiring precise differential pressure measurements in harsh environments. It features a compact HRRD package, wide operating temperature of 0°C to 50°C, and a supply voltage of 5 V. Easy integration via SPI interface makes it ideal for medical devices, industrial controls, and environmental monitoring systems. Purchase now for fast delivery and trusted quality.
Buy All Sensors ELVHM250D pressure sensor now and experience unmatched reliability and performance for your industrial and medical applications.
