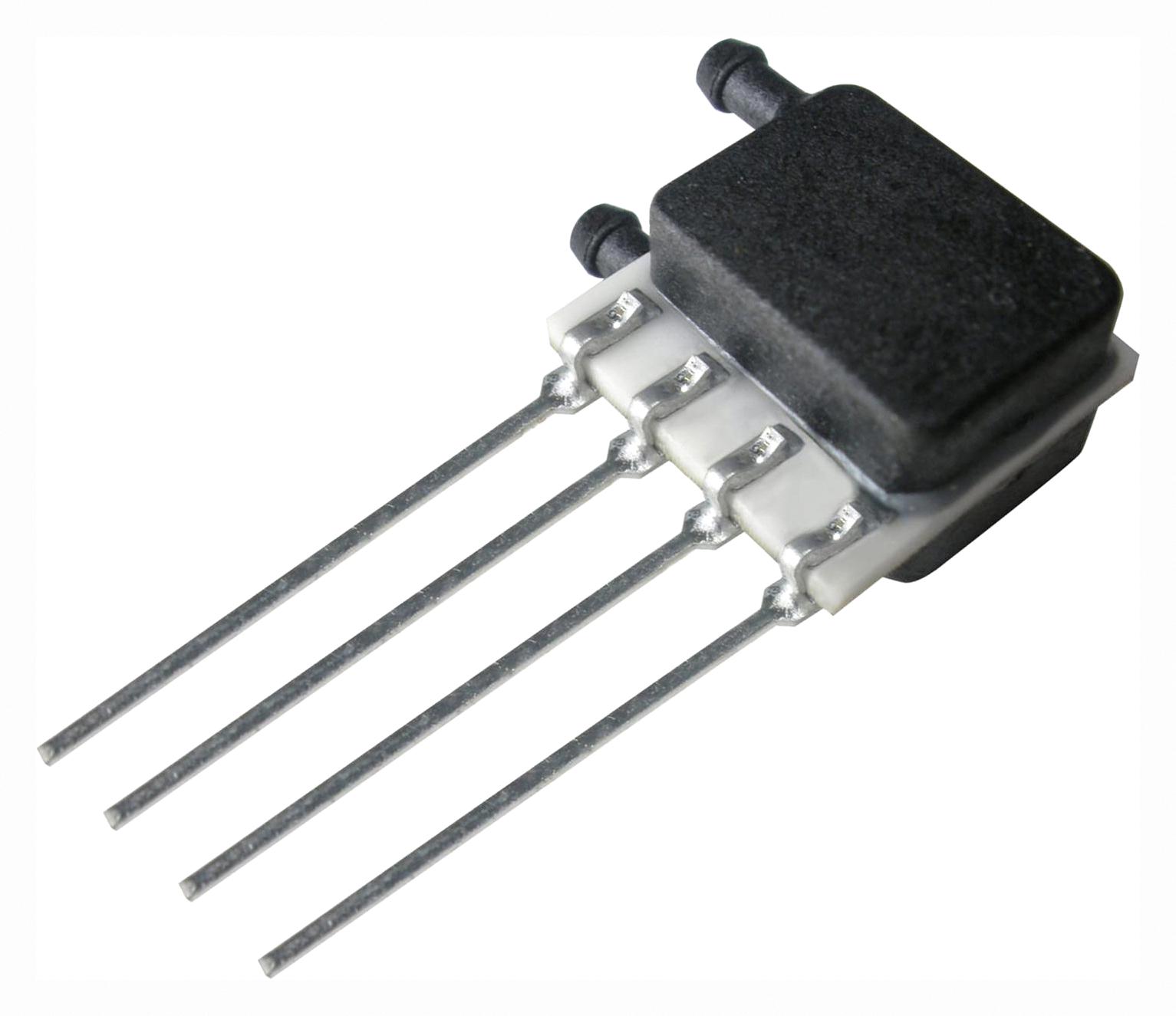

AMPHENOL ALL SENSORS ELVHM250GHRRHIN2A4 Pressure Sensor
The ELVH series is an analog and digital pressure sensor designed for precise measurement of gauge pressure up to 250 mbar. It features the HRRH package and operates within a compensated temperature range of -20°C to 85°C. The sensor does not have a Parylene coating and provides an I2C output signal. Its transfer function varies from 10% to 90% of the supply voltage, with a supply voltage of 3.3 V DC.
AMPHENOL ALL SENSORS ELVHM250GHRRHIN2A4 Pressure Sensor Specifications:
- Pressure Range: 0 to 250 mbarg
- Pressure Mode: Gage
- Output Interface: I2C
- Supply Voltage: 3.3V DC
- Transfer Function: 10% to 90% of Vsupply
- Operating Temperature Range: -20°C to 85°C
- Package Type: HRRH (DIP)
- Maximum Burst Pressure: 1724 kPa
- Maximum Proof Pressure: 1034 kPa
- Temperature Compensation: Yes
- No Parylene Coating
- Dimensions: Compact DIP package with pin spacing suitable for PCB mounting
- Humidity Limits: 0 to 95% RH
- Material: Plastic and metal components with electronic ASIC
- Calibration: Calibrated and compensated for accuracy
- Application: Precision pressure measurement in industrial, medical, and environmental systems
- Certifications: RoHS compliant
Buy the All Sensors Series ELVH Pressure Sensor: ELVHM250GHRRHIN2A4
Order the All Sensors ELVHM250GHRRHIN2A4 pressure sensor online today to ensure precise gauge pressure measurement up to 250 mbar. This high-performance sensor offers I2C digital output, robust package, and reliable operation over a wide temperature range of -20°C to 85°C. Designed for medical, industrial, and environmental applications, it provides accurate results with fast response time. Secure your supply of top-grade sensors online and boost your system’s efficiency with flexible integration options. Purchase now for consistent quality and performance.
Buy All Sensors ELVH pressure sensor model ELVHM250GHRRHIN2A4 now and experience reliable, high-accuracy gauge pressure measurements in your system.
