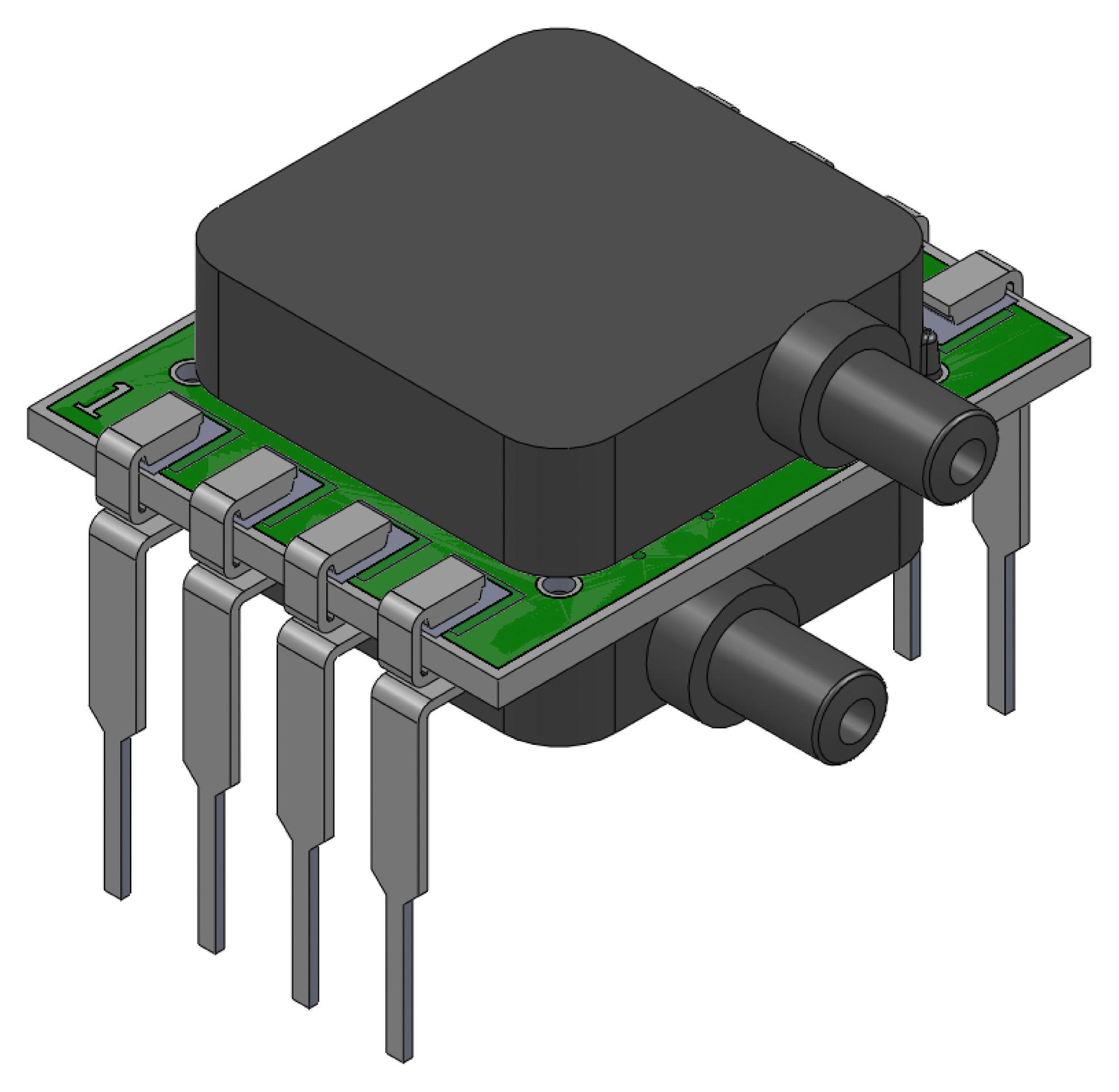

AMPHENOL ALL SENSORS ELVRL01DF1RDCNA3F Low Pressure Sensor
The ELVR Series Mini Analog and Digital Low Pressure Sensors Offer high accuracy and stability for measuring low pressures in air and dry gases. Utilizing All Sensors’ CoBeam Technology, these sensors feature reduced package stress susceptibility and improved long-term performance. They provide both analog (5V/3V supply) and digital output options, including I2C and SPI interfaces, with rapid update rates of 0.5ms or 1ms. Available in miniature SIP and DIP packages, they are ideal for medical, industrial, and automation applications, offering calibrated, compensated signals over a wide temperature range with optional moisture-protective coating.
AMPHENOL ALL SENSORS ELVRL01DF1RDCNA3F Low Pressure Sensor Specifications:
- Pressure Ranges: 1 to 30 inH2O (25 to 750 mbar)
- Supply Voltage: 3V (2.7-3.3 V) or 5V (4.5-5.5 V)
- Output: Analog (0.25-4.25 V) or Digital (I2C & SPI)
- Maximum Proof Pressure: 250-803 inH2O depending on model
- Burst Pressure: 750-2000 inH2O
- Temperature Range: -25°C to 85°C (commercial), 10°C to 85°C (industrial)
- Humidity Limits: 0-95% RH non-condensing
- Response Delay: 0.5 ms (Fast), 1 ms (High Res)
- Linearity & Hysteresis Error: ±0.25% FSS
- Current Consumption: 5 mA (typical)
- Package: SIP, DIP, SMT options
- Calibration & Compensation: Factory calibrated with optional moisture coating
- Output Resolution: 12 or 14-bit for digital models
- Long-term stability: ±15 mV (analog)
- Protection: Optional Parylene coating for moisture/hard media
Buy the All Sensors ELVRL01DF1 – Reliable Low Pressure Sensors for Industrial Applications
Enhance your systems with the reliable ELVR low pressure sensors designed for accurate measurement in air and dry gases. These compact sensors feature advanced CoBeam technology, offering both analog and digital outputs with quick response times of 0.5 ms and 1 ms. Available in various package types, they are suitable for industrial, medical, and automation applications, providing factory-calibrated, temperature compensated signals, optional moisture protection, and long-term stability for demanding environments.
Order your All Sensors ELVRL01DF1 low pressure sensor today and ensure precise, reliable measurements in your industrial or medical projects with fast, stable outputs.
