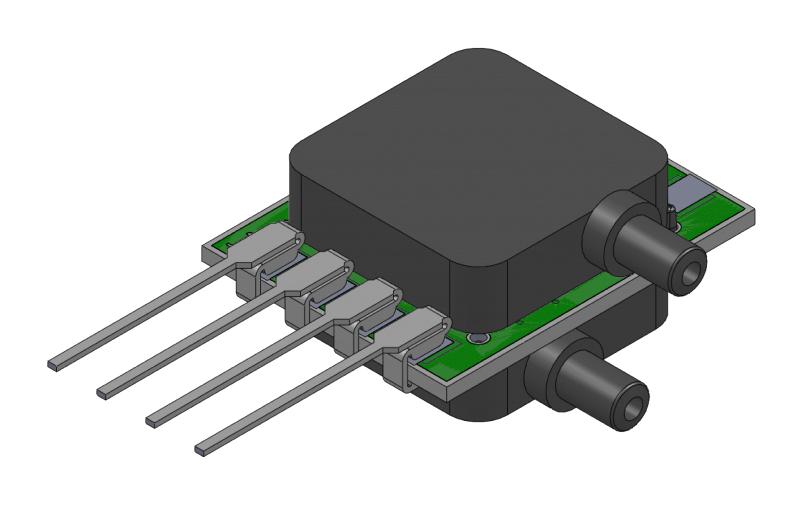

AMPHENOL ALL SENSORS ELVRL01DF1RTCNA5F Low Pressure Sensor
The ELVR series mini pressure sensors from All Sensors provide high accuracy and stability for measuring low pressure in air and dry gases. Utilizing CoBeam technology, these sensors feature analog and digital outputs with rapid update rates, suitable for medical and industrial applications. They are compatible with 3V and 5V supplies, offering calibrated, compensated signals over a wide temperature range. Optional parylene coating enhances moisture and harsh media resistance. Compact SIP and DIP packages allow flexible PCB mounting, making these sensors ideal for space-constrained environments requiring reliable pressure measurement.
AMPHENOL ALL SENSORS ELVRL01DF1RTCNA5F Low Pressure Sensor Specifications:
- Pressure Range: 1 to 30 inH2O
- Supply Voltage: 3V (2.7-3.3V) or 5V (4.5-5.5V)
- Analog Output: 0.25-4.25 V at full scale
- Digital Output: 14-bit resolution via I2C or SPI
- Response Time: 0.5-1 ms
- Operating Temp: -25°C to 85°C
- Storage Temp: -40°C to 125°C
- Humidity: 0-95% RH non-condensing
- Proof Pressure: 250-803 inH2O depending on model
- Burst Pressure: 750-2000 inH2O depending on model
- Package Options: SIP, DIP, SMT, barbed or non-barbed
- Enclosure Material: Silicon, optional parylene coating for moisture resistance
- Calibration: Calibrated and temperature compensated
- Features: CoBeam dual-die technology, high stability, rapid update, easy controller interface
Buy the All Sensors Series ELVR Pressure Sensor: ELVRL01DF1RTCNA5F
Get your All Sensors ELVR low pressure sensor today and enhance your measurement accuracy in air and dry gases. With its compact design, rapid update rate, and versatile analog and digital outputs, this sensor is perfect for medical and industrial applications. Choose the right pressure range, supply voltage, and package options to suit your needs. Easy to integrate into your PCB with calibrated and temperature compensated signals, the ELVR Series ensures reliable performance and long-term stability in demanding environments.
Order your All Sensors Series ELVRL01DF1RTCNA5F today and equip your projects with dependable low pressure sensing technology.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS ELVRL01DF1RTCNA5F?
You can click on the BUY or RFQ button to purchase ELVRL01DF1RTCNA5F from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part ELVRL01DF1RTCNA5F?
You can download the ELVRL01DF1RTCNA5F datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of ELVRL01DF1RTCNA5F?
AMPHENOL ALL SENSORS
