A Premier B2B Part Search

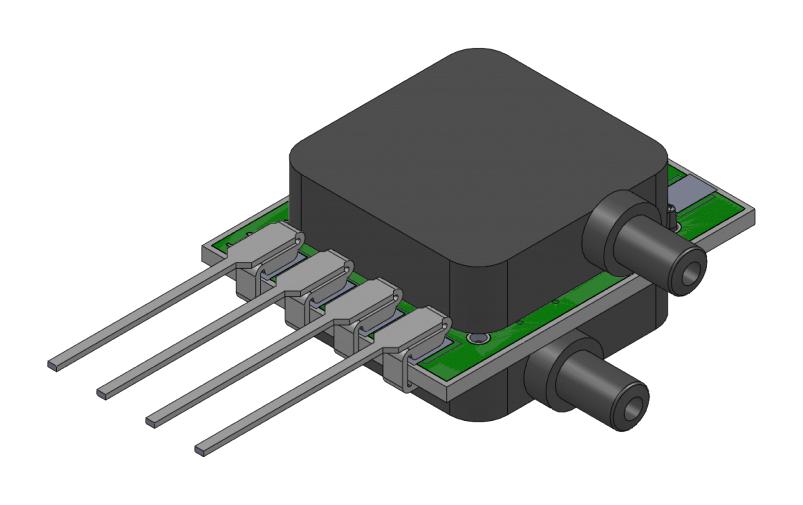

AMPHENOL ALL SENSORS ELVRL01GFNRTCNA5F Low Pressure Sensor

Name: ELVRL01GFNRTCNA5F - Electronic Component
Brand: AMPHENOL ALL SENSORS
SKU: ELVRL01GFNRTCNA5F
Price: 16.64 USD
Availability: InStock
Rating: 5.0 (1 reviews)

The ELVR series combines advanced analog and digital low pressure sensing technology with dual-die CoBeam™ design for enhanced long-term stability and sensitivity. Suitable for measuring pressure ranges from 1 to 30 inH2O (25 to 750 mbar), these sensors operate on 3V or 5V supplies, and communicate via analog output or digital I2C and SPI protocols. Compact SIP and DIP packages ensure space-saving PCB integration. Designed for dry, non-corrosive gases like air, they include options for moisture-resistant parylene coating, making them ideal for medical, industrial, and automation applications requiring precision and reliable pressure monitoring.

Buy All Sensors ELVRL01GFNRTCNA5F Low Pressure Sensor Part Number ELVRL01GFNRTCNA5F Online

View ELVRL01GFNRTCNA5FDatasheet [pdf]

AMPHENOL ALL SENSORS ELVRL01GFNRTCNA5F Low Pressure Sensor Specifications:

Pressure Range: 1 to 30 inH2O (25 to 750 mbar)
Supply Voltage: 3V (2.7-3.3 V), 5V (4.5-5.5 V)
Output Interface: Analog (5V, 3V), I2C, SPI digital
Temperature Range: -25°C to 85°C (industrial), 0°C to 70°C (commercial)
Proof Pressure: Up to 250 inH2O (6250 mbar)
Burst Pressure: 750 to 2000 inH2O (18750 to 50000 mbar)
Linearity and Hysteresis: 0.05% FSS
Response Delay: 0.5 ms (F option), 1 ms (H option)
A/D Resolution: 12-bit (Fast mode), 14-bit (High resolution)
Current Consumption: ≤5 mA
Operating Humidity: 0-95% RH non-condensing
Package Options: SIP, DIP, SMT with moisture-resistant options
Environmental Ratings: Commercial, Industrial temperature ranges
Pressure Calibration: Calibrated and compensated for temperature variations
Protection: Optional parylene coating for moisture/harsh media
Certifications: UL, CE compliant

Buy the Buy All Sensors ELVRL01GFNRTCNA5F Low Pressure Sensor Part Number ELVRL01GFNRTCNA5F Online

Secure your ELVRL01GFNRTCNA5F low pressure sensor today online. Perfect for medical, industrial, or automation applications, it offers high precision, stable analog and digital outputs, and moisture-resistant options. Designed for dry gases like air, this compact sensor ensures dependable performance with fast response times. Easily integrate into your PCB with multiple package choices and enjoy accurate calibration over temperature variations. Shop now for immediate delivery and elevate your pressure monitoring solutions with cutting-edge sensor technology.

Order your All Sensors ELVRL01GFNRTCNA5F low pressure sensor today and improve your project’s accuracy with reliable analog and digital pressure measurement.
