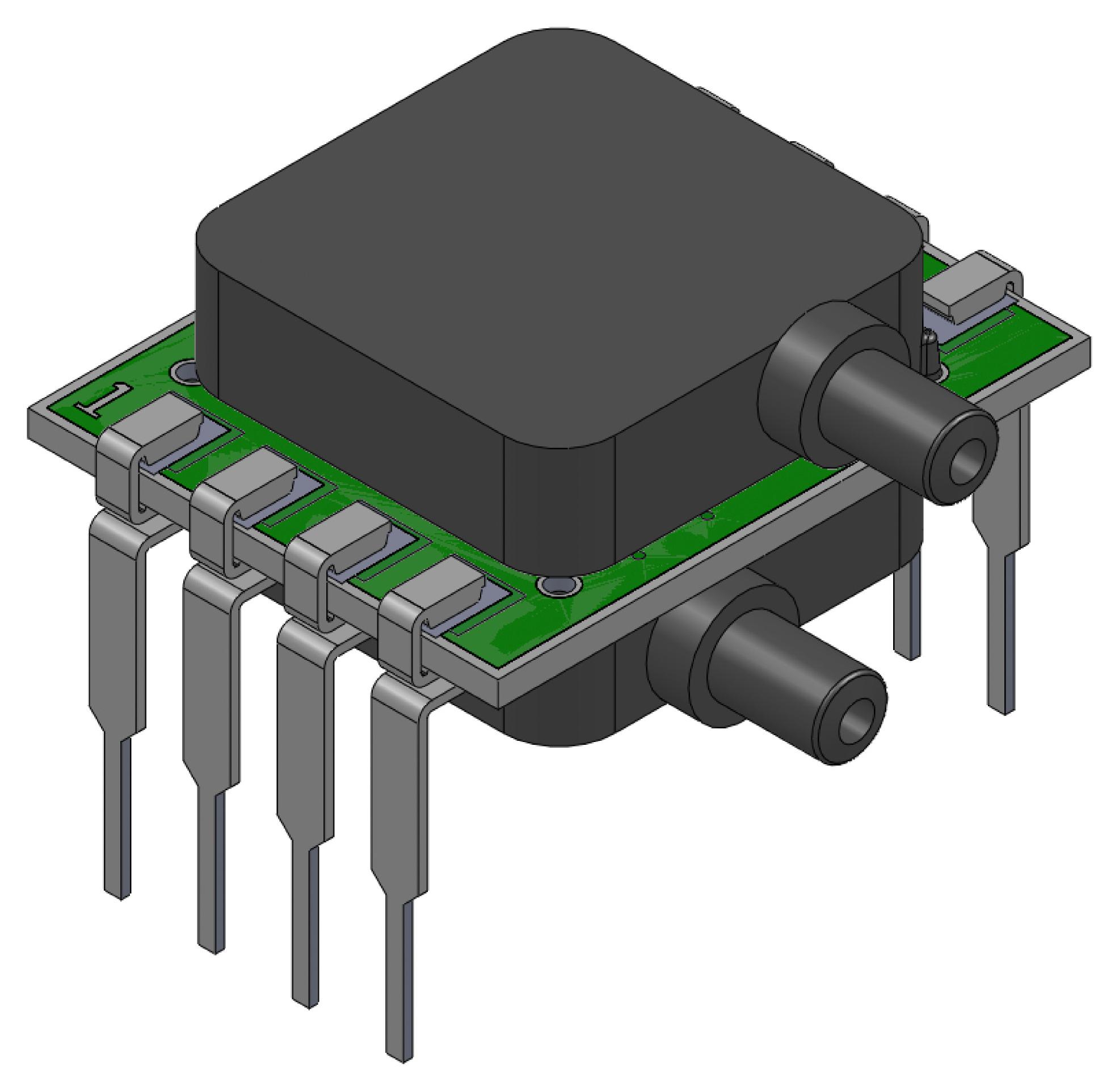

AMPHENOL ALL SENSORS ELVRL05DF1RDCNA3F Low Pressure Sensor
The ELVR Series Pressure Sensors are compact, highly accurate devices utilizing All Sensors’ CoBeam Technology for enhanced stability and sensitivity. These dual-die sensors communicate directly with microcontrollers via analog, I2C, or SPI interfaces, providing rapid updates at 0.5 ms or 1 ms. They are suitable for measuring low-pressure ranges from 1 to 30 inH2O with excellent linearity, long-term stability, and temperature compensation. Available in various package configurations, including non-barbed, barbed, SIP, and DIP, with optional parylene moisture barriers for harsh environments. Ideal for medical, industrial, and environmental applications requiring reliable, precise pressure readings in non-corrosive gases.
AMPHENOL ALL SENSORS ELVRL05DF1RDCNA3F Low Pressure Sensor Specifications:
- Pressure Ranges: 1 to 30 inH2O (25 to 75 mbar)
- Supply Voltage: 3V (2.7–3.3 V) or 5V (4.5–5.5 V)
- Analog Output: 0.25 to 4.25 V (FSO)
- Digital Output: I2C and SPI protocols supported
- Temperature Range: -25°C to 85°C (commercial), -40°C to 125°C (storage)
- Maximum Burst Pressure: up to 2000 inH2O depending on model
- Humidity Limits: 0–95% RH (non-condensing)
- Environmental Protection: Optional parylene coating for moisture and harsh media
- Package Options: Non-barbed, barbed, SIP, DIP, SMT assembly
- Response Delay: 0.5 ms (F option), 1 ms (H option)
- Linearity and Hysteresis: ±0.05%FSS
- Long-term Drift: < ±15 mv over one year
- Current Consumption: approx. 5 mA
- Response Time: within 0.5 ms or 1 ms depending on mode
- Pressure Accuracy: high precision with temperature compensation
- Certifications: UL, RoHS (examples, check specific models)
Buy the All Sensors Series ELVR Pressure Sensor: ELVRL05DF1RDCNA3F
Discover the reliable ELVR Series Low Pressure Sensor for precise measurements in medical, industrial, and environmental applications. Featuring dual-die CoBeam Technology, these sensors offer enhanced stability, sensitivity, and long-term accuracy. With support for analog, I2C, and SPI communication protocols, they deliver rapid updates at 0.5 ms or 1 ms, ensuring real-time pressure monitoring. Their robust packages include options for moisture protection, making them suitable for harsh environments. Optimize your projects with these dependable, easy-to-integrate sensors available for online purchase today.
Order your All Sensors Series ELVRL05DF1RDCNA3F today and get dependable, high-accuracy pressure sensing for critical low-pressure applications.
