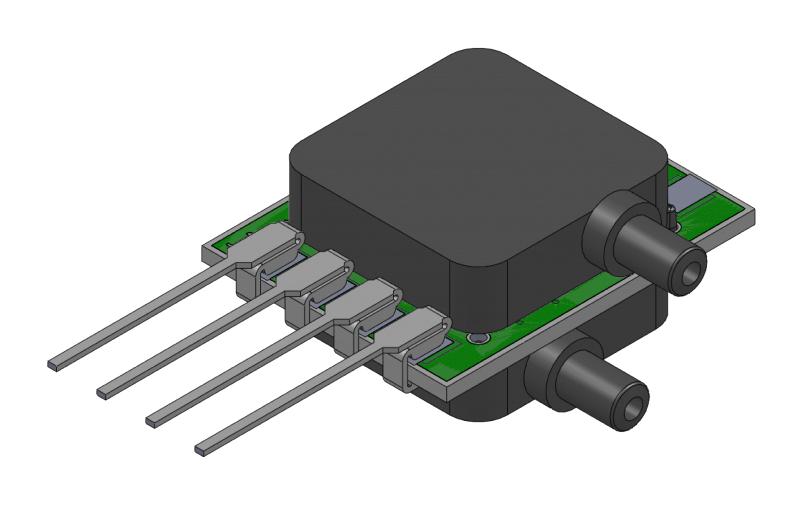

AMPHENOL ALL SENSORS ELVRL05DF1RTCNA5F Low Pressure Sensor
The ELVR series is a mini pressure sensor offering both analog and digital outputs, suitable for monitoring low pressure ranges from 1 to 30 inH2O. Featuring CoBeam Technology, it ensures superior stability and sensitivity, with calibration and compensation for accurate readings over wide temperature ranges. Available in multiple package options, including SIP and DIP, these sensors operate at 3V or 5V supply voltages and are designed for non-corrosive, dry gases like air. Optional protective parylene coating enhances moisture and harsh media resistance for pressure ranges of 10 inH2O and above.
AMPHENOL ALL SENSORS ELVRL05DF1RTCNA5F Low Pressure Sensor Specifications:
- Pressure Ranges: 1 to 30 inH2O (2.5 to 75 mbar)
- Supply Voltage: 3V (2.7-3.3V), 5V (4.5-5.5V)
- Output: Analog (Voltage) and Digital (I2C, SPI)
- Analog Full Scale Span: approximately 4V at full scale
- Digital Output Resolution: 12 or 14 bits (depending on configuration)
- Operating Temperature: 0°C to 70°C (Commercial), -25°C to 85°C (Industrial)
- Storage Temperature: -40°C to 125°C
- Humidity: 0-95% RH (non-condensing)
- Pressure Accuracy: within ±0.25% FSS
- Response Delay: 0.5 ms (F mode), 1 ms (H mode)
- Dimensions: see package drawings for SIP, DIP configurations
- Certification: Suitable for industrial and medical applications, optional moisture protection with parylene coating
Buy the Buy All Sensors ELVR Series Pressure Sensor Part Number ELVRL05DF1RTCNA5F Online
Order the All Sensors ELVR series pressure sensor ELVRL05DF1RTCNA5F online today to benefit from precise pressure measurement, robust design, and flexible integration options. This mini sensor offers both analog and digital outputs, enabling easy connection with microcontrollers via I2C or SPI interfaces. Its broad operating range, stability, and optional moisture-resistant parylene coating make it ideal for industrial, medical, and environmental applications. Enhance your project with reliable, high-performance low pressure sensing technology available at your fingertips.
Buy All Sensors ELVR series pressure sensor ELVRL05DF1RTCNA5F now and experience unmatched stability, high accuracy, and versatile digital and analog output options for your low-pressure measurement needs.
