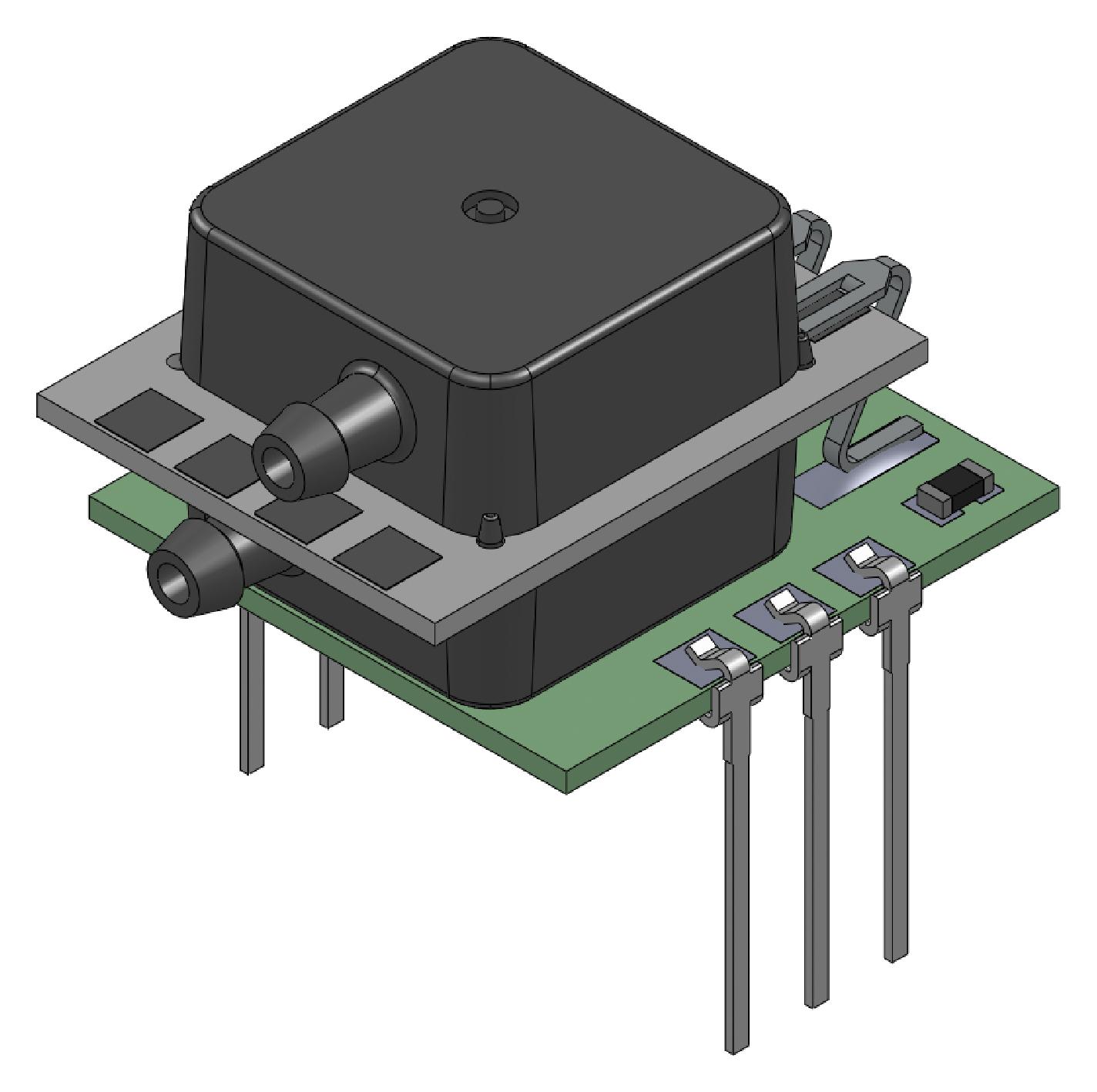

AMPHENOL ALL SENSORS MLDX015ADX01N Low Pressure Sensor
The MLDX series sensors are based on All Sensors’ advanced CoBeam2 technology, offering calibrated and compensated output for stable readings across a wide temperature range. Designed for non-corrosive gases like air, these low-pressure sensors feature optional moisture protection via Parylene coating, low power consumption, high position sensitivity, and excellent linearity. Available in multiple pressure ranges from 5 inH2O to 100 PSI, ideal for HVAC, industrial, environmental controls, and portable equipment, ensuring long-term stability and reliable performance in demanding applications.
AMPHENOL ALL SENSORS MLDX015ADX01N Low Pressure Sensor Specifications:
- Pressure ranges: 5 inH2O, 10 inH2O, 1, 5, 15, 30, 100 PSI
- Power Consumption: Low
- Temperature Range: Operating -40°C to 85°C, Storage -40°C to 125°C
- Maximum Supply Voltage: +20 Vdc
- Output: Millivolt, calibrated for stability
- Material: Diaphragm based on All Sensors’ CoBeam2 technology
- Environmental protection option: Parylene coating available (not below 10 inH2O ranges)
- Proof pressure: up to 200 kPa, Burst pressure: up to 300 kPa, Nominal Span: various based on pressure range
- Lead Temperature (Soldering): Max 270°C for 2-4 seconds
- Device temperature max: 245°C
- Humidity: 0-95% RH (non-condensing)
Buy the Buy All Sensors MLDX Series Pressure Part Number MLDX015ADX01N Online
Experience the accuracy and stability of the Low Pressure Sensor from All Sensors’ MLDX Series. Designed for non-corrosive gases, it offers calibrated millivolt output, low power, and optional moisture protection. Ideal for HVAC, industrial, and portable applications, ensuring long-term reliability and precise readings across a wide temperature range. Get this high-performance sensor online today to enhance your control systems with trustworthy and consistent pressure measurements.
Buy All Sensors MLDX015ADX01N now and enjoy reliable low-pressure measurement with enhanced stability and optional moisture protection.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS MLDX015ADX01N?
You can click on the BUY or RFQ button to purchase MLDX015ADX01N from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part MLDX015ADX01N?
You can download the MLDX015ADX01N datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of MLDX015ADX01N?
AMPHENOL ALL SENSORS
