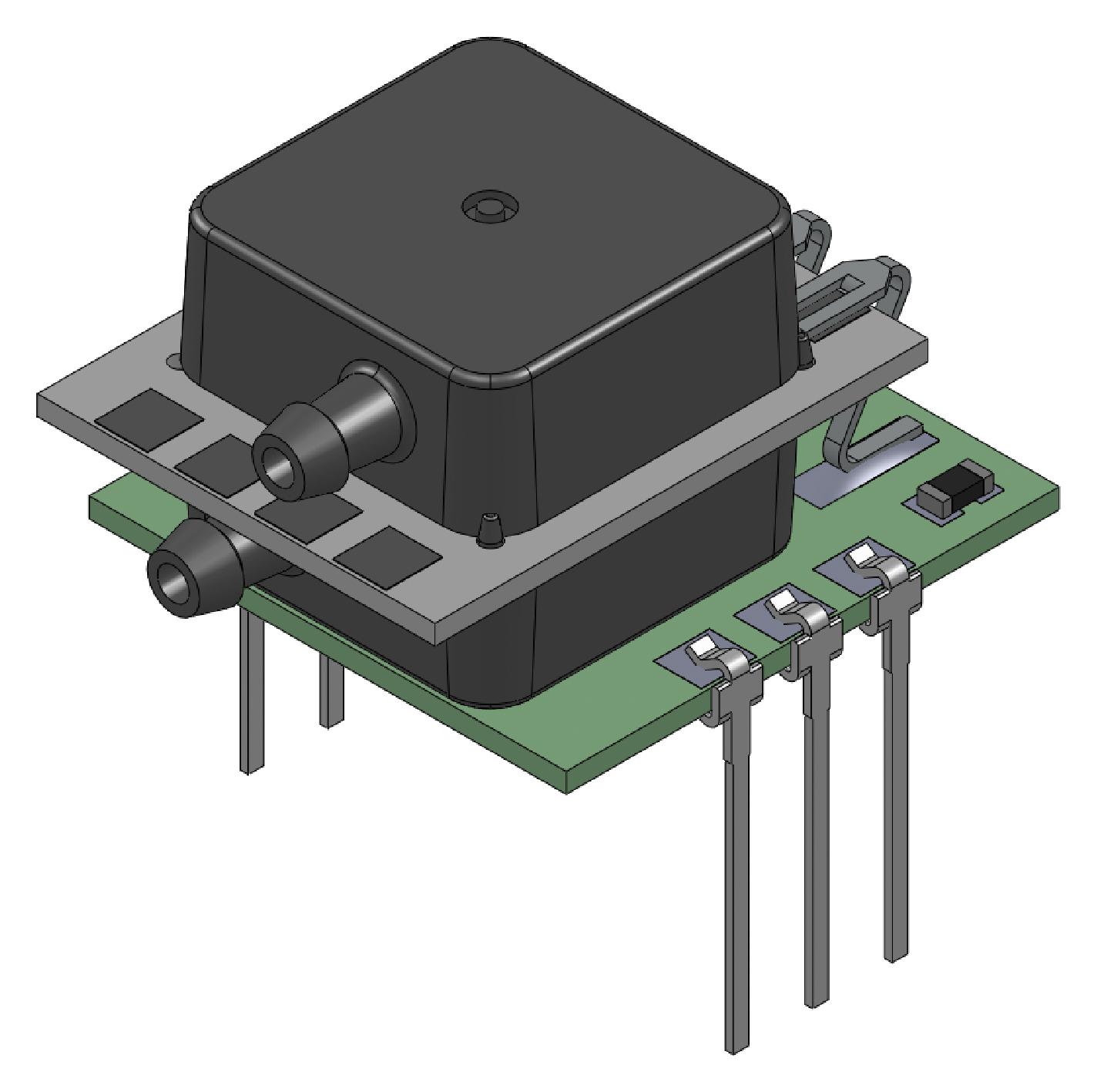

AMPHENOL ALL SENSORS MLDX015DDX01N Pressure Sensor
The MLDX series sensors are based on All Sensors' CoBeam2 technology, offering accurate, stable readings over a wide temperature range. Designed for non-corrosive, non-ionic gases like air, these calibrated sensors feature optional moisture protection via Parylene coating. Available in pressure ranges such as 0 to 5 inH2O and 0 to 100 PSI, they are ideal for HVAC, industrial, environmental controls, and portable equipment. The sensors boast low power consumption, excellent position sensitivity, minimal warm-up shift, and enhanced linearity, making them suitable for demanding applications requiring reliable pressure measurement.
AMPHENOL ALL SENSORS MLDX015DDX01N Pressure Sensor Specifications:
- Pressure Ranges: 0 to 5 inH2O, 0 to 100 PSI
- Proof Pressure: 200 kPa (29 psi) for low ranges, up to 690 kPa (100 psi) for high ranges
- Burst Pressure: 300 kPa to 1,034 kPa depending on model
- Supply Voltage: +20 VDC maximum
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -40°C to 125°C
- Humidity Limits: 0 to 95% RH (non-condensing)
- Media Compatibility: Dry air or inert non-conductive gases
- Perfect for harsh environments with optional Parylene coating for moisture resistance
- Low power consumption, excellent linearity, and fast response times
- Designed with All Sensors' CoBeam2 technology for improved long-term stability
- Package options include standard and Parylene-coated variants
- Soldering: Max lead temperature 270°C for 2-4 seconds
Buy the All Sensors Series MLDX Pressure Sensor: MLDX015DDX01N
Order the All Sensors MLDX015DDX01N pressure sensor online today and benefit from superior accuracy, stability, and durability. Perfect for HVAC, industrial, and environmental controls, this sensor offers low power consumption and optional moisture protection with Parylene coating. Its wide pressure range up to 100 PSI, advanced CoBeam2 technology, and robust construction ensure long-lasting performance even in harsh environments. Shop now to enhance your system's reliability and achieve precise pressure measurements with ease and confidence.
Buy All Sensors MLDX015DDX01N pressure sensor now and experience unmatched reliability and performance for your precise pressure measurement needs.
