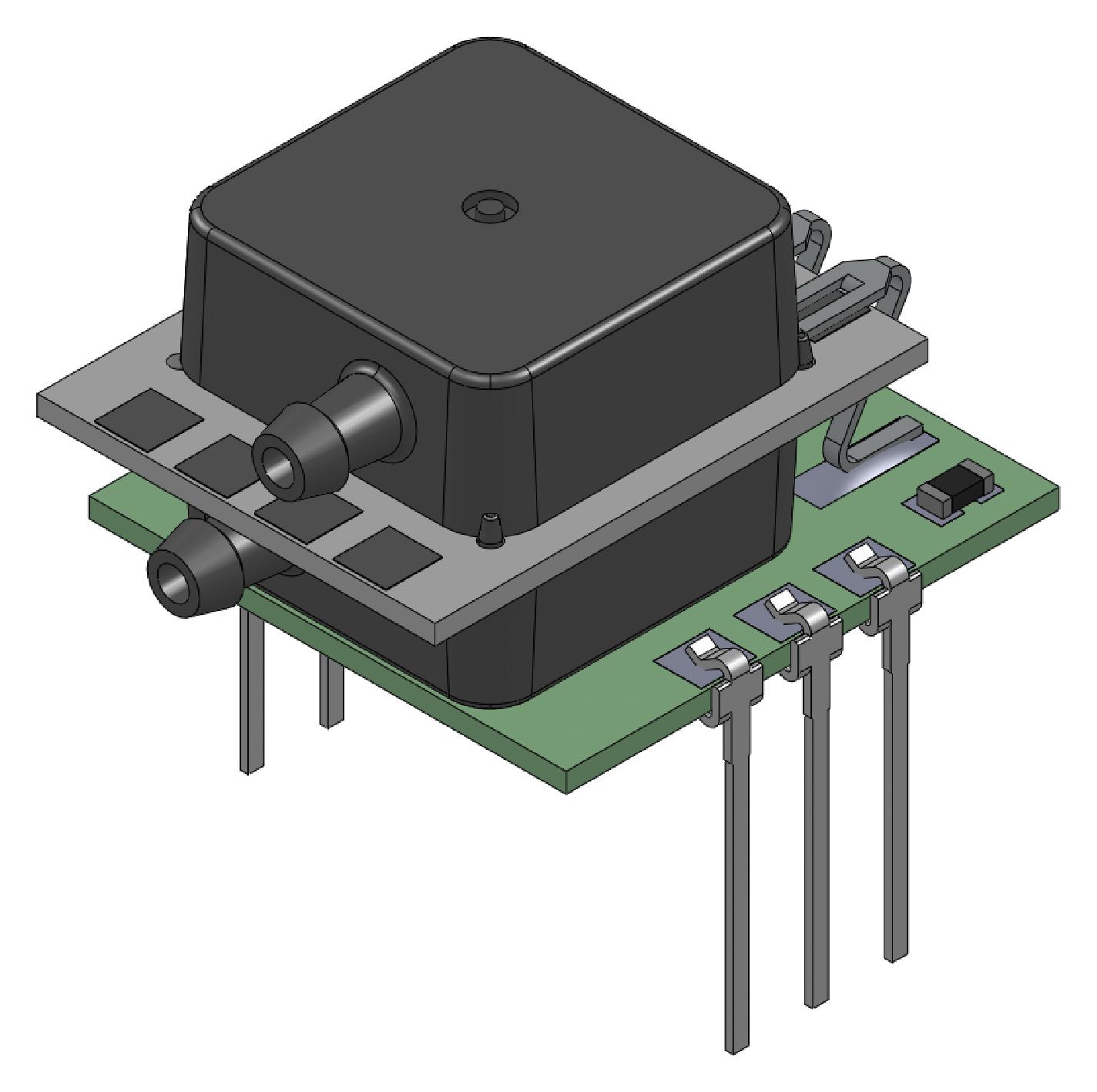

AMPHENOL ALL SENSORS MLDX100DDX01N Low Pressure Sensor
The MLDX series sensors are based on All Sensors’ CoBeam2 technology, offering accurate, stable low pressure measurements for air and dry gases. Available in ranges from 0 to 15 psia, 30 psia, and 100 psia, these sensors feature low power consumption, excellent position sensitivity, and minimal warm-up shift. Optional parylene coating enhances moisture and harsh media resistance. Ideal for HVAC, environmental, industrial controls, portable equipment, and sensor applications, the series provides reliable, calibrated, and compensated outputs across a wide temperature range from -40°C to 85°C, ensuring long-term stability and high performance in demanding environments.
AMPHENOL ALL SENSORS MLDX100DDX01N Low Pressure Sensor Specifications:
- Measurement Range: 0 to 15 psia, 30 psia, 100 psia
- Output: Millivolt, calibrated and compensated
- Power Supply: 20 VDC maximum
- Temperature Range (Operating): -40°C to 85°C
- Temperature Range (Storage): -40°C to 125°C
- Humidity Limits: 0 to 95% RH (non-condensing)
- Media Compatibility: Dry air or inert non-conductive gases
- Proof Pressure: 30 to 690 kPa depending on model
- Burst Pressure: Varies per pressure range; up to 690 kPa
- Dimensions: Package length approximately 0.89 inches, width and height according to model
- Soldering Temp: Max 270°C for 2-4 seconds
- Protection: Optional parylene coating for moisture resistance
- Environmental: Resistant to harsh media with in-house application of coating
- Application: Suitable for HVAC, environmental controls, industrial and portable sensors
Buy the All Sensors 100D – Reliable Low Pressure Sensors for Industrial Applications
Take advantage of online purchasing for the All Sensors Low Pressure Sensor series designed for industrial, HVAC, and environmental applications. These calibrated sensors provide stable millivolt outputs with optional moisture protection, ensuring reliable performance under demanding conditions. With features like low power consumption, excellent sensitivity, and optional parylene coating, they are perfect for portable, industrial, and control system integrations. Buy online today to ensure fast delivery and effortless integration into your projects with confidence in long-term accuracy and stability.
Get All Sensors 100D today—built for precision and long-lasting durability in low pressure measurement environments.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS MLDX100DDX01N?
You can click on the BUY or RFQ button to purchase MLDX100DDX01N from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part MLDX100DDX01N?
You can download the MLDX100DDX01N datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of MLDX100DDX01N?
AMPHENOL ALL SENSORS
