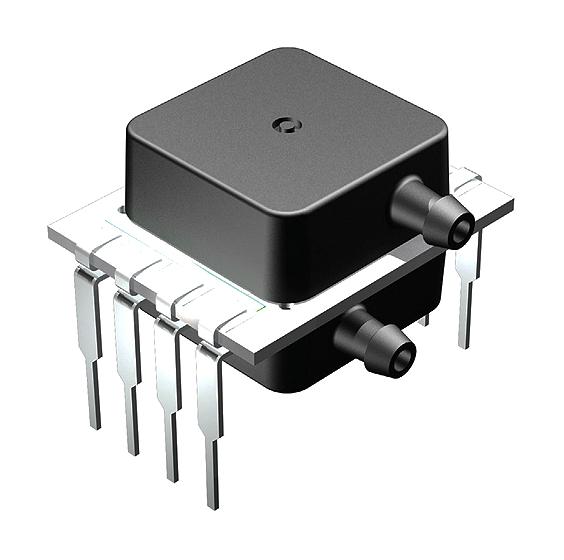

AMPHENOL ALL SENSORS MLV015AE1BDN Low Voltage Pressure Sensor
The MLV Series Low Voltage Pressure Sensors utilize advanced CoBeam Technology to deliver high output signals at low voltages, ensuring excellent stability and sensitivity. Suitable for air, dry gases, and non-corrosive fluids, these sensors feature customizable pressure ranges from 1 inH20 to 30 inH20 and 5 to 150 PSI, with optional Parylene coating for harsh environments. Built for medical, HVAC, industrial, and portable applications, they offer accurate measurements, low power consumption, and long-term stability in compact packages.
AMPHENOL ALL SENSORS MLV015AE1BDN Low Voltage Pressure Sensor Specifications:
- Pressure Ranges: 1 to 30 inH20, 5 to 150 PSI
- Operation Voltage: 5V DC
- Output Signal: High output, ratiometric
- Sensitivity: 7 mv for 1 inH20, 375 mV for 150 PSI
- Temperature Range: 0°C to 50°C (operating), -25°C to 85°C (storage)
- Proof Pressure: 100 inH20 to 200 PSI depending on model
- Burst Pressure: 300 inH20 to 250 PSI depending on model
- Linearity: 0.10% to 0.75% full scale
- Warm-up Shift: <20 μV for low ranges, ~25 μV for high ranges
- Output Resistance: 2-3 kohm
- Port Options: Single or dual port configurations, various cut sizes
- Environmental: Up to 95% RH, protected with optional Parylene coating
- Lead Temperature for Soldering: 270°C (2-4 seconds)
Buy the All Sensors MLV015AE1BD – Reliable Pressure Sensors for Industrial Applications
Order the All Sensors low voltage pressure sensor today to ensure reliable, precise measurements across medical, HVAC, and industrial sectors. Designed to operate at 5 volts DC, this sensor provides a high output signal with excellent stability, sensitivity, and long-term accuracy. Its compact design, optional Parylene coating, and broad pressure range options make it ideal for various applications including portable equipment and environmental controls. Purchase now for quick delivery and technical support, optimizing your project's reliability and performance.
Get All Sensors MLV015AE1BD today—built for precision, durability, and versatile pressure measurement in demanding environments.
