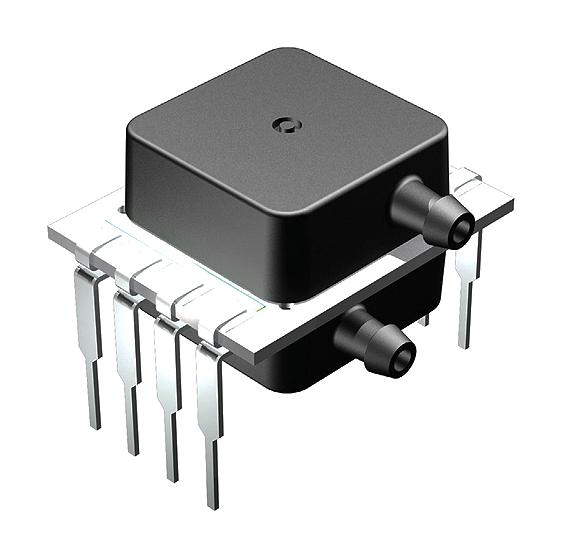

AMPHENOL ALL SENSORS MLV015DE1BDN Low Voltage Pressure Sensor
The MLV Series Low Voltage Pressure Sensors utilize CoBeam™ Technology to provide high output signals at low operating voltages, ensuring excellent long-term stability and position sensitivity. Designed for non-corrosive gases such as air and dry gases, these calibrated sensors offer accurate pressure measurement across a wide temperature range. Available with optional protective Parylene coating, they support various pressure ranges from 1 inH20 to 150 PSI. Their compact design with multiple port configurations makes them ideal for medical breathing, environmental controls, HVAC, and industrial applications, all while maintaining low power consumption and enhanced linearity.
AMPHENOL ALL SENSORS MLV015DE1BDN Low Voltage Pressure Sensor Specifications:
- Pressure Ranges: 1 inH20 to 150 PSI
- Operation Voltage: 5V DC
- Output Signal: Up to 375 mV depending on range
- Temperature Range: 0°C to 50°C (operating), -25°C to 85°C (storage)
- Proof Pressure: Up to 200 PSI
- Burst Pressure: Up to 250 PSI
- Output Resistance: Approximately 2-3 kohm
- Linearity Error: 0.10% to 0.50% FSS
- Hysteresis Error: 0.20% to 0.30% FSS
- Port Options: Single or dual port configurations with barb or cut fittings
- Protection: Optional Parylene coating for moisture/harsh media resistance
- Certifications: UL Listed, CSA Certified
- Connection: E2ND, E1NJ, EGBD, EGBJ, EGNJ packages
- Dimensions: Varies based on package, approx. 0.39-0.5 inches wide
Buy the All Sensors 15DE1BD Low Voltage Pressure Sensor – Reliable Pressure Measurement for Industrial Applications
Purchase the All Sensors Series15DE1BD Low Voltage Pressure Sensor online now to ensure precise pressure measurement across a wide range of industrial and medical applications. Designed for non-corrosive gases, these sensors feature high output, low power consumption, and optional moisture protection. Compact and versatile, they are ideal for HVAC, medical breathing, and environmental controls. With proven long-term stability, calibration accuracy, and robust construction, ordering online guarantees quick delivery and reliable performance for your health and industrial systems.
Order your All Sensors Series15DE1BD low voltage pressure sensor today and enhance your projects with dependable accuracy and stability in pressure measurement.
