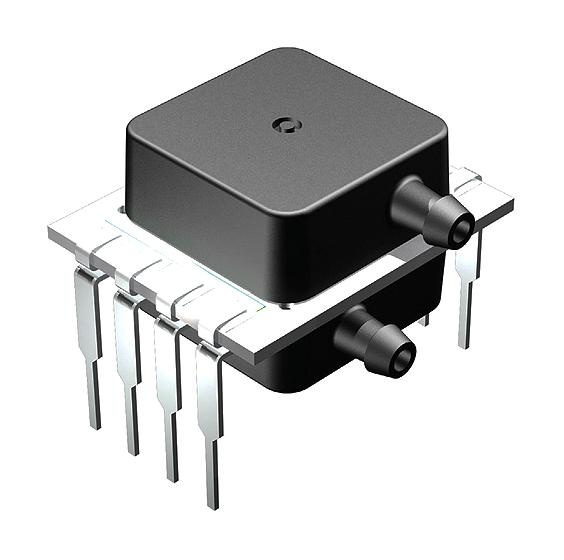

AMPHENOL ALL SENSORS MLV030DE1BDN Low Voltage Pressure Sensor
The MLV Series Low Voltage Pressure Sensors utilize CoBeam™ technology to provide high output signals at low operating voltages, ensuring excellent long-term stability and position sensitivity. Designed for accurate measurement over wide temperature ranges, these sensors are suitable for applications like medical breathing, HVAC, environmental controls, and industrial systems. They feature optional Parylene coating for moisture and harsh media protection, with pressure ranges from 1 to 30 inH20 and 5 to 150 PSI. The compact design offers reliable performance in various environments with low warm-up shift and linearity enhancements.
AMPHENOL ALL SENSORS MLV030DE1BDN Low Voltage Pressure Sensor Specifications:
- Pressure Ranges: +1 to 30 inH20, 5 to 150 PSI
- Power Supply Voltage: 5V DC
- Output Voltage: 7mV to 37.88mV depending on pressure range
- Temperature Range: 0°C to 50°C (operating), 40°C to 125°C (storage)
- Pressure Accuracy: Linearity error within 0.10 to 0.75 %FSS
- Offset Temperature Shift: +250 to +200 uV
- Front to Back Linearity: 0.75%FSS
- Output Resistance: 2 to 3 kohm
- Materials: All Sensors CoBeam™ Technology, optional Parylene coating
- Environmental Limits: Up to 95% RH humidity, no port hole devices available
- Dimensions: Variable depending on package, typically compact for OEM use
- Certifications: UL Listed, CSA Certified
- Lead Soldering Temperature: 270°C for 2-4 seconds
Buy the Buy All Sensors MLV Series Low Voltage Pressure Sensors Part Number MLV030DE1BDN Online
Experience reliable and accurate pressure measurement with the All Sensors MLV Series low voltage sensors. Featuring CoBeam™ technology for enhanced stability, these sensors operate at 5V DC with high output levels. They are ideal for medical breathing, HVAC, industrial controls, and portable equipment. Their compact design, optional moisture-protective Parylene coating, and wide pressure ranges from 1 to 30 inH20 and 5 to 150 PSI make them versatile for various applications. Secure your sensor online today for performance you can trust.
Order your All Sensors MLV030DE1BDN low voltage pressure sensor today and ensure precise measurement for your medical, HVAC, or industrial projects.
