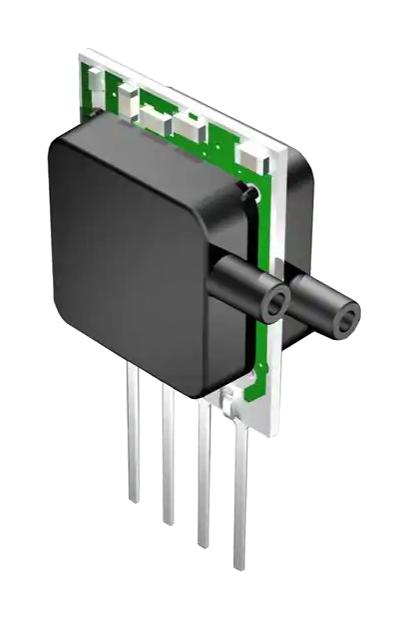

AMPHENOL ALL SENSORS MLVL01DE1NSN Low Voltage Pressure Sensor
The MLV Series Low Voltage Pressure Sensors utilize All Sensors' CoBeam Technology to deliver high output signals at low operating voltages, ensuring excellent long-term stability and position sensitivity. Designed for accurate pressure measurement in applications like medical breathing, environmental controls, HVAC, and industrial controls, these sensors operate over a wide temperature range of -25°C to 85°C and feature optional Parylene coating for moisture protection. With calibrated and compensated outputs, they maintain reliable performance with minimal warm-up drift and linearity deviations, suitable for dry gases and non-corrosive fluids.
AMPHENOL ALL SENSORS MLVL01DE1NSN Low Voltage Pressure Sensor Specifications:
- Pressure Ranges: +1 to 30 inH20, 5 to 150 PSI
- Operation Voltage: 5V DC
- Output Signal: 7mV to 375mV depending on model
- Temperature Range: -25°C to 85°C operating, -40°C to 125°C storage
- Linearity: 0.10% to 0.30%FSS
- Hysteresis Error: 0.20% to 0.50%FSS
- Offset Temperature Shift: +200 to +250 uV
- Span Temperature Shift: Up to +1.0%FSS
- Output Resistance: 2-3 kohm
- Package Options: E2ND, E1NJ, E2NS, EGBD, EGNL, E1BD, ENN, E1BS
- Certifications: UL Listed, CSA Certified
- Environmental: Humidity limits up to 95% RH, lead soldering temp 270°C
- Weight: Ranges from approximately 9.2g to 168g depending on package
Buy the All Sensors Series MLV Pressure: Low Voltage Pressure Sensor Part Number MLVL01DE1NSN
Experience reliable and accurate pressure measurement with the All Sensors MLV Series Low Voltage Pressure Sensors. Designed for medical, HVAC, industrial, and portable equipment, these sensors feature CoBeam technology for high output at low voltage, ensuring stable long-term performance. They operate over wide temperature ranges and have optional moisture-protective coatings. Ideal for non-corrosive gases, their compact design and calibrated outputs make installation and integration straightforward. Order your MLV pressure sensor online today for quality and precision in your critical applications.
Get All Sensors MLVL01DE1NSN today—built for precision and long-lasting durability in pressure sensing applications.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS MLVL01DE1NSN?
You can click on the BUY or RFQ button to purchase MLVL01DE1NSN from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part MLVL01DE1NSN?
You can download the MLVL01DE1NSN datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of MLVL01DE1NSN?
AMPHENOL ALL SENSORS
