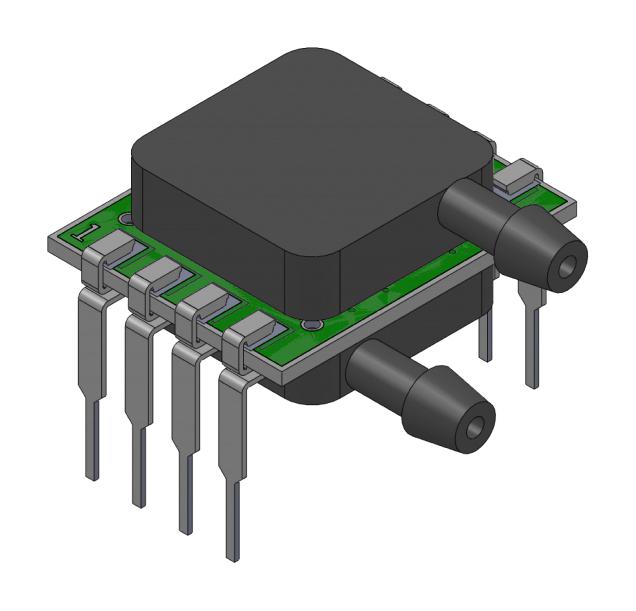

AMPHENOL ALL SENSORS MLVL02DE1NDN Low Voltage Pressure Sensor
The MLV Series Low Voltage Pressure Sensors utilize CoBeam™ Technology to deliver high output signals at low operating voltages, providing enhanced accuracy and stability across a wide temperature range. Designed for measuring pressures from 1 to 150 PSI or 1 to 30 inH20, these sensors are suitable for medical breathing, environmental control, HVAC, and industrial applications. Featuring optional protective Parylene coating for harsh environments, they operate at 5V DC, with excellent position sensitivity, low warm-up shift, and linearity. Compact and calibrated, they suit non-corrosive, dry gases, and air, ensuring reliable long-term performance.
AMPHENOL ALL SENSORS MLVL02DE1NDN Low Voltage Pressure Sensor Specifications:
- Pressure Ranges: 1 to 150 PSI or 1 to 30 inH20
- Operation Voltage: 5V DC
- Output Signal: Ratiometric, 25-375 mV depending on model
- Temperature Range: 0°C to 50°C (operating), 40°C to 125°C (storage)
- Linearity Error: 0.10% to 0.50% FSS
- Hysteresis: 0.20% to 0.50% FSS
- Output Resistance: 2-3 kohm
- Port Options: Single or dual port cut configurations, barb fittings available
- Protective Coating: Optional Parylene
- Environmental: Humidity up to 95% RH, non-condensing
- Lead Temperature (Soldering): 270°C for 2-4 seconds
- Package Types: E2ND, E1NJ, E2NS, EGBJ, EGBS, E1BD, E1BS
Buy the Buy All Sensors MLV Series Low Voltage Pressure Sensors Part Number MLVL02DE1ND now and experience unmatched reliability and performance.
Order the All Sensors MLV Series Low Voltage Pressure Sensors online today to benefit from precise pressure measurement, low power consumption, and reliable performance across various industrial, medical, and HVAC applications. These sensors feature optional protective coatings for harsh environments, multiple port configurations, and calibration for accuracy over wide temperature ranges. Whether you need a single or dual port setup, ordering online guarantees quick delivery, secure transaction, and access to the latest technology designed for stability and long-term durability in demanding operational conditions.
Buy All Sensors MLVL02DE1ND Low Voltage Pressure Sensor now and enjoy precise measurement capabilities, versatile port options, and long-term stability in demanding environments.
