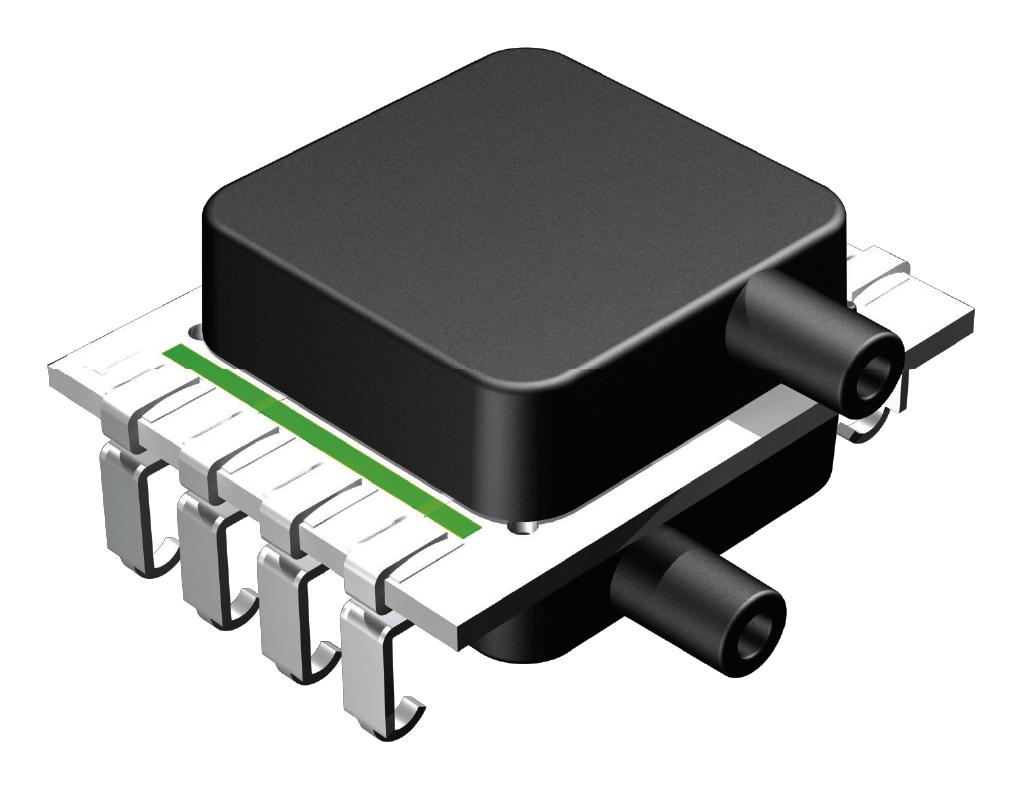

AMPHENOL ALL SENSORS MLVL02DE1NJN Low Voltage Pressure Sensor
The MLV Series Low Voltage Pressure Sensors utilize CoBeam Technology to deliver high output signals at low operating voltages, ensuring excellent long-term stability and position sensitivity. Designed for accurate pressure measurements of 1 to 150 PSI and 1 to 30 inH20, these calibrated sensors are suitable for medical breathing, environmental controls, HVAC, and industrial applications. The series features optional Parylene coating for moisture and harsh media protection, with outputs that are ratiometric and operate at 5V DC, providing reliable performance across a wide temperature range.
AMPHENOL ALL SENSORS MLVL02DE1NJN Low Voltage Pressure Sensor Specifications:
- Pressure Range: 1 to 150 PSI, 1 to 30 inH20
- Output Voltage: Ratiometric to 5V supply, typical output 25 mV at 5 PSI (model 005D), up to 375 mV for higher ranges
- Supply Voltage: 5V DC
- Operating Temperature Range: 0°C to 50°C
- Storage Temperature: 40°C to 125°C
- Proof Pressure: 100 inH20 or 50 PSI depending on model
- Burst Pressure: 300 inH20 or up to 250 PSI depending on model
- Output Resistance: Approx. 2-3 kohm
- Linearity: 0.10% to 0.75% FSS
- Temperature Shift: Up to ±250 uV (pressure dependent)
- Port Options: Single or dual port configurations, optional port cut sizes
- Protection: Optional Parylene coating for moisture and harsh media
- Environmental Conditions: Humidity to 95% RH, Non-condensing
- Lead Temperature (Soldering): 270°C for 2-4 seconds
Buy the All Sensors Series MLV Pressure Sensors: MLVL02DE1NJN
Order the All Sensors MLVL02DE1NJN low voltage pressure sensor today online for quick delivery and reliable performance in pressure measurement. This highly sensitive device offers accurate readings from 1 to 150 PSI or 1 to 30 inH20, making it ideal for medical breathing, HVAC systems, environmental controls, and industrial applications. Featuring optional Parylene coating for moisture resistance, it ensures durability and long-term stability in harsh environments. Easy to install and operate, this sensor provides consistent, high-quality pressure data essential for your critical systems.
Buy All Sensors MLVL02DE1NJN low voltage pressure sensor now and experience unmatched reliability and performance in precise pressure measurement applications.
