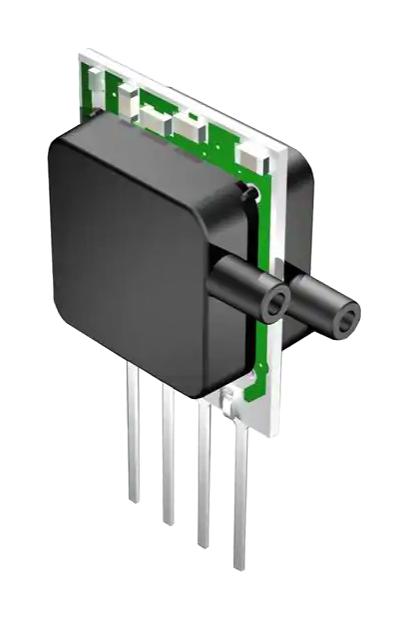

AMPHENOL ALL SENSORS MLVL02DE1NSN Low Voltage Pressure Sensor
The MLV Series Low Voltage Pressure Sensors utilize advanced CoBeam™ Technology to provide high output signals at low operating voltages, ensuring excellent long-term stability and position sensitivity. Designed for non-corrosive, dry gases and air, these calibrated sensors feature optional Parylene coating for moisture and harsh media protection. Available in various pressure ranges from 1 inH20 to 150 PSI, they operate within 0°C to 50°C ambient temperature and feature a compact form factor suitable for medical, environmental, HVAC, and industrial control applications. Built with reliability and precision, these sensors deliver accurate, stable outputs over wide temperature and pressure ranges.
AMPHENOL ALL SENSORS MLVL02DE1NSN Low Voltage Pressure Sensor Specifications:
- Pressure Ranges: +1 to 30 inH20, +5 to 150 PSI
- Operation Voltage: 5V DC
- Output Voltage: 6.0 to 8.0 mV (1 inH20), up to 37.88 mV (15 PSI)
- Temperature Range: 0°C to 50°C (operating), -25°C to 85°C (storage)
- Power Supply: 12 Vdc maximum, typical 5 V
- Linearity: 0.10 to 0.50 % FSS
- Hysteresis: 0.20 to 0.50 % FSS
- Response Time: Not specified, designed for stable readings
- Port Options: Single, dual, barb fitting configurations with port sizes 0.080
- 0.1
- 0.150"
- Pressure Proof Pressure: 100 to 200 inH20 / 10 to 150 PSI
- Burst Pressure: 300 inH20 / 250 PSI
- Electromagnetic Compatibility: Not specified
- Material: Non-corrosive, non-ionic fluid compatible, optional Parylene coating
- Environmental Protection: Optional moisture barrier coating
- Pinout: Gnd, +Out, Vs, -Out with N/C options
- Dimensions: Approximately 0.77 inches in port diameter, various port cut options
- Certifications: Not specified, meet general industrial standards
Buy the All Sensors MLVL02D – Reliable Differential Pressure Sensor for Industrial Applications
Purchase the Low Voltage Pressure Sensor online today to ensure precise, stable pressure measurements in HVAC, medical, or industrial control systems. With advanced CoBeam™ technology, it delivers high output at low voltage, offering excellent long-term stability and position sensitivity. Suitable for dry gases and air, it features optional Parylene coating for moisture and harsh media protection. Compact and calibrated, this sensor guarantees reliable performance across wide temperature and pressure ranges. Order now for fast delivery and seamless integration into your applications.
Buy All Sensors MLVL02D now and experience unmatched reliability and precise pressure measurements for your industrial and medical needs.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS MLVL02DE1NSN?
You can click on the BUY or RFQ button to purchase MLVL02DE1NSN from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part MLVL02DE1NSN?
You can download the MLVL02DE1NSN datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of MLVL02DE1NSN?
AMPHENOL ALL SENSORS
