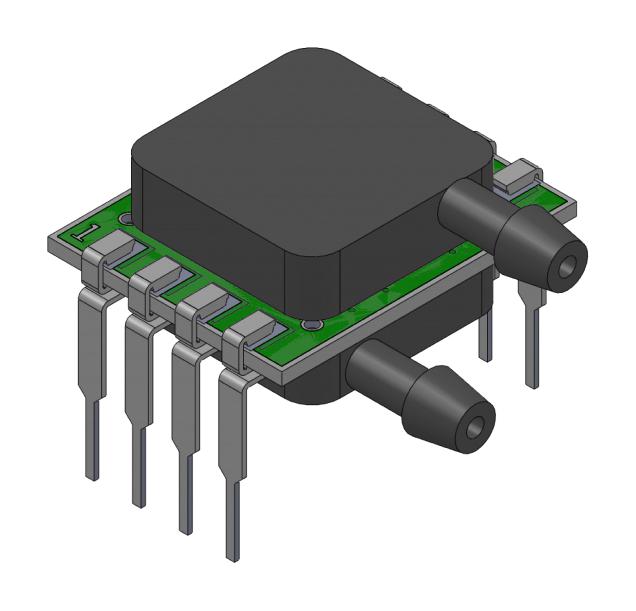

AMPHENOL ALL SENSORS MLVL10DE1NDN Low Voltage Pressure Sensor
The MLV Series Low Voltage Pressure Sensors utilize CoBeam™ Technology to deliver high output signals at low voltages, offering exceptional stability and position sensitivity. Designed for accurate measurements in various pressure ranges from 1 to 150 PSI and inches of water, these sensors operate at 5V with low power consumption. Their robust construction includes optional parylene coating for harsh environments, making them suitable for medical breathing, HVAC, environmental, and industrial controls. The sensors feature high linearity, minimal warm-up shift, and wide temperature operation, ensuring reliable long-term performance in non-corrosive gases and air applications.
AMPHENOL ALL SENSORS MLVL10DE1NDN Low Voltage Pressure Sensor Specifications:
- Pressure Ranges: 1 to 150 PSI and 1 to 30 inH20
- Operation Voltage: 5V DC
- Output Signal: 7mV to 375mV (typical depending on model)
- Temperature Range: 0°C to 50°C (operating), -25°C to 85°C (storage)
- Warm-Up Shift: < 20 uV to +250 uV depending on model
- Linearity: 0.10%FSS to 0.75%FSS
- Hysteresis Error: 0.20%FSS to 0.50%FSS
- Output Resistance: 2-3 kohm
- Protection: Optional parylene coating
- Environmental Humidity Limits: 95% RH
- Lead Soldering Temperature: 270°C for 2-4 sec
- Proof Pressure: 100-200 inH20, 10-50 psi depending on model
- Burst Pressure: 300 inH20 to 250 PSI depending on model
- Package Types: E2ND, E1NJ, E1BD, E2NS, E2BS, EGBD, EGBS
Buy the All Sensors Series Low Voltage Pressure Sensor: MLVL10DE1ND
Purchase the All Sensors MLVL10DE1ND low voltage pressure sensor online today and enjoy precise pressure measurements with minimal power consumption. Designed for accuracy in medical breathing systems, HVAC controls, industrial automation, and environmental monitoring, this sensor features robust construction, optional moisture protection coating, and wide temperature and pressure ranges. Its stable output, high linearity, and low warm-up shift ensure dependable long-term operation. Order now to enhance your system’s performance with this reliable, easy-to-integrate pressure sensing solution.
Buy All Sensors MLVL10DE1ND low voltage pressure sensor now and experience unmatched reliability, high accuracy, and long-term stability for demanding applications.
