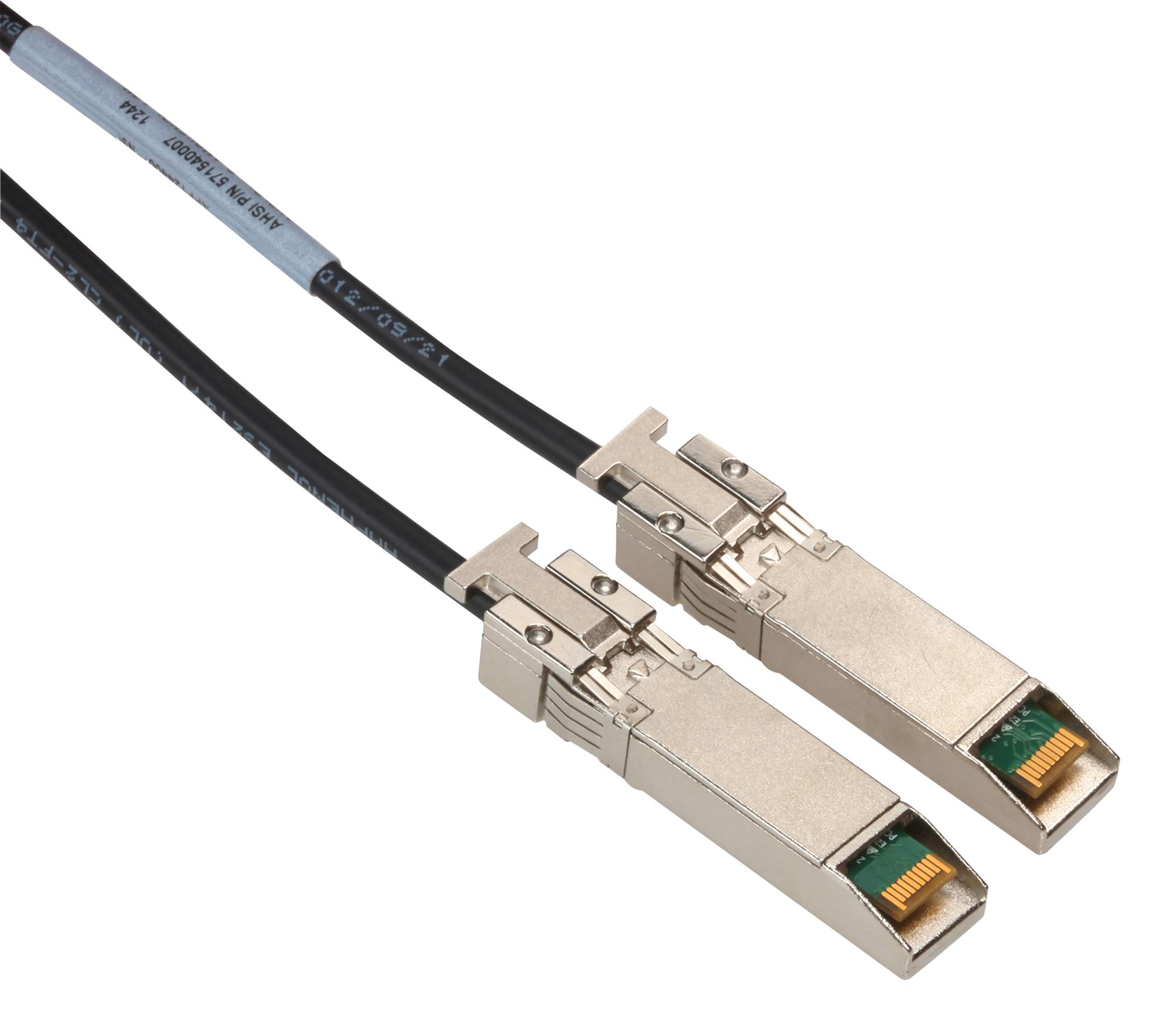

AMPHENOL CABLES ON DEMAND SFNDCCGF28GB0005M High-Speed SFP+ Cable Assembly
This high-speed passive optical module is designed for SFP+ applications, supporting data rates up to 28 Gbps. It features robust shielding, precise construction for minimal signal interference, and complies with industry standards such as SFF-8432. The cable assembly includes a 30 AWG EXD wire, ensuring optimal flexibility and durability for high-density networking environments. Suitable for enterprise data centers, it guarantees reliable signal transmission with shielding effectiveness of 35 dB minimum from 1–18 GHz, meeting RoHS2 and UL standards for safety and environmental compliance. The module is equipped with comprehensive labeling and packaging for easy identification and handling.
AMPHENOL CABLES ON DEMAND SFNDCCGF28GB0005M High-Speed SFP+ Cable Assembly Specifications:
- Cable Type: 30 AWG EXD, 2PR, PVC black, ANSI style 20276, 80°C VW-1
- Length Options: 1.69 ft, 3.33 ft, 6.61 ft, 9.89 ft (custom cut lengths available)
- Shielding Effectiveness: Minimum 35dB from 1-18 GHz, meets industry standards
- Connector: SFP+ passive module based on SFF-8432, with pull-to-release feature
- Pinout: GND TX, GND RX, TX disable, SDA, SCL, RISO, VccR, GND IX, RECEIVE +/-, GND RX
- Construction: Diecast metal housing with dust cover, spring-ground copper, grounding fingers
- Compliance: RoHS2, UL Listed, CSA Certified, complies with SFF-8431, IEC standards
- Environmental: Operating temperature -55°C to +105°C, rated for high-speed data transmission
- Labeling: Individual labels on assemblies and shipping cartons per UL and CSA requirements
- Additional Features: Shielding, high-frequency performance, durable construction, easy handling, for enterprise networking applications
Buy the Amphenol Series SFP+ Passive Cable: SFNDCCGF28GB0005M
Purchase the high-speed SFP+ passive cable assembly from Amphenol today and ensure your enterprise network operates at maximum speed and reliability. Designed for 28 Gbps data rates, this cable features 30 AWG EXD wire with excellent shielding effectiveness of 35dB minimum from 1-18 GHz, making it ideal for data centers and high-density network environments. Each assembly is built with precision components, compliant with RoHS2 and UL standards, and comes with clear labeling for easy installation. Buy online now to secure fast, durable, and standards-compliant connectivity for your critical networking needs.
Buy Amphenol SFNDCCGF28GB0005M now and experience unmatched reliability and high-speed performance in your network infrastructure.
Frequently Asked Questions
Where can I buy AMPHENOL CABLES ON DEMAND SFNDCCGF28GB0005M?
You can click on the BUY or RFQ button to purchase SFNDCCGF28GB0005M from an authorized AMPHENOL CABLES ON DEMAND distributor.
How do I troubleshoot issues or seek technical support for part SFNDCCGF28GB0005M?
You can download the SFNDCCGF28GB0005M datasheet or visit the AMPHENOL CABLES ON DEMAND website for support.
Who is the manufacturer of SFNDCCGF28GB0005M?
AMPHENOL CABLES ON DEMAND
