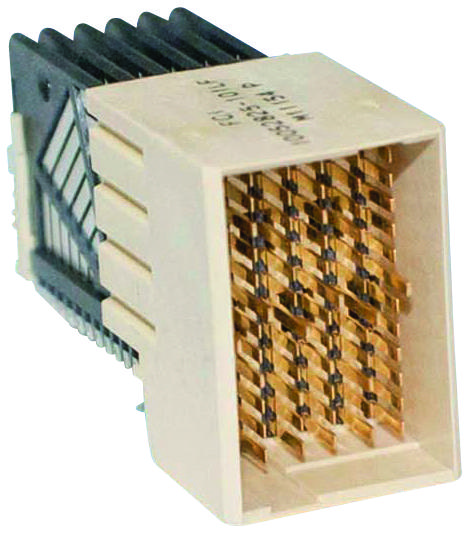

AMPHENOL COMMUNICATIONS SOLUTIONS 10052825101LF AirMax Backplane Connector
The AirMax VS[®] connector family provides a cost-effective, high-performance interconnect solution for a wide range of applications including backplane, midplane, coplanar, and mezzanine systems. Its innovative shieldless design and air dielectric minimize insertion loss and crosstalk, while the open pin field design offers exceptional flexibility in board layout. Compatible with legacy and advanced designs, the AirMax VS[®] connector is a leading choice for demanding electronic systems.
AMPHENOL COMMUNICATIONS SOLUTIONS 10052825101LF AirMax Backplane Connector Specifications:
- Contacts: Copper Alloy
- Contact Finish: Performance-based plating over nickel at separable interface, Tin over nickel on press-fit tails on standard lead-free products
- Housings: High Performance Thermoplastic, UL94V–0
- Contact Resistance: ≤35mΩ initial, ≤10mΩ increase after environmental test
- Current Rating: 0.5A/contact with all contacts powered
- Differential impedance: 100 ± 8Ω @ 50 ps (10-90%) rise time
- Differential insertion loss: <1dB through 6.25Gb/s < 1.5 dB through 12.5Gb/s
- Near-end crosstalk: < -38 dB through 6.25Gb/s; < -28 dB through 12.5Gb/s
- Far-end crosstalk: < -41 dB through 6.25Gb/s; < -28 dB through 12.5Gb/s
- Durability: 200 cycles
- Mating Force: 0.45N max./contact
- Unmating Force: 0.15N min./contact
- Compliant pin insertion force: 40 N max. (Vertical headers, right-angle headers or right-angle receptacles), 25 N max. (Vertical receptacles)
