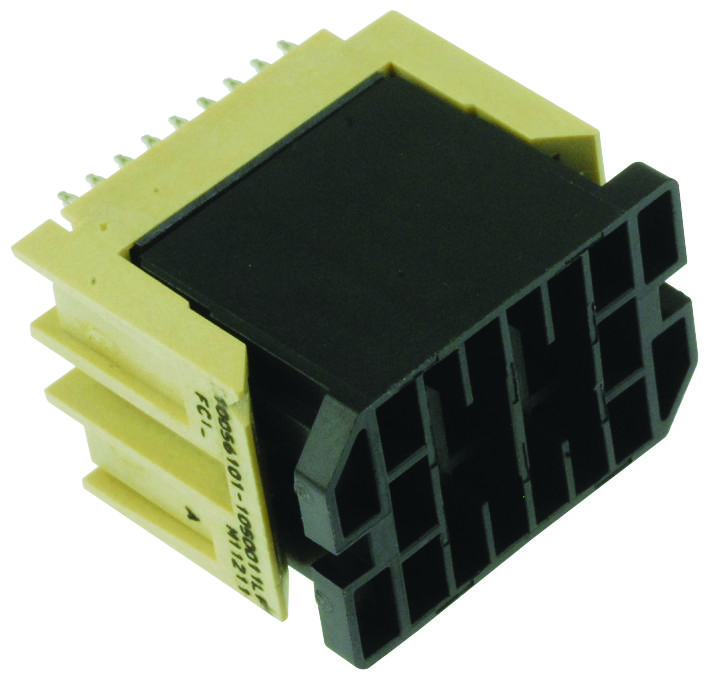

AMPHENOL COMMUNICATIONS SOLUTIONS 100561011050011LF Backplane Midplane Connector
The AirMax VS[®] connector family from AMPHENOL COMMUNICATIONS SOLUTIONS delivers a unique combination of performance and cost-effectiveness. Its innovative edge-coupling and air dielectric design minimizes insertion loss and crosstalk, making it ideal for demanding applications in telecom, networking, server, and storage systems. The shieldless Open Pin Field Design provides exceptional flexibility in board layout, while its modular construction simplifies system design and supply chain management. With speeds up to 25Gb/s and backward compatibility with legacy systems, the AirMax VS[®] connector is a versatile solution for a wide range of electronic systems.
AMPHENOL COMMUNICATIONS SOLUTIONS 100561011050011LF Backplane Midplane Connector Specifications:
- Contacts: Copper Alloy
- Contact Finish: Performance-based plating over nickel at separable interface, Tin over nickel on press-fit tails on standard lead-free products
- Housings: High Performance Thermoplastic, UL94V–0
- Contact Resistance: ≤35mΩ initial, ≤10mΩ increase after environmental test
- Current Rating: 0.5A/contact with all contacts powered
- Differential impedance (100Ω): 100 ± 8Ω @ 50 ps (10-90%) rise time
- Differential insertion loss (100Ω): <1dB through 6.25Gb/s, < 1.5 dB through 12.5Gb/s
- Near-end crosstalk (multi-active) (100Ω): < -38 dB through 6.25Gb/s, < -28 dB through 12.5Gb/s
- Far-end crosstalk (multi-active) (100Ω): < -41 dB through 6.25Gb/s, < -28 dB through 12.5Gb/s
- Differential impedance (80Ω): 85 ±5Ω @ 50 ps (10-90%) rise time
- Differential insertion loss (80Ω): <1.5 dB through 8Gb/s
- Near-end crosstalk (multi-active) (80Ω): <-30 dB through 8Gb/s
- Far-end crosstalk (multi-active) (80Ω): <-30 dB through 8Gb/s
- Durability: 200 cycles
- Mating Force: 0.45N max./contact
- Unmating Force: 0.15N min./contact
- Compliant pin insertion force: 40 N max. (Vertical headers, right-angle headers or right-angle receptacles), 25 N max. (Vertical receptacles)
