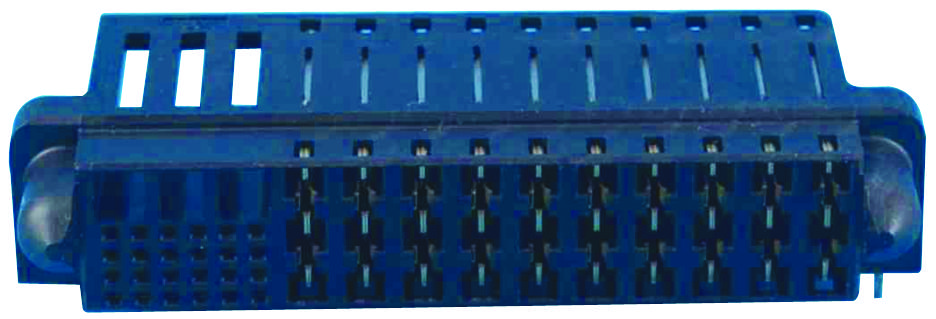

AMPHENOL COMMUNICATIONS SOLUTIONS 10065127001LF HCI Connector System
The Amphenol HCI connector system addresses the increasing demand for high-power density solutions. It integrates power and signal contacts, offering flexibility for custom configurations and supporting both AC and DC power. The system's vented housing maximizes airflow, while rugged guides enable blind mating. Ideal for applications like AC/DC power supplies, industrial PCs, and medical devices, the HCI connector system provides a robust and efficient power distribution solution.
AMPHENOL COMMUNICATIONS SOLUTIONS 10065127001LF HCI Connector System Specifications:
- Current Rating: 86 Amps – 10 contacts fully energized at 30°C temperature rise in still air; 144 Amps – 1 contact fully energized at 30°C temperature rise in still air
- Contact Resistance: ≤0.5mΩ after environmental exposure
- Mating Force: ≤36.5 ounces per power contact and 3.5 ounces per signal contact
- Withdrawal Force: ≥26 ounces per power contact and 0.64 ounces per signal contact
- Housing Material: High-temperature thermoplastic (UL94V-0)
- Contact Base Material (Power): High-conductivity copper alloy
- Contact Base Material (Signal): Copper alloy
- Contact Finish (Separable Interface): 30μin. (0.76μm) performance-based plating over nickel
- Contact Finish (Board Termination Area): Matte tin over nickel
- Product Specification: GS-12-380
- Application Specification: GS-20-070
- Approvals: UL/CSA, TUV
Buy the 10065127-001LF AMPHENOL COMMUNICATIONS SOLUTIONS HCI Connector System | myMectronic
Securely purchase the Amphenol 10065127-001LF HCI Connector System and ensure reliable power distribution for your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10065127001LF?
You can click on the BUY or RFQ button to purchase 10065127001LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10065127001LF?
You can download the 10065127001LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10065127001LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
