AMPHENOL COMMUNICATIONS SOLUTIONS 10124408102LF Backplane Connectors
The AirMax VS2 backplane connector system offers a high-speed migration path to 20Gb/s per differential pair, suitable for communication, data, and industrial applications. It features shieldless design with closely coupled differential pairs, low insertion loss, and crosstalk. The connectors are compatible with existing VS and VS2 systems, available in multiple configurations, and support both 0.5mm and 0.4mm pitch pins. Constructed with high-performance copper alloy contacts and thermoplastic housings, these connectors provide durability, reliable electrical performance, and ease of installation for backplane, midplane, and coplanar applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 10124408102LF Backplane Connectors Specifications:
- Contacts: High-performance Copper Alloy
- Contact Finish: Tin over Nickel or Tin-lead option
- Housing: High-Performance Thermoplastic, 94-VO
- Contact Resistance: <60 mΩ initial in backplane, <120 mΩ in coplanar
- Current Rating: 0.5 A per contact with all contacts powered
- Durability: 200 mating cycles
- Mating Force: 0.50N max per contact
- Unmating Force: 0.15N min per contact
- Maximum Power-Summed Far-end Crosstalk: Low, suitable for high-speed signals
- Insertion Loss & Crosstalk: Optimized for high-frequency performance
- Environmental Qualification: Telcordia GR-1217-CORE passed
- Application: Backplane, midplane, coplanar, communication infrastructure, high-speed data transfer, industrial, medical
- Connector Types: Right angle, vertical, coplanar versions available
- Pin Pitch: 0.4mm and 0.5mm options
- Product Codes: GS-12-0956, GS-20-0305
- Electrical: 100 Ohms impedance, suitable for high-speed data and optical transmission

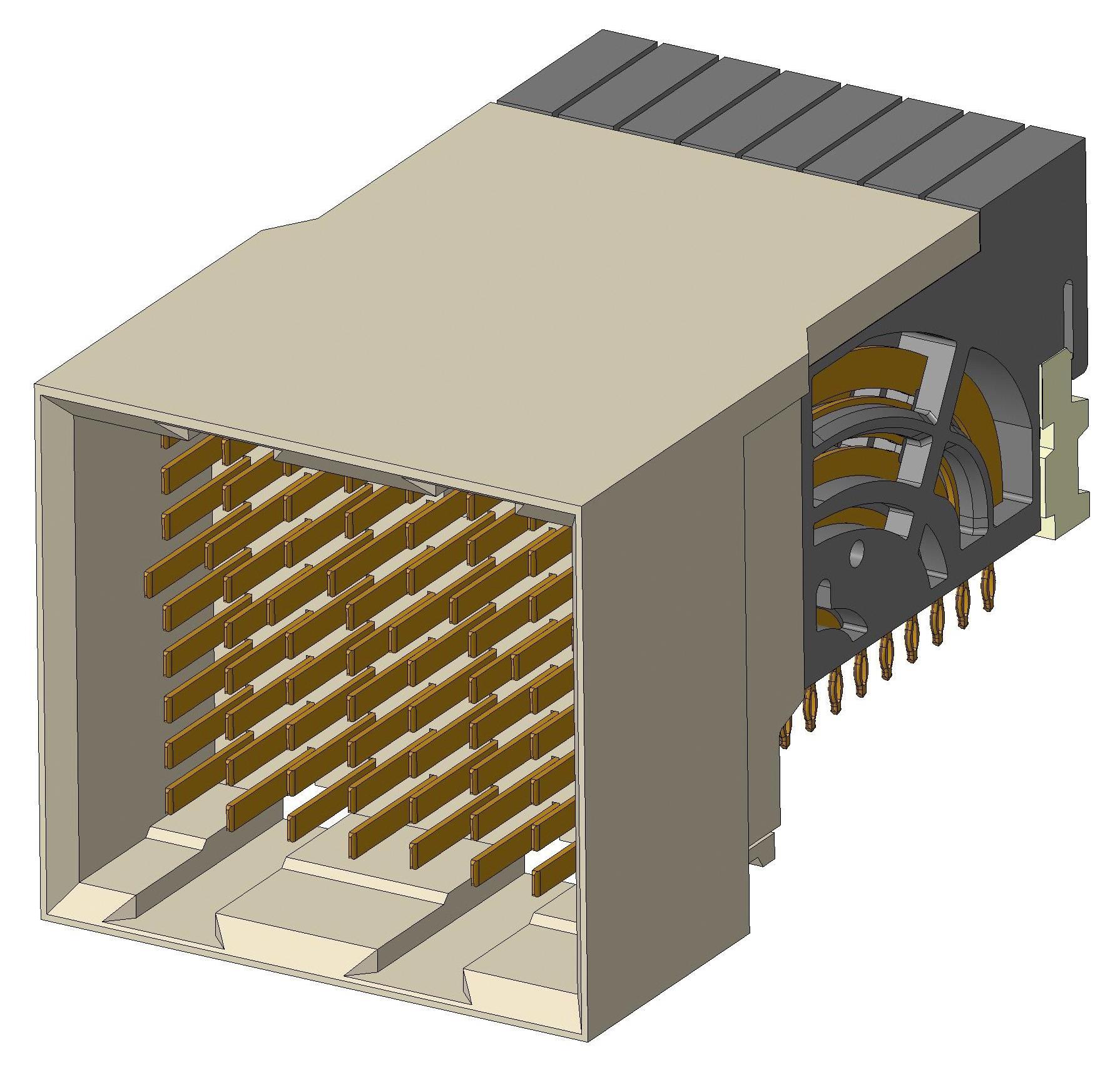

Buy the Buy FCI AirMax VS2 Backplane Part Number 10124408102LF Online
Enhance your high-speed data systems with FCI’s AirMax VS2 backplane connectors. Designed for speeds up to 20Gb/s, these connectors feature low crosstalk, low insertion loss, and compatibility with existing VS systems. Made from high-performance materials with robust contacts, they ensure durability and optimal electrical performance in communication, data, and industrial applications. Easily installed in backplane, midplane, and coplanar configurations, these connectors enable seamless upgrades and reliable high-frequency signal transmission in demanding environments.
Buy FCI AirMax VS2 backplane connectors now and experience unmatched high-speed performance and reliable signal integrity for your systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10124408102LF?
You can click on the BUY or RFQ button to purchase 10124408102LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10124408102LF?
You can download the 10124408102LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10124408102LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
