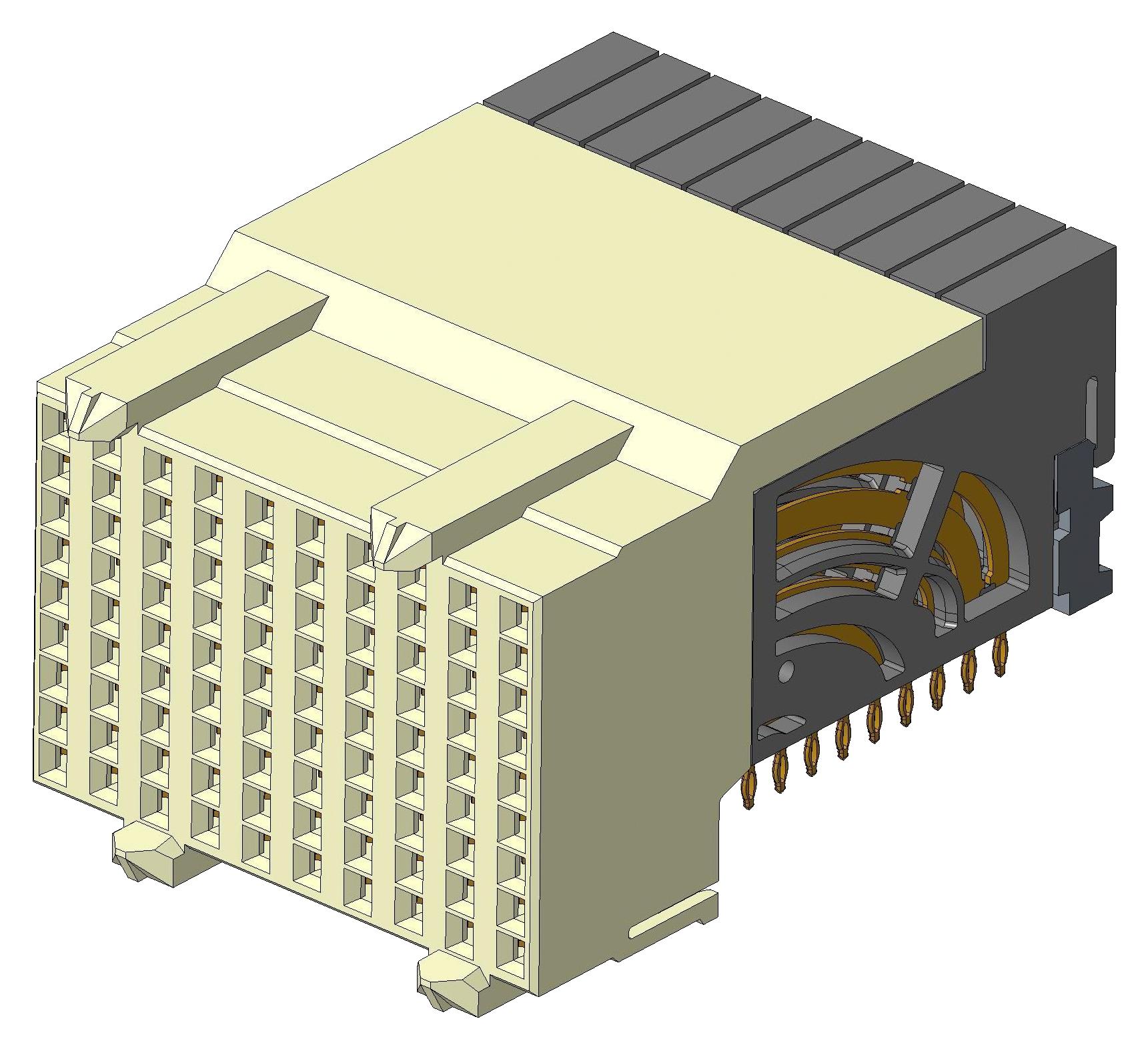

AMPHENOL COMMUNICATIONS SOLUTIONS 10124420101LF High-Speed Backplane Connector
The AirMax VS2 connector system offers a high-performance, shieldless, open pin field design supporting migration to 20Gb/s differential pairs. It utilizes FCI technology for low loss, minimal crosstalk, and excellent signal integrity, suitable for backplane, midplane, and coplanar applications in communications, data servers, and industrial equipment. Available in 3, 4, and 5 pair configurations, with options for 0.5mm or 0.4mm compliant pins, these connectors ensure backward compatibility with existing systems, enabling cost-effective upgrades for higher-speed network components.
AMPHENOL COMMUNICATIONS SOLUTIONS 10124420101LF High-Speed Backplane Connector Specifications:
- Materials: Copper Alloy contacts, high-performance thermoplastic housings (94-VO)
- Plating: Tin over Nickel, GXT+™ coating, optional tin-lead
- Electrical Performance: <60 mΩ initial contact resistance, 0.5 A per contact current rating
- Environmental: Telcordia GR-1217-CORE qualified
- Mechanical: 200 mating cycles, max mating force 0.50N/contact, min unmating force 0.15N/contact
- Pin Sizes: 0.4mm and 0.5mm press-fit pins, with drop-in replacements for legacy systems
- Target Markets: Communications, data centers, industrial, medical, optical transmission
Buy the FCI Series VS2 High-Speed Backplane Connectors: 10124420101LF
Purchase the FCI VS2 high-speed backplane connector system now to upgrade your network infrastructure efficiently. Designed for reliable, low-loss signal transmission supporting speeds up to 20Gb/s, these connectors are compatible with existing VS and VSe systems, ensuring seamless upgrades. Featuring a shieldless, open pin field design with options for 0.4mm or 0.5mm pins, they provide excellent crosstalk and insertion loss performance, ideal for data centers, industrial equipment, and communication systems seeking high performance and cost-effective solutions.
Buy FCI VS2 10124420101LF connectors now and experience unmatched reliability and performance for high-speed communication and industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10124420101LF?
You can click on the BUY or RFQ button to purchase 10124420101LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10124420101LF?
You can download the 10124420101LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10124420101LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
