AMPHENOL COMMUNICATIONS SOLUTIONS 10125530102LF Backplane Connector
The AirMax VS2 backplane connector system offers a high-speed connectivity solution for migrating up to 20Gb/s per differential pair in telecommunications, data centers, and industrial applications. Designed with a shieldless, low-loss, and low crosstalk differential pair architecture, it provides compatibility with legacy AirMax VS and VSe systems, enabling seamless upgrades. With multiple configurations, including right angle, vertical, and coplanar connectors, and options for 0.4mm or 0.5mm press-fit pins, it ensures reliable, high-performance connections with easy integration into existing systems. Certified and tested for durability, it supports critical electronic infrastructure applications worldwide.
AMPHENOL COMMUNICATIONS SOLUTIONS 10125530102LF Backplane Connector Specifications:
- Contacts: High performance Copper Alloy
- Contact Finish: Tin over Nickel or Tin-lead option
- Plating: GXT+™
- Housing: High Performance Thermoplastic, 94-VO
- Electrical Resistance: <60 mΩ initial in backplane, <120 mΩ in coplanar
- Current Rating: 0.5 A per contact at <30°C temperature rise
- Durability: 200 mating cycles
- Mating Force: 0.50N max per contact
- Unmating Force: 0.15N min per contact
- Insertion Force: 15N max for 0.4mm PCB, 30N max for 0.5mm PCB
- Operating Environment: Telcordia GR-1217-CORE certified
- Application: Machine-to-machine communication, data transmission, industrial, telecom, medical
- Compatible with 0.4mm and 0.5mm press-fit pins
- Available in multiple configurations including right angle, vertical, and coplanar
- Target voltages: 100 Ohms impedance, suitable for high-speed data protocols

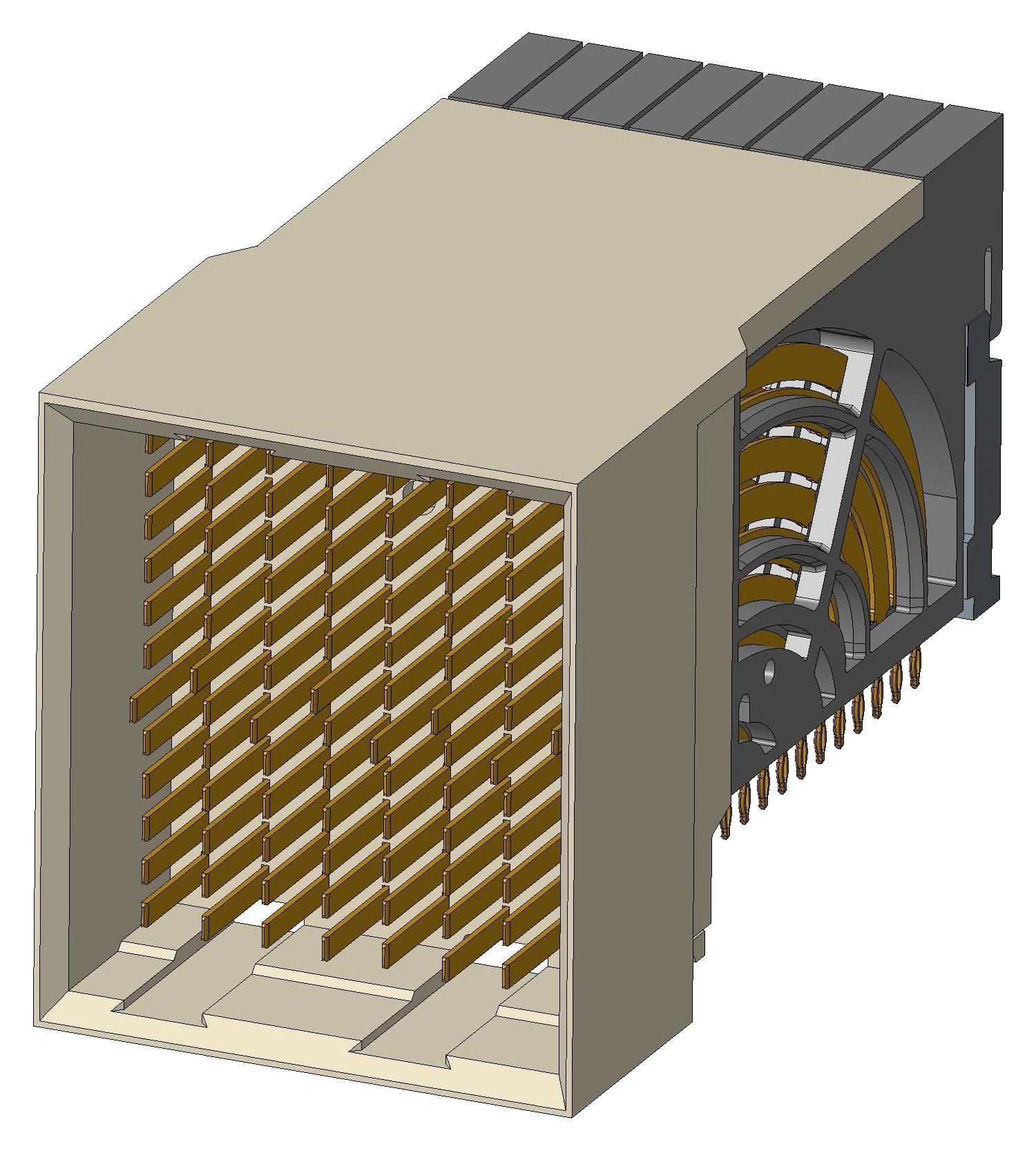

Buy the Buy FCI AirMax VS2 Backplane Connector Part Number 10125530102LF Online
Enhance your electronic infrastructure with the high-performance AirMax VS2 backplane connector system from FCI. Designed for speeds up to 20Gb/s, this connector offers a shieldless architecture with low crosstalk, low insertion loss, and robust durability for industrial, telecom, and medical applications. With multiple configurations and pin options, it ensures precise compatibility with existing systems while allowing seamless upgrades. Secure your systems’ future with reliable, high-speed connectivity—order the AirMax VS2 now for fast delivery and long-lasting performance.
Get FCI AirMax VS2 backplane connector today—engineered for high-speed data transmission with durable, shieldless design and seamless system upgrades.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10125530102LF?
You can click on the BUY or RFQ button to purchase 10125530102LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10125530102LF?
You can download the 10125530102LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10125530102LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
