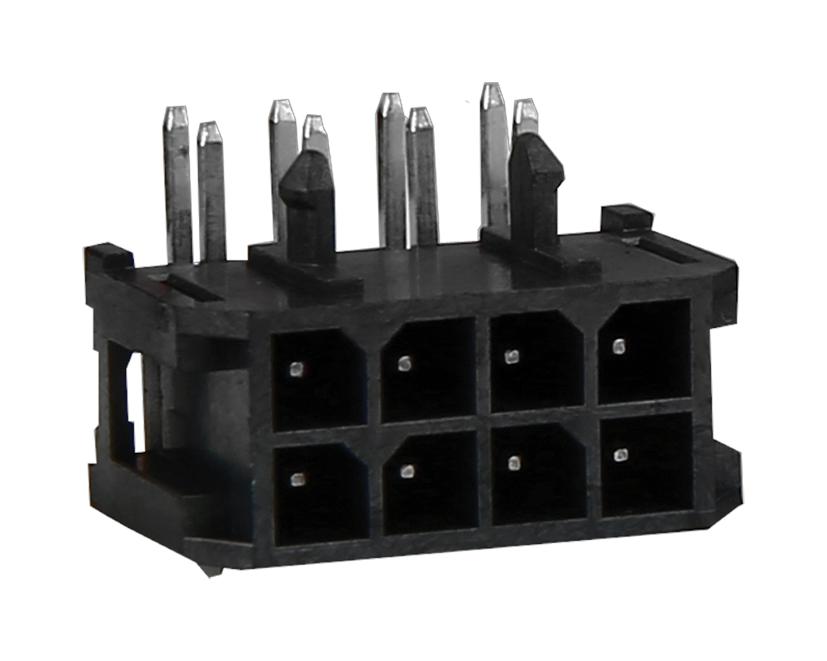

AMPHENOL COMMUNICATIONS SOLUTIONS 10127720061LF power connector
The Minitek Pwr 3.0 Series Connector is designed for power applications, supporting current ratings up to 5A per circuit. It is available in dual-row configurations with 2 to 24 circuits. The header contacts accommodate wire sizes from 20 to 30 AWG. These connectors can be used in wire-to-wire and wire-to-board setups, with options for vertical or right-angle headers, including through-hole configurations suitable for wave soldering. Features include fully isolated terminals, positive locking mechanisms with low thumb latch operation, polarized mating geometry, scoop-proof housings, and low insertion force for easy installation of crimped terminals. It is ideal for industrial applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 10127720061LF power connector Specifications:
- Current Rating: 5A per circuit
- Voltage Rating: 250V rms
- Number of Circuits: 2 to 24
- Header Contact Size: Wire sizes 20-30 AWG
- Housing Material: LCP & Nylon, UL94 V-0
- Contact Material: Brass with Tin and Gold Flash plating
- Operating Temperature: -40°C to +105°C
- Dielectric Withstand Voltage: 1000 VAC
- Low Level Contact Resistance: 20mΩ max.
- Insulation Resistance: 1000MΩ min.
- Terminal Insertion Force: 8.0N max.
- Terminal Withdrawal Force: 3.7N min.
- Durability: 100 cycles
- Temperature Rise at Rated Current: 30°C maximum
Buy the Buy Molex Minitek Pwr 3.0 Part Number 10127720061LF Online
Discover the Minitek Pwr 3.0 Series connector, engineered for reliable power connections in industrial and electronic applications. Supporting currents up to 5A per circuit, it features dual-row configurations with 2 to 24 circuits, suitable for wire-to-wire and wire-to-board use. With fully isolated terminals, polarized and scoop-proof housings, and low insertion force, this connector ensures easy, safe installation. Made from UL94 V-0 rated materials, it’s perfect for demanding environments, offering high durability, safety, and compatibility across various PCB designs and applications.
Order your Molex Minitek Pwr 3.0 Series connector with 5A current rating today and ensure reliable power connections for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10127720061LF?
You can click on the BUY or RFQ button to purchase 10127720061LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10127720061LF?
You can download the 10127720061LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10127720061LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
