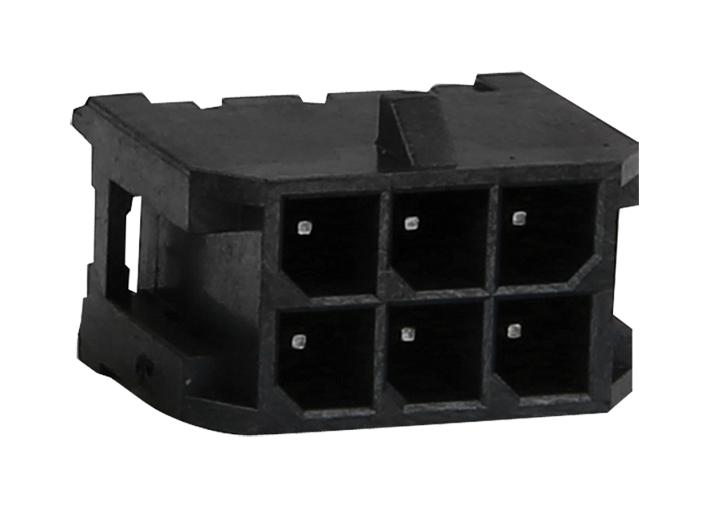

AMPHENOL COMMUNICATIONS SOLUTIONS 10127721101LF Power Connector
Minitek Pwr™ 3.0 connectors are versatile power connectors designed for Wire-To-Board and Wire-To-Wire applications with a current rating of up to 5A per circuit. Suitable for 30AWG-20AWG wires, these connectors feature fully isolated terminals, positive locking, polarized and scoop-proof housings, and are available in vertical and right-angle configurations. They support high flammability ratings (UL94V-0), are RoHS compliant, and capable of withstanding temperatures from -40°C to +105°C, making them ideal for consumer, industrial, and communication markets.
AMPHENOL COMMUNICATIONS SOLUTIONS 10127721101LF Power Connector Specifications:
- Contact Material: Brass with optional Tin and Gold Flash plating
- Housing: LCP & Nylon, Black, UL94 V-0
- Terminal Material: Phosphorus Bronze with optional Tin and Gold Flash plating
- Electrical Ratings: Voltage 250V rms, Current 5A/contact
- Contact Resistance: 20mΩ max.
- Insulation Resistance: 1000MΩ min.
- Dielectric Withstand Voltage: 1000 VAC
- Operating Temperature: -40°C to +105°C
- Terminal Insertion Force: 8.0N max.
- Terminal Withdrawal Force: 3.7N min.
- Durability: 100 cycles
- Package: Tray for PCB headers, Bag for crimping housings, Reel for terminals
- Supported applications include consumer electronics, industrial lighting, and communication equipment
Buy the Molex Series Minitek Pwr 3.0 Connectors: GS-12-1177
Discover the high-quality Molex Series Minitek Pwr 3.0 power connectors, designed for efficient Wire-To-Board and Wire-To-Wire connections. Rated at 5A, these connectors feature polarized, scoop-proof housings with positive locking for secure connections across various applications including consumer electronics, industrial systems, and communication devices. With UL94V-0 flammability rating, RoHS compliance, and operating temperatures from -40°C to +105°C, they ensure safety, durability, and performance in demanding environments, available in vertical and right-angle configurations.
Order your Molex Series Minitek Pwr 3.0 connector today and ensure reliable power connections for your industrial or consumer projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10127721101LF?
You can click on the BUY or RFQ button to purchase 10127721101LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10127721101LF?
You can download the 10127721101LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10127721101LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
