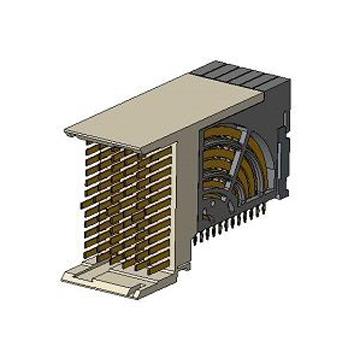

AMPHENOL COMMUNICATIONS SOLUTIONS 10127860102LF Backplane Connector System
The AirMax VS2 backplane connector system offers high-speed performance up to 20Gb/s per differential pair, ensuring reliable data transmission for communication, data processing, and industrial applications. It features a shieldless design with closely coupled differential pairs, providing low crosstalk and insertion loss. Compatible with existing AirMax VS and VSe connectors, this modular system supports various configurations including 3, 4, and 5 pair backplane and coplanar versions. Made from high-performance materials, it is UL approved for dependable operation in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 10127860102LF Backplane Connector System Specifications:
- Product: GS-12-0956
- Application: GS-20-0305
- Contacts Material: Copper Alloy
- Contact Finish: Tin over Nickel, with performance-based plating (Telcordia GR-1217-CORE)
- Housing Material: High Performance Thermoplastic, 94-VO
- Electrical Resistance: <60 mΩ initial in backplane, <120 mΩ in coplanar
- Current Rating: 0.5 A per contact with all contacts powered
- Durability: 200 mating cycles
- Mating Force: Up to 0.50N per contact
- Unmating Force: Minimum 0.15N per contact
- Insertion Force: 15N maximum for 0.4mm PCB hole, 30N maximum for 0.5mm PCB hole
- Environmental Qualification: Telcordia GR-1217-CORE certified
- Approval: UL Listed
- Operating Frequency: Up to 20GHz
- Connector Types: Right angle and vertical receptacles and headers
- Pins: Available with 0.4mm or 0.5mm press-fit pins
- Dimensions: Compatible with standard PCB footprints for easy integration
Buy the FCI 10127860102LF – Reliable Backplane Connectors for Industrial Applications
Upgrade your system with the reliable backplane connector system designed for high-speed data transfer up to 20Gb/s. Featuring a shieldless, low crosstalk design, these connectors are ideal for industrial, communication, and data applications. Compatible with existing systems, they support easy upgrades, ensuring seamless integration with legacy and future modules. Manufactured with high-performance materials and UL approved, this connector system guarantees durability, low insertion loss, and excellent signal integrity. Purchase online today for dependable performance in demanding environments.
Buy FCI 10127860102LF backplane connector system now and ensure high-speed, low-loss data connections for your industrial or communications systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10127860102LF?
You can click on the BUY or RFQ button to purchase 10127860102LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10127860102LF?
You can download the 10127860102LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10127860102LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
