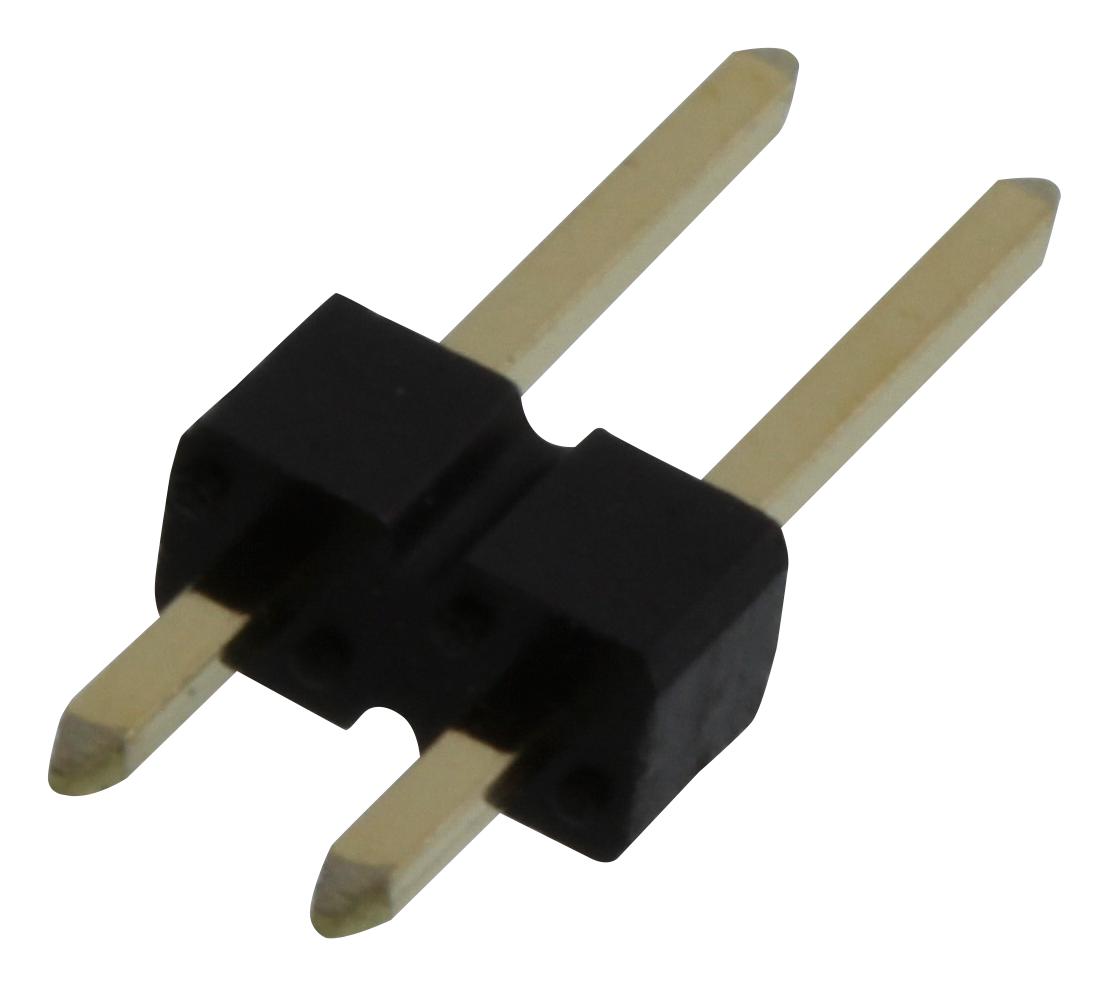

AMPHENOL COMMUNICATIONS SOLUTIONS 10129378902004BLF 2.54mm Header Stacker
The Amphenol EconoStik 2.54mm header is a versatile and economical solution for board-to-board connectivity. Designed for mid-end applications like industrial control, test equipment, and vending machines, this header offers consistent mating performance and application flexibility. It features a 0.64mm square header with high-temperature resin and 1μin gold plating, ensuring reliable performance and supporting up to 50 mating cycles. RoHS compliant and lead-free, the EconoStik meets environmental and safety requirements.
AMPHENOL COMMUNICATIONS SOLUTIONS 10129378902004BLF 2.54mm Header Stacker Specifications:
- Contact Base Metal: Brass
- Contact Area Finish: 1μin gold plating
- Solder Area Finish: 1μin gold plating
- Housing Material: High-temperature thermoplastic (UL94V-0)
- Insulation Resistance: 1000M Ω min.
- Low Level Contact Resistance: 20m Ω max.
- Withstanding Voltage: 1500V AC
- Current Rating: 3A continuous
- Retention Force Between Pin and Housing: 9N per pin
- Durability: 50 mating cycles
- MFG Test: EIA 364-65 Class IIA, Duration 5 days
- High Temperature Life: 105°C
- Product Specification: GS-12-1223
- Mating Cycles: 50
- Header Square Size: 0.64mm
