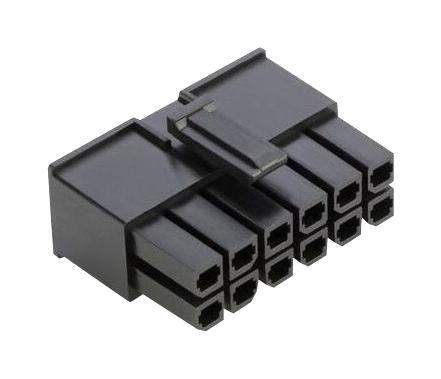

AMPHENOL COMMUNICATIONS SOLUTIONS 1014270706LF Power Connector
The Amphenol Minitek Pwr 5.7 is a versatile high-current power connector designed for wire-to-board applications, supporting up to 23A per contact with a wire gauge range of 16AWG to 12AWG. Featuring polarized mating geometry to prevent misalignment, it operates efficiently from -40°C to 105°C, suitable for industrial and consumer electronics. The connector boasts post-plated terminals for environmental resistance, UL94V-0 flame-rated LCP housing, and glow wire compliance, ensuring safety, durability, and reliable electrical performance for high-demand power applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 1014270706LF Power Connector Specifications:
- Current Rating: Up to 23A per contact
- Wire Gauge Range: 16AWG to 12AWG
- Operating Temperature: -40°C to 105°C
- Housing Material: UL94V-0 rated LCP, halogen-free
- Housing Colors: Black & natural
- Contact Material: High-conductivity copper, tin and gold plating optional
- Crimping Terminal: High-conductivity copper, tin and gold plating
- Flammability: UL94V-0
- Insulation Resistance: 1000MQ min.
- Dielectric Voltage: 2200V AC
- Voltage Rating: 600V AC/DC
- Mating Force: Tin plated 6.8N, Gold plated 6.0N
- Unmating Force: Tin plated 6.5N, Gold plated 5.6N
- Durability: Tin plated 25 cycles, Gold plated 200 cycles
- Environmental Resistance: Salt spray, gas corrosion
- UL and TUV Approvals: UL 66906, TUV B171234414032
Buy the Amphenol Series Minitek Pwr: Power Connector 1014270706LF
Experience the reliability of the Amphenol Minitek Pwr 5.7 connector, supporting up to 23A per contact with versatile wire gauge compatibility. Designed for wire-to-board applications, it features polarized mating geometry to prevent mis-mating and withstands temperatures from -40°C to 105°C for use in industrial, commercial, and consumer electronics. Its UL94V-0 flame-rated LCP housing, corrosion-resistant post-plated terminals, and compliance with glow wire standards ensure maximum safety, durability, and excellent electrical performance for demanding power supply needs.
Get Amphenol Minitek Pwr 5.7 connector today—built for high current capacity, safety, and long-lasting durability.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 1014270706LF?
You can click on the BUY or RFQ button to purchase 1014270706LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 1014270706LF?
You can download the 1014270706LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 1014270706LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
