AMPHENOL COMMUNICATIONS SOLUTIONS 1014270710LF Power Connector
Amphenol's Minitek® Pwr 5.7 is a versatile power connector designed for high-current applications, supporting up to 23A per contact with a wire gauge range of 16AWG to 12AWG for wire-to-board use. It features polarized mating geometry to prevent mismating and is suitable for a wide temperature range from -40°C to 105°C. The terminals are post-plated to prevent environmental corrosion. The connector is glow wire compliant according to IEC 60335-1 standards for household appliances and made from UL94V-0 flammability rated LCP material. It is ideal for use in commercial, consumer electronics, and industrial applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 1014270710LF Power Connector Specifications:
- Rated current: Up to 23A per contact
- Wire gauge range: 16AWG to 12AWG
- Operating temperature: -40°C to 105°C
- Housing material: UL94V-0 rated LCP
- Terminal material: High-conductivity copper with optional tin and gold plating
- Mating force: 6.8N (tin plated), 6.0N (gold plated)
- Unmating force: 6.5N (tin plated), 5.6N (gold plated)
- Durability: 25 cycles (tin plated), 200 cycles (gold plated)
- Voltage rating: 600V AC/DC
- Contact resistance: 10mΩ max (tin plated), 5mΩ max (gold plated)
- Insulation resistance: 1000MΩ min.
- Dielectric withstand voltage: 2200V AC
- Flammability rating: UL94V-0
- Compliance: RoHS, IEC 60335-1
- Environmental protection: Designed to prevent corrosion, salt spray, and gas exposure
- Certifications: UL, TUV
- Packaging: Reels, tapes, and bags suitable for automated assembly

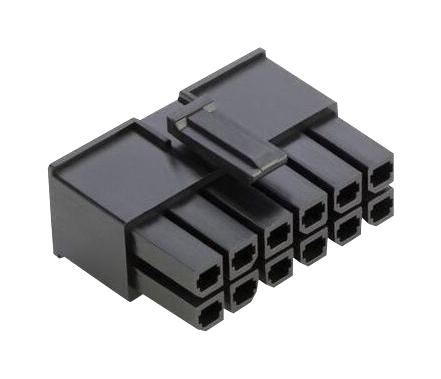

Buy the Amphenol Series Pwr 5.70 Power Connector: 1014270710LF
Experience reliable power transmission with Amphenol's Minitek Pwr 5.7 connector, supporting up to 23A per contact. Its polarized design prevents mismating, ensuring secure connections in demanding environments. Constructed from UL94V-0 rated LCP material, it withstands temperatures from -40°C to 105°C and resists environmental damage such as corrosion. With robust contact plating and high durability, this connector is ideal for industrial, consumer electronics, and appliance applications. Easy to install through automated systems, it guarantees safety while maintaining high performance.
Get Amphenol 1014270710LF today—built for high-current, reliable, and durable power connections for industrial and consumer electronics.
