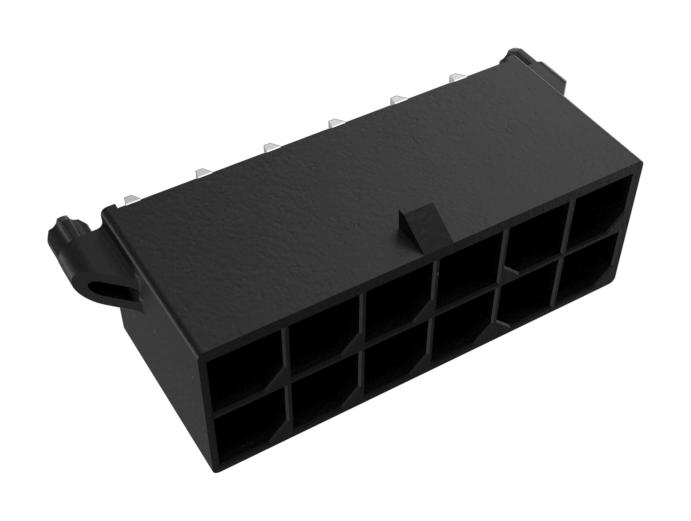

AMPHENOL COMMUNICATIONS SOLUTIONS 1014270804000LF Power Connector System
The Minitek Pwr 5.70mm connector system offers a high-current, wire-to-board solution rated up to 23A per contact. Constructed with high-conductivity copper and UL94V-0 rated materials, it features polarized mating geometry, secure terminal retention, and a broad operating temperature range from -40°C to 120°C. The connectors, available in dual-row configurations, are Halogen-free, RoHS compliant, and suitable for household appliances, electronics, and industrial applications, ensuring reliable electrical performance, environmental resistance, and ease of assembly in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 1014270804000LF Power Connector System Specifications:
- Current Rating: Up to 23A per contact
- Voltage Rating: 600V AC/DC
- Operating Temperature Range: -40°C to 120°C (gold plated), -40°C to 105°C (tin plated)
- Material: High-conductivity copper, UL94V-0 rated LCP and nylon 66
- Contact Resistance: Tin plated 10mQ, gold plated 5mQ
- Mating Force: Tin plated 6.8N, gold plated 6.0N
- Unmating Force: Tin plated 6.5N, gold plated 5.6N
- Durability: Tin plated 25 cycles, gold plated 200 cycles
- Dielectric Voltage: 2200V AC
- Insulation Resistance: 1000MQ minimum
- Package: Receptacles in bags, headers in tray/tape and reel, terminals in reel
Buy the Amphenol Series Minitek Pwr: 5.70mm Power Connector 1014270804000LF
Buy the Amphenol Series Minitek Pwr 5.70mm power connector today and benefit from a reliable, high-current solution suitable for diverse applications. Designed with polarized geometry and high-conductivity materials, these connectors support up to 23A per contact, ensuring excellent electrical performance and high durability. They are UL94V-0 rated, RoHS compliant, and operate effectively within a wide temperature range from -40°C to 120°C. Perfect for household appliances, industrial electronics, and communication equipment, these connectors guarantee secure mating, environmental resistance, and easy installation for professional projects.
Order your Amphenol Series Minitek Pwr 5.70mm connector today and ensure reliable, high-current connections for your power applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 1014270804000LF?
You can click on the BUY or RFQ button to purchase 1014270804000LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 1014270804000LF?
You can download the 1014270804000LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 1014270804000LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
