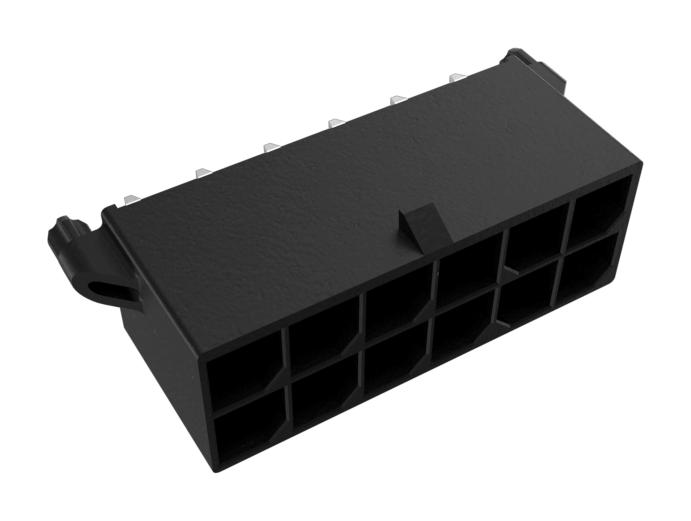

AMPHENOL COMMUNICATIONS SOLUTIONS 1014270806000LF Power Connector System
The Minitek Pwr 5.70 Connector System is a high-current power solution for wire-to-board applications, rated up to 23A per contact. Constructed with durable materials such as high-conductivity copper and UL94V-0 rated LCP and nylon 66 housings, it offers reliable performance across a wide temperature range from -40°C to 120°C. Featuring polarized mating geometry and secure locking mechanisms, it prevents mis-mating and environmental damage, making it ideal for household appliances, industrial, and telecommunications equipment. Certifications include UL and TUV approvals, supporting safety and sustainability.
AMPHENOL COMMUNICATIONS SOLUTIONS 1014270806000LF Power Connector System Specifications:
- Current Rating: Up to 23A per contact
- Voltage Rating: 600V AC/DC
- Material: High-conductivity copper, UL94V-0 LCP and nylon 66
- Operating Temperature: -40°C to 120°C (gold plated), -40°C to 105°C (tin plated)
- Mating Force: Tin plated 6.8N, gold plated 6.0N per circuit
- Unmating Force: Tin plated 6.5N, gold plated 5.6N
- Durability: Tin plated 25 cycles, gold plated 200 cycles
- Insulation Resistance: 1000MQ min.
- Contact Resistance: Tin plated 10mΩ, gold plated 5mΩ
- Dielectric Voltage: 2200V AC
- Housing Material: UL94V-0 LCP and nylon 66
- Packaging: Tray/tape and reel for PCB headers, bags, reels for terminals
- Environmental Compliance: RoHS, halogen-free, UL and TUV approvals
Buy the Buy Amphenol Minitek Pwr 5.70 Connector Part Number 1014270806000 Online
Purchase the Amphenol Minitek Pwr 5.70 Connector System online today for a durable and reliable high-current solution. Designed for wire-to-board applications, this system supports up to 23A per contact and features polarized mating for error prevention. Constructed with UL94V-0 rated materials, it offers excellent performance across a wide temperature range from -40°C to 120°C. Suitable for household, industrial, and telecom equipment, it ensures safety, durability, and compliance with international standards—making it an ideal choice for your power connectivity needs.
Buy Amphenol Minitek Pwr 5.70 connector now and experience reliable high-current connections with secure polarization and broad temperature operation.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 1014270806000LF?
You can click on the BUY or RFQ button to purchase 1014270806000LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 1014270806000LF?
You can download the 1014270806000LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 1014270806000LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
