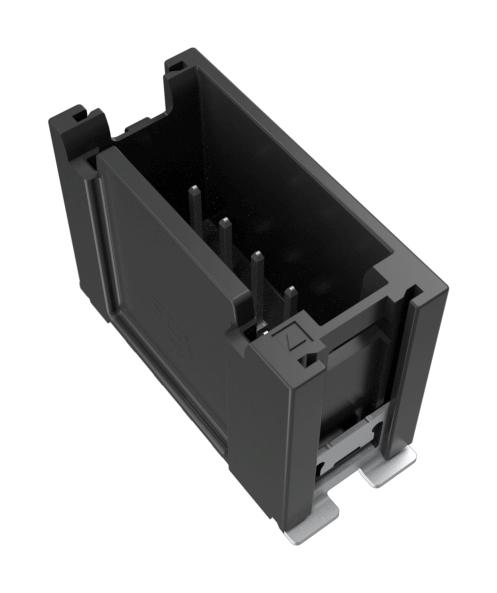

AMPHENOL COMMUNICATIONS SOLUTIONS 10143578108KLF Crimp-to-Wire Connector
The Minitek MicroSpace™ crimp-to-wire connector platform offers a compact, robust, and versatile solution designed to meet LV214 Severity-2 standards. Available in 1.80mm, 1.50mm, and 1.27mm pitch sizes, it features single and double row configurations with top and side latch options. The connector incorporates keying to prevent mismatching, terminal positioning assurance (TPA), and connector positioning assurance (CPA) for reliable mating and locking. Its design withstands harsh environments, uses compatible crimping tooling up to 22 AWG, and provides high vibration resistance with a locking force over 75N. Each contact supports a current of up to 4A, making it ideal for high-reliability applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 10143578108KLF Crimp-to-Wire Connector Specifications:
- Pitch sizes: 1.27mm, 1.50mm, 1.80mm
- Configuration: Single and double row, top and side latch
- Material: Contact made of high current alloy with optional Tin and Gold/GXT plating
- Housing: High-temperature thermoplastic UL94V-0
- Crimping Terminal: High current alloy with optional Tin and Gold/GXT plating
- Operating Temperature: -40°C to +130°C
- Terminal Insertion Force: <3N, low insertion force terminal available upon request
- Terminal Retention Force: >50N
- Mating Cycles: 20 for Sn, 100 for Au/GXT
- Contact Resistance: <30mΩ
- Insulation Resistance: >100MΩ
- Voltage Rating: 48V
- Current Rating: 4A
- Dielectric Withstanding Voltage: 500VAC
- Temperature Rise: 30°C max
- Locking strength: >75N
- Vibration resistance: 4N normal force for vibration resistance
Buy the Buy Amphenol ICC MiniSpace Crimp-To-Wire Connector Part Number 10143578108KLF Online
Experience the convenience of purchasing the Amphenol ICC MiniSpace Crimp-to-Wire Connector online. Designed for high-performance applications in harsh environments, this connector features keying to prevent mismatching, terminal positioning assurance, and high vibration resistance. Its versatile configurations include three pitch sizes—1.27mm, 1.50mm, and 1.80mm—with options for single or double row setups. The connector supports up to 4A current, with easy crimping using compatible tooling, and guarantees reliable mating, locking, and durability for electronics and industrial systems.
Buy Amphenol ICC MiniSpace 10143578108KLF now and experience unmatched reliability and high vibration resistance for harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10143578108KLF?
You can click on the BUY or RFQ button to purchase 10143578108KLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10143578108KLF?
You can download the 10143578108KLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10143578108KLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
