AMPHENOL COMMUNICATIONS SOLUTIONS 101461532600RLF High-Speed Connector
The Minitek MicroSpeed 1.00mm Board-to-Board Connector is designed for high-speed data transfer applications supporting data rates up to 25Gbps. It features a shielded design for superior EMC performance, dual-beam contacts for high reliability, and a blind-mating feature suitable for industrial environments. Made from high-temperature thermoplastic LCP with gold and PdNi over nickel plating for mating areas, and tin plating for termination areas, it ensures durability and precise connections. Ideal for data communication, industrial automation, medical technology, and computing industries, it withstands vibrations, shocks, and temperature extremes, making it a versatile, robust connector.
AMPHENOL COMMUNICATIONS SOLUTIONS 101461532600RLF High-Speed Connector Specifications:
- Material: High-temperature thermoplastic LCP, black (UL94V-0), Copper alloy terminals and shield base
- Plating: Gold and PdNi over nickel on mating area, Tin over nickel on termination area
- Electrical Performance: Current rating 1A per contact, 10A per shield, Voltage rating 500V(AC RMS), LLCR 50mΩ max.
- Signal Integrity: Data rate up to 25Gbps, Crosstalk < 0.5%, Differential impedance 100Ω, Single-ended impedance 50Ω
- Mechanical: Durability 500 cycles, Mating force maximum, Un-mating force 1N, Gauge retention force minimum 0.1N, Coplanarity 0.1mm max.
- Environmental: Operating temperature -55°C to 125°C, Vibration 20g sinusoidal, Shock 50g half sine, Industrial durability 10 days
- Certifications: ULE66906, GS-12-1446
- Packaging: Tape & reel

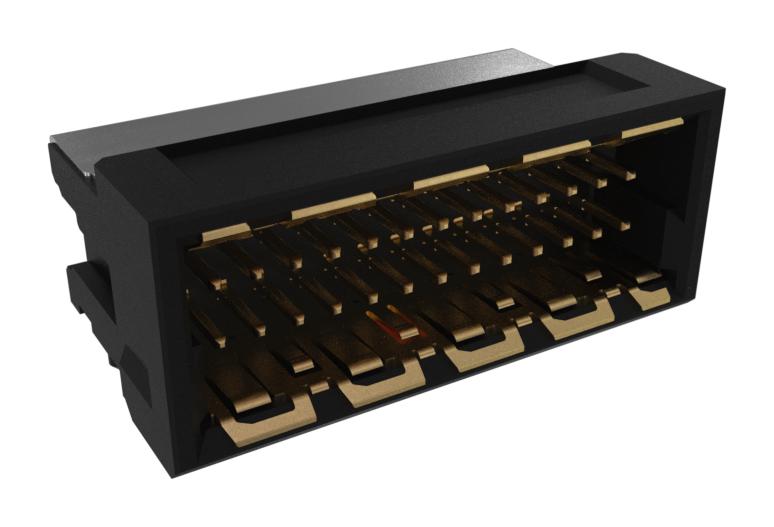

Buy the Amphenol 101461532600RLF – Reliable high-speed Board-to-Board Connector for Industrial Applications
Order the Amphenol Minitek MicroSpeed 1.00mm Board-to-Board Connector online today to experience high-performance, reliable connections with up to 25Gbps data transfer. This shielded, dual-beam contact connector features blind-mating, supports multiple PCB orientations, and is ideal for industrial automation, computing, medical, and communication systems. Made from durable materials with gold and PdNi plating for superior contact reliability, it withstands vibration, shocks, and temperature extremes, ensuring long-term performance and EMC compliance for demanding industrial and technological applications.
Get Amphenol 101461532600RLF today—built for precision, high-speed data transfer, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 101461532600RLF?
You can click on the BUY or RFQ button to purchase 101461532600RLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 101461532600RLF?
You can download the 101461532600RLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 101461532600RLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
