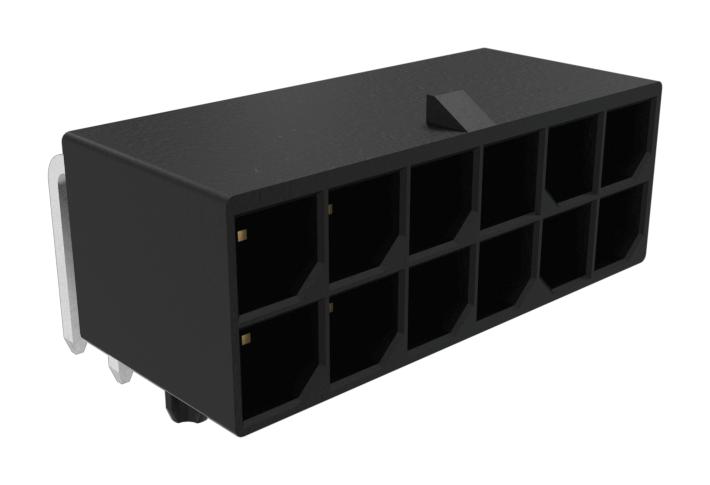

AMPHENOL COMMUNICATIONS SOLUTIONS 1014699710100LF Power Connector System
The AMPHENOL Minitek Pwr 5.70 connector system provides a comprehensive solution for power applications, designed for wire-to-board connectivity. It boasts a high current rating of up to 23A per contact and accommodates wire gauges from 16 to 12 AWG. The polarized mating geometry prevents mis-mating, while the wide operating temperature range (-40°C to 105°C) ensures suitability for diverse environments. The scoop-proof housing protects terminals from damage, and the system is available in configurations from 2 to 12 circuits. Applications include rack-mount servers, blade servers, and medical equipment.
AMPHENOL COMMUNICATIONS SOLUTIONS 1014699710100LF Power Connector System Specifications:
- Current Rating: Up to 23A/contact
- Operating Temperature Range: -40°C to 105°C (Tin Plated), -40°C to 120°C (Gold Plated)
- Voltage Rating: 600V AC (RMS)/DC
- Contact Resistance: 10m Ω (Tin plated), 5m Ω (Gold plating) max.
- Low Level Contact Resistance: 2m Ω max. (Initial)
- Insulation Resistance: 1000M Ω min.
- Dielectric Withstand Voltage: 2200V AC
- Mating Force: 6.8N (Tin plated), 6.0N per circuit max. (Gold plated)
- Unmating Force: 6.5N (Tin plated), 5.6N per circuit max. (Gold plated)
- Durability: 25 cycles (Tin plated), 200 cycles (Gold plated)
- Material (Board Connector): High-conductivity copper with optional tin and gold plating
- Material (Header Housing): LCP, black & natural, UL 94V-0
- Material (Receptacle Housing): Nylon 66, black & natural, UL 94V-0 & UL 94V-2
- Material (Crimping Terminal): High-conductivity copper with optional tin and gold plating
- UL Approval: E66906
- TUV Approval: B171234414032
- Amphenol Product Specification: GS-12-1405
- Amphenol Packaging Specification: GS-14-2595
- Amphenol Application Specification: GS-20-0687
- Flammability Rating: UL94V-0
- Halogen-free: Yes
- RoHS Compliant: Yes
- Wire Gauge Range: 16 – 12AWG
Buy the 10146997-10100LF AMPHENOL COMMUNICATIONS SOLUTIONS Power Connector System | myMectronic
Securely purchase the AMPHENOL COMMUNICATIONS SOLUTIONS 10146997-10100LF Power Connector System online for reliable power connectivity.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 1014699710100LF?
You can click on the BUY or RFQ button to purchase 1014699710100LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 1014699710100LF?
You can download the 1014699710100LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 1014699710100LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
