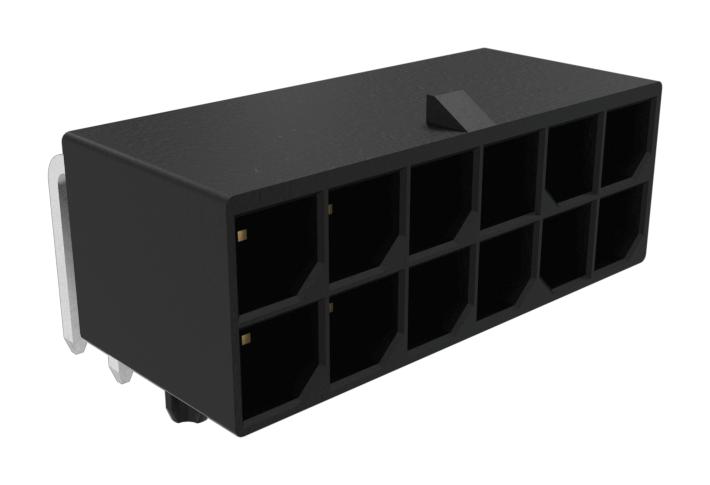

AMPHENOL COMMUNICATIONS SOLUTIONS 1014699712100LF Power Connector System
The AMPHENOL Minitek Pwr 5.70 connector system is designed for power applications requiring high current capacity and reliability. This versatile system offers a current rating of up to 23A per contact and supports wire gauges from 16 to 12AWG. Its polarized mating geometry prevents mis-mating, while the wide operating temperature range (-40°C to 105°C) ensures suitability for diverse environments. The scoop-proof housing protects terminals from damage, and the system is available in configurations for vertical and right-angle through-hole applications. It finds use in applications such as 1U rack boxes, blade servers, medical equipment, and industrial control systems.
AMPHENOL COMMUNICATIONS SOLUTIONS 1014699712100LF Power Connector System Specifications:
- Current Rating: Up to 23A/contact
- Operating Temperature Range: -40°C to 105°C (Gold Plated), -40°C to 120°C (Tin Plated)
- Voltage Rating: 600V AC (RMS)/DC
- Contact Resistance: Tin plated: 10m Ω, Gold plating: 5m Ω max.
- Mating Force: Tin plated: 6.8N, Gold plated: 6.0N per circuit max.
- Unmating Force: Tin plated: 6.5N, Gold plated: 5.6N per circuit max.
- Durability: Tin plated: 25 cycles, Gold plated: 200 cycles
- Low Level Contact Resistance: 2m Ω max. (Initial)
- Insulation Resistance: 1000M Ω min.
- Dielectric Withstand Voltage: 2200V AC
- Material (Board Connector): High-conductivity copper with optional tin and gold plating
- Material (Header Housing): LCP, black & natural, UL 94V-0
- Material (Receptacle Housing): Nylon 66, black & natural, UL 94V-0 & UL 94V-2
- Material (Crimping Terminal): High-conductivity copper with optional tin and gold plating
- Approvals: UL approval: E66906, TUV approval: B171234414032
- Flammability Rating: UL94V-0
- Halogen-free: Yes
- Packaging (PCB Header): Tray/tape and reel
- Packaging (Receptacle Housing): Bag
- Packaging (Crimping Terminal): Reel
Buy the 10146997-12100LF AMPHENOL COMMUNICATIONS SOLUTIONS Power Connector System | myMectronic
Securely purchase the AMPHENOL 10146997-12100LF connector system online for reliable power connections.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 1014699712100LF?
You can click on the BUY or RFQ button to purchase 1014699712100LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 1014699712100LF?
You can download the 1014699712100LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 1014699712100LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
