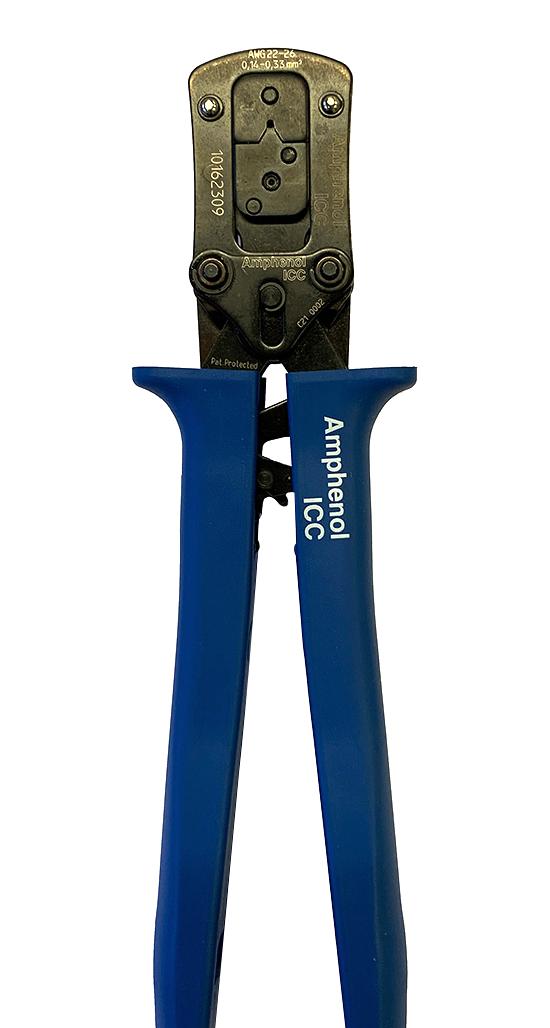

AMPHENOL COMMUNICATIONS SOLUTIONS 10162310001 Professional Crimping Tool
The professional crimping hand tool is designed for precise termination of Mini PV® wire-to-board, wire-to-wire, and board-to-board connections on 2.54mm pitch, suitable for prototype and small production runs. It features an ergonomic soft handle for comfort, a straight action crimping mechanism, and precisely manufactured profiles for reliable electrical contact. Compatible with AWG 18-20, 22-26, and 28-32 wire gauges, it ensures consistent, high-quality crimps with up to 1,000 mating cycles. The tool’s burnished surface and RoHS compliance make it durable and environmentally friendly, ideal for professional assembly work.
AMPHENOL COMMUNICATIONS SOLUTIONS 10162310001 Professional Crimping Tool Specifications:
- Length: approx. 65mm (tool head), 210mm (basic), 255mm (complete assembly)
- Width: approx. 37mm (tool head), 65mm (assembly)
- Depth: approx. 29mm (tool head), 26.5mm - 29mm (assembly)
- Weight: approx. 95g (AWG 22-26), 100g (AWG 18-20), 330g (assembly), 440g (complete)
- Application range: AWG 18-20, 22-26, 28-32
- Crimp height: 0.5-1.0 mm (AWG 18-20), 0.14-0.33 mm (AWG 22-26), 0.03-0.08 mm (AWG 28-32)
- Crimp width: 1.02-1.07 mm (AWG 18-20), 0.81-0.86 mm (AWG 22-26), 0.66-0.71 mm (AWG 28-32)
- Material: Burnished surface, soft ergonomic grips, RoHS compliant
- Design includes flat contact positioning with flap locator, straight action mechanism
Buy the Amphenol Series Crimping Tool: 10162310001
Order the professional crimping tool online today to ensure precise, reliable, and consistent terminations for Mini PV® connectors. Designed for small production and prototyping, this ergonomic tool features exact profiles, burnished surfaces, and a straight action mechanism to deliver high-quality crimps across multiple wire gauges. Its soft grips provide comfortable handling, and its compliance with RoHS standards makes it safe and eco-friendly. Improve your assembly efficiency with this durable, easy-to-use crimping solution from Amphenol.
Buy Amphenol 10162310001 now and experience unmatched reliability and performance for professional wire crimping tasks.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10162310001?
You can click on the BUY or RFQ button to purchase 10162310001 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10162310001?
You can download the 10162310001 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10162310001?
AMPHENOL COMMUNICATIONS SOLUTIONS
