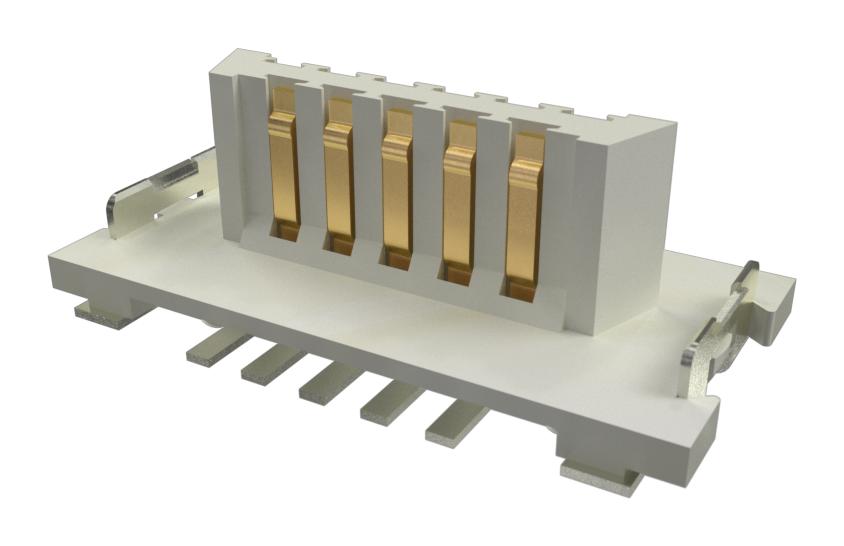

AMPHENOL COMMUNICATIONS SOLUTIONS 101625821134111LF Conan Lite Connector
The Conan® Lite 1.00mm connector offers a secure, high-speed, and reliable board-to-board connection suitable for various applications, supporting data rates of 8Gb/s. Its robust construction includes a high-temperature thermoplastic housing with a gold-flash contact plating, ensuring durability for at least 30 mating cycles. Designed to support auto reflow processes, it features polarized housings and a metal hold-down to prevent mismating and reversed mating, making it ideal for electronic control units, LED reading lights, and servers operating within a temperature range of -55°C to +125°C. The connector supports high current ratings of 1.0A per contact and offers quick, audible mating confirmation with a click sound.
AMPHENOL COMMUNICATIONS SOLUTIONS 101625821134111LF Conan Lite Connector Specifications:
- Housing Material: High temperature thermoplastic LCP
- Terminal Base Material: Copper alloy
- Plating: Gold flash on contact area
- Current Rating: 1.0A continuous
- Contact Resistance: 30mΩ max.
- Withstanding Voltage: 500V AC RMS 60Hz
- Durability: 30 cycles
- Mating Force: 125g per contact max.
- Un-mating Force: 35g per contact min.
- Operating Temperature Range: -55°C to +125°C
- Product Specification: GS-12-0977
- Packaging: Tape and Reel
- Supported Data Rate: Up to 8Gb/s
Buy the Buy Amphenol Conan Lite 1.00mm Part Number 101625821134111LF Online
Purchase the Conan Lite 1.00mm connector from online distributors today to enhance your electronic assemblies with a high-speed, reliable, and durable board-to-board connection solution. This connector supports data rates up to 8Gb/s, is designed for auto reflow, and offers an audible click for quick mating verification. Its rugged thermoplastic housing and gold-plash contacts ensure longevity and high performance, even in temperature extremes from -55°C to +125°C. Ideal for control units, LED lighting, and servers, this connector guarantees dependable operation across diverse applications.
Order your Amphenol Series101625821134111LF Conan Lite 1.00mm connector today and ensure secure, high-speed connections for your electronic projects.
