AMPHENOL COMMUNICATIONS SOLUTIONS 2002111100016T4LF Board-to-Board Connector
The Minitek127 standard board-to-board connector offers a 1.27mm pitch modular system suitable for industrial control, medical, data, and communication applications. Made from halogen-free high-temperature resin, with copper alloy contacts finished with gold or tin, it supports 4 to 100 positions with incremental steps. The connector features reliable electrical performance with contact resistance of 30 milliohms, insulation resistance of 1000 Megohms, and a current rating of 1.0 amp per contact. It is environmentally resilient, functioning from -55°C to 125°C, with certifications including UL and GS-12-629 specifications. Available in various series with surface mount and through-hole options, designed for durability up to 100 mating cycles, and packaged in tape and reel or tube options.
AMPHENOL COMMUNICATIONS SOLUTIONS 2002111100016T4LF Board-to-Board Connector Specifications:
- Pitch: 1.27mm
- Positions: 4 to 100, incremental steps
- Material: High-temperature halogen-free resin (housing), Copper alloy (contacts)
- Finish: Gold flash, 10u”, 15u” GXT, 30u” GXT over nickel (contacts), Matte tin over nickel (solder area)
- Electrical: Contact resistance 30 milliohms, Insulation resistance 1000 Megohms, Current rating 1.0 amp/contact, Voltage rating 125VAC
- Temperature range: -55°C to +125°C
- Durability: 100 mating cycles
- Mechanical: Max mating force 2.2N/contact, Min un-mating force 0.2N/contact
- Certifications: UL E66906, GS-12-629
- Packaging: Tape and reel, tube

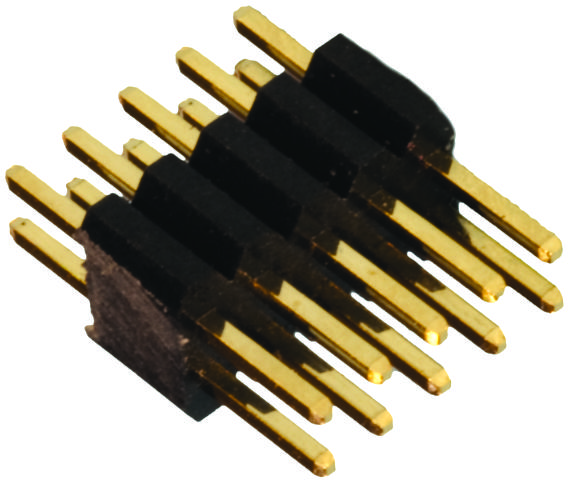

Buy the FCI Series 127 Connector: 2002111100016T4LF
Order the FCI 2002111100016T4LF board-to-board connector today for secure and efficient PCB interconnections. Its 1.27mm pitch, high durability, and halogen-free materials ensure long-lasting performance. Perfectly suited for industrial controls, medical devices, and communication equipment, this connector supports up to 100 positions, features gold or tin finishes, and withstands temperatures from -55°C to 125°C. Packaged in tape and reel or tube, it guarantees quick, reliable installation and compliance with UL standards. Enhance your electronic assembly with this high-quality connector now.
Get FCI 2002111100016T4LF today—built for high reliability and environmental resilience in industrial and medical applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 2002111100016T4LF?
You can click on the BUY or RFQ button to purchase 2002111100016T4LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 2002111100016T4LF?
You can download the 2002111100016T4LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 2002111100016T4LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
