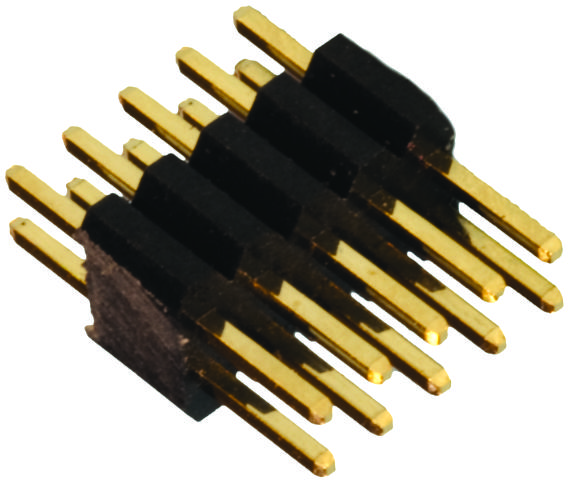

AMPHENOL COMMUNICATIONS SOLUTIONS 2002111100018T4LF Board-to-Board Connector
The Minitek127 standard board-to-board connector offers a reliable, space-saving solution with a 1.27mm pitch suitable for industrial controls, medical, data, and communication applications. Crafted from halogen-free high-temperature resin, its copper alloy contacts are finished with gold, GXT, or matte tin. Rated for 125VAC and 1.0A per contact, with a temperature range from -55°C to +125°C, it supports up to 100 mating cycles. Available in various configurations including unshrouded or shrouded headers for surface mount or through-hole mounting, its durable and environmentally resistant design ensures dependable PCB connections.
AMPHENOL COMMUNICATIONS SOLUTIONS 2002111100018T4LF Board-to-Board Connector Specifications:
- Material: High-temperature halogen-free resin housing
- Contact Material: Copper alloy with gold or GXT plating
- Contact Resistance: 30 milliohms
- Insulation Resistance: Minimum 1000 Megohms
- Current Rating: 1.0 amp per contact
- Voltage Rating: 125VAC
- Temperature Range: -55°C to +125°C
- Mechanical Durability: 100 mating cycles
- Mating Force: 2.2N maximum/contact
- Un-mating Force: 0.2N minimum/contact
- Packaging: Tape and reel or tube
- Applicable Series: 20021111, 20021221, 20021321
- Environmental Resistance: 95% humidity for 96 hours, Mixed Flowing Gas Class IIA
Buy the Buy FCI Minitek127 Standard Board-to-Board Connector Part Number 2002111100018T4LF Online
Discover the reliable FCI Minitek127 standard board-to-board connector, engineered for space efficiency, high durability, and environmental resistance. With a 1.27mm pitch, it fits applications in industrial controls, medical, and data communication systems. Constructed from halogen-free high-temperature resin with copper alloy contacts finished in gold, GXT, or matte tin, it supports up to 100 mating cycles and withstands -55°C to +125°C. Available in various configurations for surface mount or through-hole mounting, ensuring easy integration and robust PCB connections for demanding environments.
Get FCI Minitek127 Part Number 2002111100018T4LF today—designed for reliable PCB connections with high temperature resistance and long lifespan.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 2002111100018T4LF?
You can click on the BUY or RFQ button to purchase 2002111100018T4LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 2002111100018T4LF?
You can download the 2002111100018T4LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 2002111100018T4LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
