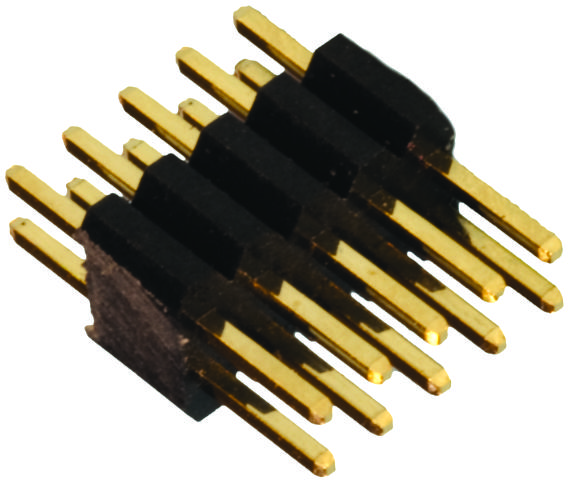

AMPHENOL COMMUNICATIONS SOLUTIONS 2002111100020T4LF Board-to-Board Connector
The 20021111-00020T4LF is a 20-position, two-row, through-hole board-to-board connector with gold-plated contacts, offering a 1.27mm pitch and a mating length of 3.05mm. It features a 2.3mm tail length, standard reverse coding, and is designed for industrial applications, providing reliable electrical performance with a current rating of 1.0 amp per contact and a voltage rating of 125VAC. The connector is made from high-temperature halogen-free resin with copper alloy contacts, finished with gold flash and matte tin for durability and excellent corrosion resistance. It is packaged in tape and reel, suitable for automated assembly, and complies with UL certification.
AMPHENOL COMMUNICATIONS SOLUTIONS 2002111100020T4LF Board-to-Board Connector Specifications:
- Contact Material: Copper Alloy
- Contact Area Finish: Gold flash, 10u” Gold
- Housing Material: High-temperature halogen-free resin
- Tail Length: 2.3mm
- Mating Length: 3.05mm
- Pin Pitch: 1.27mm
- Number of Positions: 20
- Current Rating: 1.0 amp/contact
- Voltage Rating: 125VAC
- Operating Temperature Range: -55°C to +125°C
- Packaging: Tape and reel
- Certification: UL listed file no. E66906
- Durability: 100 mating cycles
- Un-mating Force: 0.2N minimum/contact
- Mating Force: 2.2N maximum/contact
- Insulation Resistance: 1000 Megohms minimum
- Environmental: Humidity 95% relative for 96 hours, mixed flowing gas class IIA
Buy the Fci Series 20021111 20-Position Board-to-Board Connector: 2002111100020T4LF
Enhance your industrial electronics with the Fci 2002111100020T4LF 20-position, 1.27mm pitch board-to-board connector. Featuring gold-plated copper contacts, high durability, and UL certification, this connector ensures reliable connections in demanding environments. It supports up to 100 mating cycles, with a current rating of 1.0 amp per contact and operating temperatures from -55°C to +125°C. Packaged in tape and reel for easy automated assembly, it’s the ideal choice for space-saving, high-performance PCB connections.
Buy Fci 2002111100020T4LF now and experience unmatched reliability and high-performance industrial connectivity solutions.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 2002111100020T4LF?
You can click on the BUY or RFQ button to purchase 2002111100020T4LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 2002111100020T4LF?
You can download the 2002111100020T4LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 2002111100020T4LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
