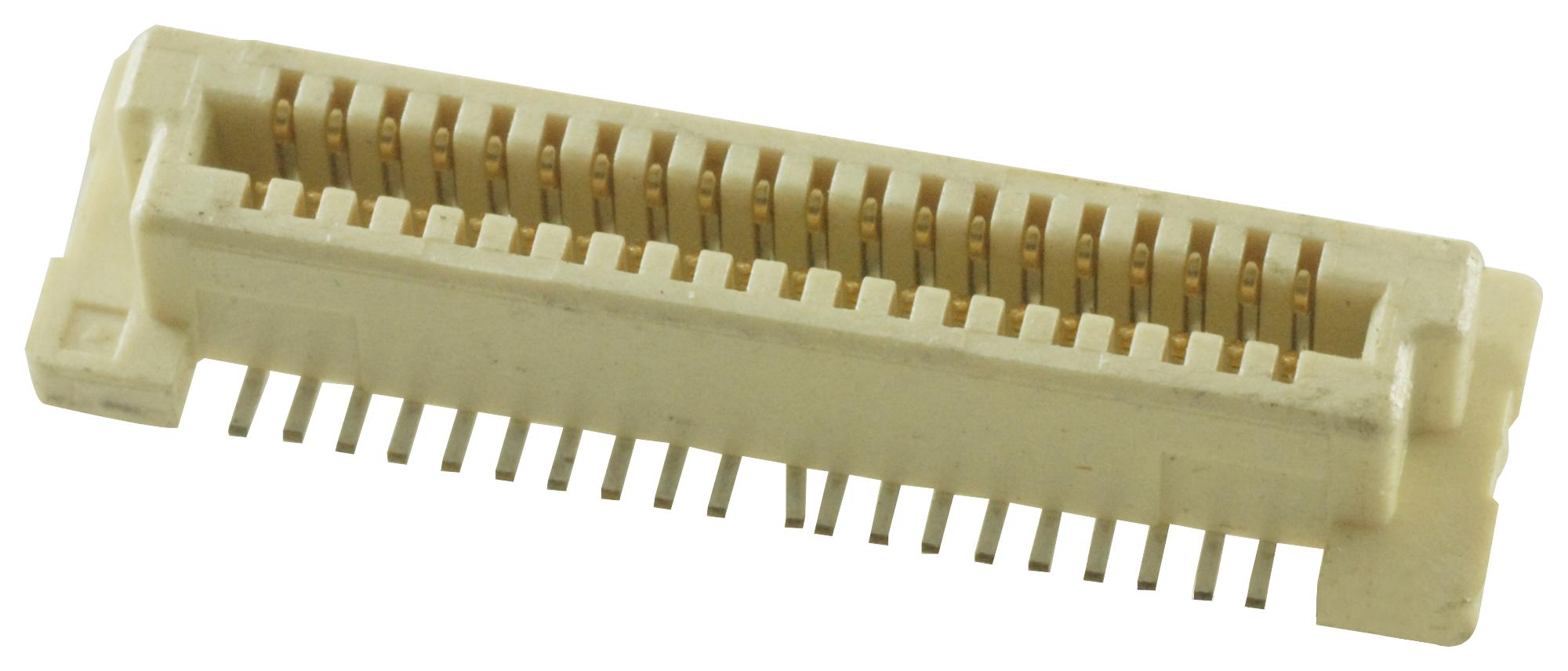

AMPHENOL COMMUNICATIONS SOLUTIONS 61082041400LF High-Speed Mezzanine Connector
The BergStak 0.8mm mezzanine connector offers a high-density, high-speed board-to-board connection suitable for industrial, server, and communication applications. Designed with a compact 0.8mm contact pitch, it supports up to 12Gb/s data transfer, with a variety of sizes and stack heights from 5mm to 20mm. Made with UL94V-0 materials, it features gold or gold flash finishes, scoop-proof housing, and is compliant with RoHS standards. Its durable design supports up to 100 mating cycles, ensuring reliable performance in demanding environments, making it ideal for high-speed data, networking, and industrial systems.
AMPHENOL COMMUNICATIONS SOLUTIONS 61082041400LF High-Speed Mezzanine Connector Specifications:
- Housing Material: Glass filled LCP, UL94V-0
- Contact Base Metal: Copper Alloy (Receptacle), Brass (Plug)
- Contact Finish: Gold or Gold flash over Palladium-nickel over Nickel
- Solder Finish: Matte pure Tin over Nickel
- Mating Cycles: 100
- Mating Force: 0.9N max./contact
- Unmating Force: 0.1N min./contact
- Insulation Resistance: Initial 10MΩ min., After Test 100MΩ min.
- Current Rating: 0.8A/contact
- Contact Resistance: Initial 30mΩ max., After Test 50mΩ max.
- Voltage Rating: 100VAC
- Impedance Range: 81 to 108Ω @ 50 ps edge
- Return Loss: < 10dB up to 5GHz
- Insertion Loss: < 1.5dB up to 5GHz
- Temperature Range: -40°C to +125°C
- RoHS compliant, Lead-free, UL certified (File no. LR46923)
Buy the Amphenol 61082041400LF – Reliable High-Speed Connectors for Industrial Applications
Enhance your electronic systems with the high-speed, high-density BergStak 0.8mm mezzanine connector. Designed for demanding industrial, server, and communication applications, it supports data transfer rates up to 12Gb/s. Its compact design conserves PCB space while ensuring robust, reliable connections. Made with UL94V-0 materials and RoHS compliant finishes, it withstands harsh environments and multiple mating cycles. Whether for high-speed data, industrial automation, or networking, this connector provides exceptional performance, durability, and ease of assembly suitable for diverse high-tech applications across various industries.
Buy Amphenol 61082041400LF now and experience unmatched reliability and high-speed performance for industrial, server, and communication systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 61082041400LF?
You can click on the BUY or RFQ button to purchase 61082041400LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 61082041400LF?
You can download the 61082041400LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 61082041400LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
