AMPHENOL COMMUNICATIONS SOLUTIONS 61082123402LF Mezzanine Connector
The BergStak 0.8mm Mezzanine Connector is a high-density, board-to-board solution designed for high-speed data applications. Constructed with UL94V-0 rated glass-filled LCP housing and copper alloy contacts with gold or palladium-nickel finishes, it supports up to 12Gb/s and is compatible with PCIe Gen 2/3 and SAS 3.0 standards. Suitable for parallel stacking in high-performance servers, industrial equipment, and test systems, it offers durability of 100 mating cycles, low mating and unmating forces, and environmental resilience, including temperature ratings from -40°C to +125°C.
AMPHENOL COMMUNICATIONS SOLUTIONS 61082123402LF Mezzanine Connector Specifications:
- Housing Material: Glass filled LCP, UL94V-0
- Contact Material: Copper Alloy, High Spring
- Contact Finish: Gold or Palladium-nickel over Nickel
- Solder Area Finish: Matte pure Tin over Nickel
- Contact Resistance: Initial 30mΩ max., After Test 50mΩ max.
- Durability: 100 mating cycles
- Mating Force: 0.9N max./contact
- Unmating Force: 0.1N min./contact
- Voltage Rating: 100VAC
- Current Rating: 0.8A/contact
- Impedance Range: 81 to 108Ω at 50 ps edge
- Return Loss: < 10dB up to 5GHz
- Insertion Loss: < 1.5dB up to 5GHz
- Temperature Range: -40°C to +125°C
- High Temperature Life: 105°C for 1000 hours
- Environmental Resistance: 90-95% humidity for 96 hours, Gas Class 2a

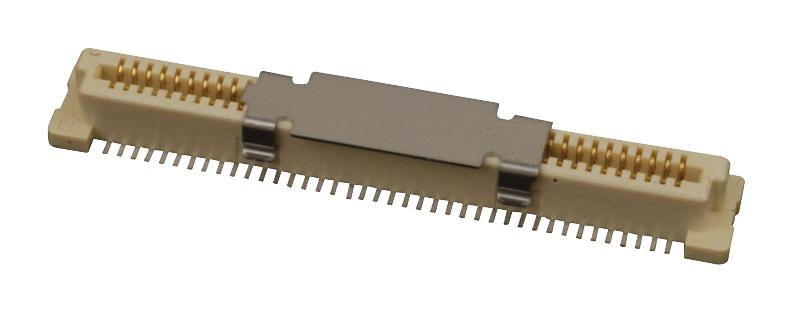

Buy the Buy Amphenol BergStak 0.8mm Mezzanine Connector Part Number 61082123402LF Online
Purchase the BergStak 0.8mm Mezzanine Connector online and benefit from its high-speed support up to 12Gb/s, exceptional durability, and versatile sizes for your high-density applications. Designed with UL94V-0 rated housing and precision gold or palladium-nickel finishes, it ensures reliable connections in servers, industrial systems, and testing environments. With a robust construction supporting 100 mating cycles, low mating/unmating forces, and wide temperature tolerance, this connector guarantees top performance and safety. Shop now for fast delivery and trusted quality for your electronic assembly and networking needs.
Order your Amphenol BergStak 0.8mm Mezzanine Connector today and ensure high-speed, high-density performance in your critical electronic projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 61082123402LF?
You can click on the BUY or RFQ button to purchase 61082123402LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 61082123402LF?
You can download the 61082123402LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 61082123402LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
