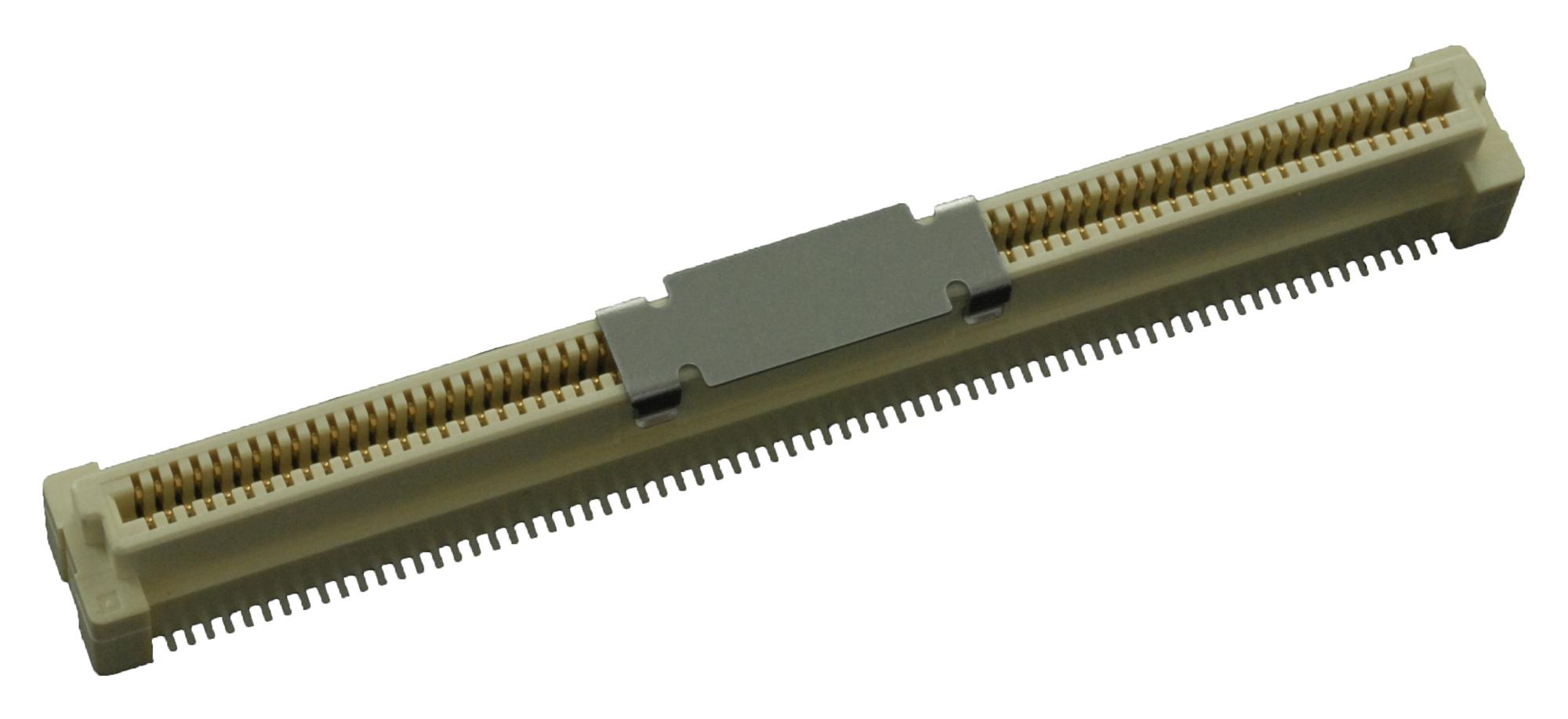

AMPHENOL COMMUNICATIONS SOLUTIONS 61082142402LF Mezzanine Connector
The BergStak 0.8mm Mezzanine Connector by Amphenol-ICC is a high-performance, high-density, board-to-board connector designed for reliable data transmission at speeds up to 12Gb/s. With a versatile range of 40 to 200 positions and stacking heights from 5mm to 20mm, it supports PCIe Gen 2/3 and SAS 3.0 standards. Made from UL94V-0 rated materials and incorporating scoop-proof housings, this connector ensures durability, safety, and excellent signal integrity. Suitable for industrial, server, networking, and test applications, it offers superior mechanical and electrical performance in a compact design.
AMPHENOL COMMUNICATIONS SOLUTIONS 61082142402LF Mezzanine Connector Specifications:
- Housing: Glass filled LCP, UL94V-0
- Contact Base Metal: Copper Alloy, High Spring
- Plug: Brass
- Contact Finish: Gold or Gold flash over Palladium-nickel over Nickel
- Solder Finish: Matte pure Tin over Nickel
- Durability: 100 mating cycles
- Mating Force: 0.9N max./contact
- Unmating Force: 0.1N min./contact
- Insulation Resistance: Initial 10MΩ min., After test 100MΩ min.
- Current Rating: 0.8A/contact
- Contact Resistance: Initial 30mΩ max., After test 50mΩ max.
- Voltage Rating: 100VAC
- Impedance Range: 81 to 108Ω @ 50 ps edge
- Return Loss: <10dB up to 5GHz
- Insertion Loss: <1.5dB up to 5GHz
- Temperature Range: -40°C to +125°C
- Environmental: Humidity 90-95% RH for 96 hours, High Temperature Life 105°C for 1000 hours
- Certifications: UL 66906, File no. LR46923
Buy the Amphenol Series BergStak Board-to-Board Connector: 61082142402LF
Upgrade your high-speed interconnection solutions with the BergStak 0.8mm Mezzanine Connector from Amphenol. Designed for high-density applications, it supports up to 12Gb/s data transfer rates, ensuring reliable and efficient board-to-board connections. With a versatile range of sizes from 40 to 200 positions and stack heights from 5mm to 20mm, this connector is perfect for industrial, server, and networking equipment. Made from UL94V-0 materials, it features scoop-proof housings and gold finishes for long-lasting performance and signal integrity, making it an ideal choice for demanding environments.
Buy Amphenol BergStak 0.8mm Mezzanine Connector 61082142402LF now and experience unmatched high-speed reliability and high-density performance for your industrial and networking needs.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 61082142402LF?
You can click on the BUY or RFQ button to purchase 61082142402LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 61082142402LF?
You can download the 61082142402LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 61082142402LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
