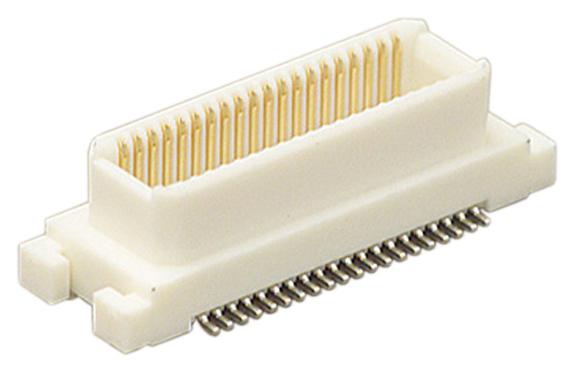

AMPHENOL COMMUNICATIONS SOLUTIONS 61083141402LF 0.8mm Mezzanine Connector
Amphenol’s BergStak 0.8mm mezzanine connector provides a flexible solution for high-speed and high-density parallel board-to-board connections. This connector system features 16 PCB stack heights and is available in sizes up to 200 positions. Its housing and terminal profile guarantee support of up to 12Gb/s, making it suitable for applications like IP phones, routers, servers, and industrial equipment. The connector incorporates features like scoop-proof housings, multiple plating options, and PCB locator pegs for ease of assembly and reliable performance. It is RoHS compliant and lead-free, meeting environmental and safety requirements.
AMPHENOL COMMUNICATIONS SOLUTIONS 61083141402LF 0.8mm Mezzanine Connector Specifications:
- Housing: Glass filled LCP, UL94V-0
- Contact Base Metal: Copper Alloy
- Receptacle: Copper Alloy, High Spring
- Plug: Brass
- Contact Area Finish: Gold or Gold flash over Palladium-nickel (GXT) over Nickel
- Solder Area Finish: Matte pure Tin over Nickel
- Temperature Range: -40°C to +125°C
- High Temperature Life: 105°C ± 5°C for 1000 hours
- Humidity: 90-95% relative humidity for 96 hours
- Mixed Flowing Gas Class: 2a (30 GXT)
- Durability: 100 mating cycles
- Mating Force: 0.9N max./contact
- Unmating Force: 0.1N min./contact
- Insulation Resistance: 1000M Ω min. (Initial), 100M Ω min. (After Test)
- Current Rating: 0.8A/contact
- Contact Resistance: 30m Ω max. (Initial), 50m Ω max. (After Test)
- Voltage Rating: 100VAC
- Impedance Range: 81 to 108 Ω @ 50 ps edge (10-90%)
- Return Loss: < 10dB up to 5GHz
- Insertion Loss: < 1.5dB up to 5GHz
- NEXT: ≤ 4.0% for a 50 ps edge (10-90%)
- FEXT: ≤ 2.4% for a 50 ps edge (10-90%)
- Product Specification: GS-12-547
- Test Report: DGS-29-010
- Stack Height: 5mm to 20mm in 1mm increments
- Position Sizes: 40 to 200 positions in 20 position increments
- Contact Pitch: 0.8mm
